Power: 12V - 3W
Quantity: 2
03_23
03_24

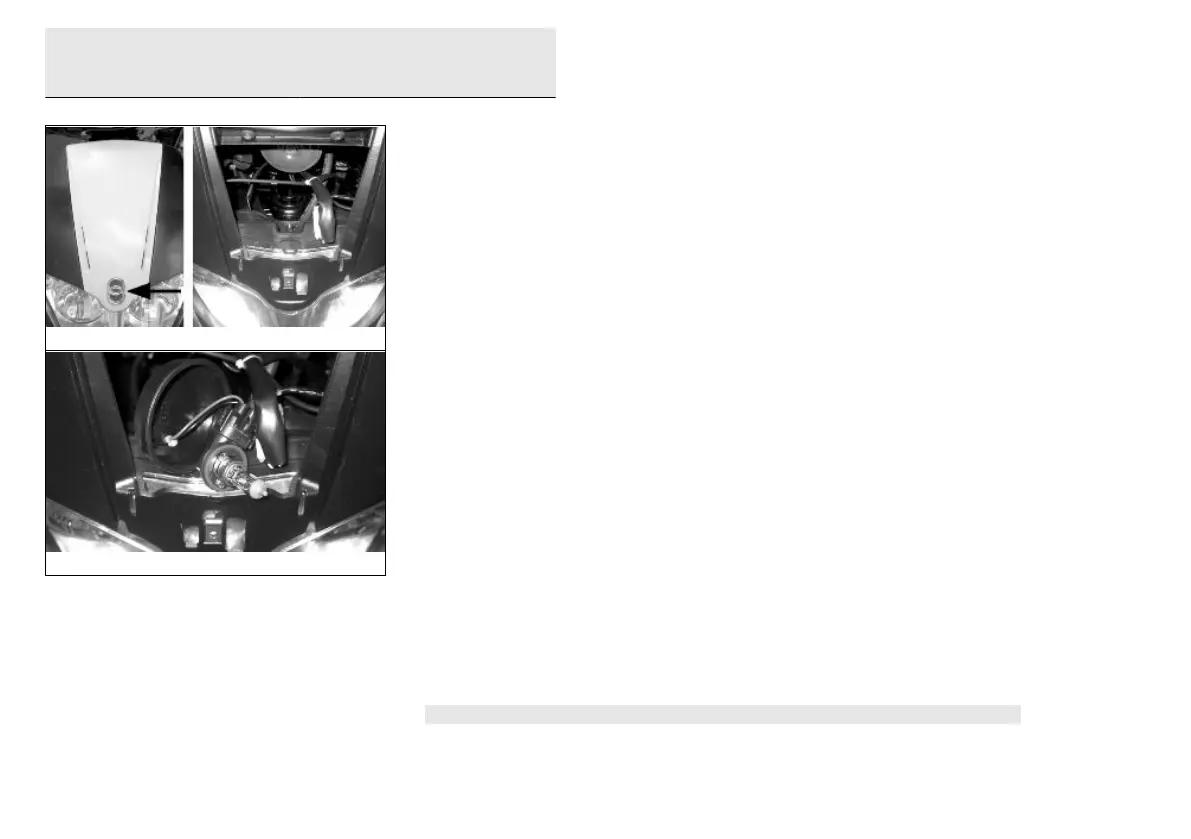

Front light group (03_23, 03_24, 03_25)
In order to reach the headlamp bulb remove the snap-on Gilera shield by inserting the
blade of a small screwdriver in the corresponding lateral notch, paying attention not
to scratch the paint. Then loosen the screw underneath and lift up the front shield
centre cover.
Then follow this procedure:
High and low beam bulb:
1. remove the rear cover and take the bulb holder; then turn it up around 30º;
2. disconnect the bulb connector and change the bulb.
Tail lights:
1. remove the rubber bulb socket from its housing; then remove the bulb and
replace it.
Headlight adjustment (03_26, 03_27)
Proceed as follows:
1. Place the vehicle in running order and with the tyres inflated to the prescribed pres-
sure, on a flat surface 10 m away from a white screen situated in a shaded area,
making sure that the longitudinal axis of the scooter is perpendicular to the screen;
2. Turn on the headlight and check that the borderline of the projected light beam on
the screen is not lower than 9/10 of the distance from the ground to the centre of
vehicle headlamp and higher than 7/10;
3. Otherwise, regulate the headlamp by adjusting the screw "A", which can be reached
after having removed the Piaggio shield cover.
N.B.
THE ABOVE PROCEDURE COMPLIES WITH THE EUROPEAN STANDARDS RE-
GARDING MAXIMUM AND MINIMUM HEIGHT OF LIGHT BEAMS. REFER TO THE
51
