Gira Plus - Commissioning; Appendix; Technical data

DALI gateway Plus

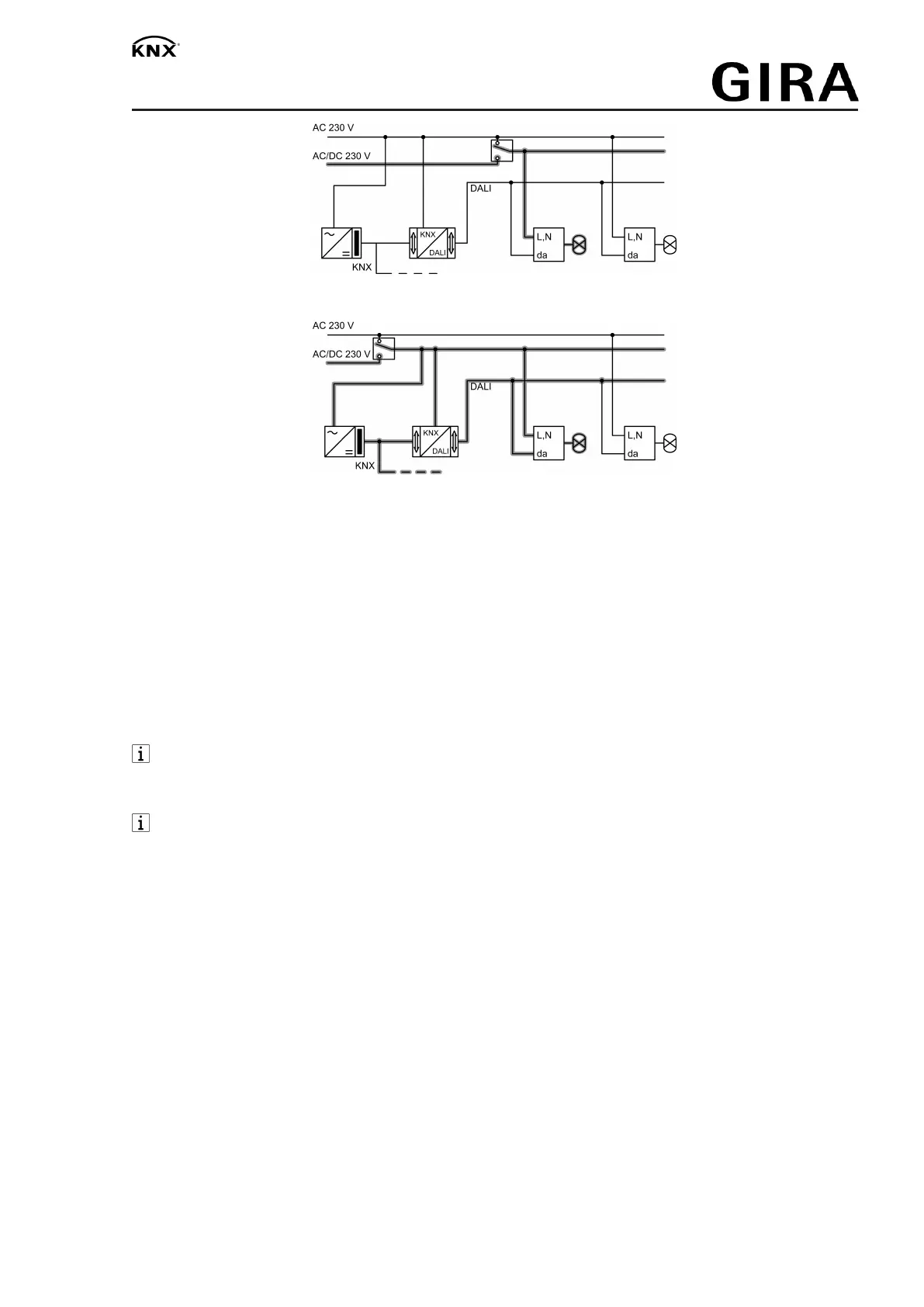

Figure3: Emergency luminaires supplied through a central safety supply
Figure4: Emergency luminaires, KNX system and DALI gateway supplied through a central
safety supply
4.2 Commissioning
Load physical address and application program
￭ Switch on mains voltage.
￭ Switch on the bus voltage.
￭ Press the programming button.
The programming LED lights up.
￭ Load physical address and application program using the ETS.
￭ Commission DALI system using commissioning software.
For more detailed information on commissioning of the DALI system, see the technical
product information for this device.
￭ Load application program with the ETS.
No programming is possible if no mains voltage is connected.
5 Appendix
5.1 Technical data
Supply
Rated voltage AC 110 ... 240 V ~
Mains frequency 50 / 60 Hz
Rated voltage DC 110 ... 240 V
Power loss max. 3 W
Ambient conditions
Ambient temperature -5 ... +45 °C
Storage/transport temperature -25 ... +70 °C
DALI
Rated voltage DALI DC 16 V (typ.)
Output current DALI typ. 128 mA, max. 250 mA for short periods
5 / 7
