Giraffe AW30 - Bracket Installation

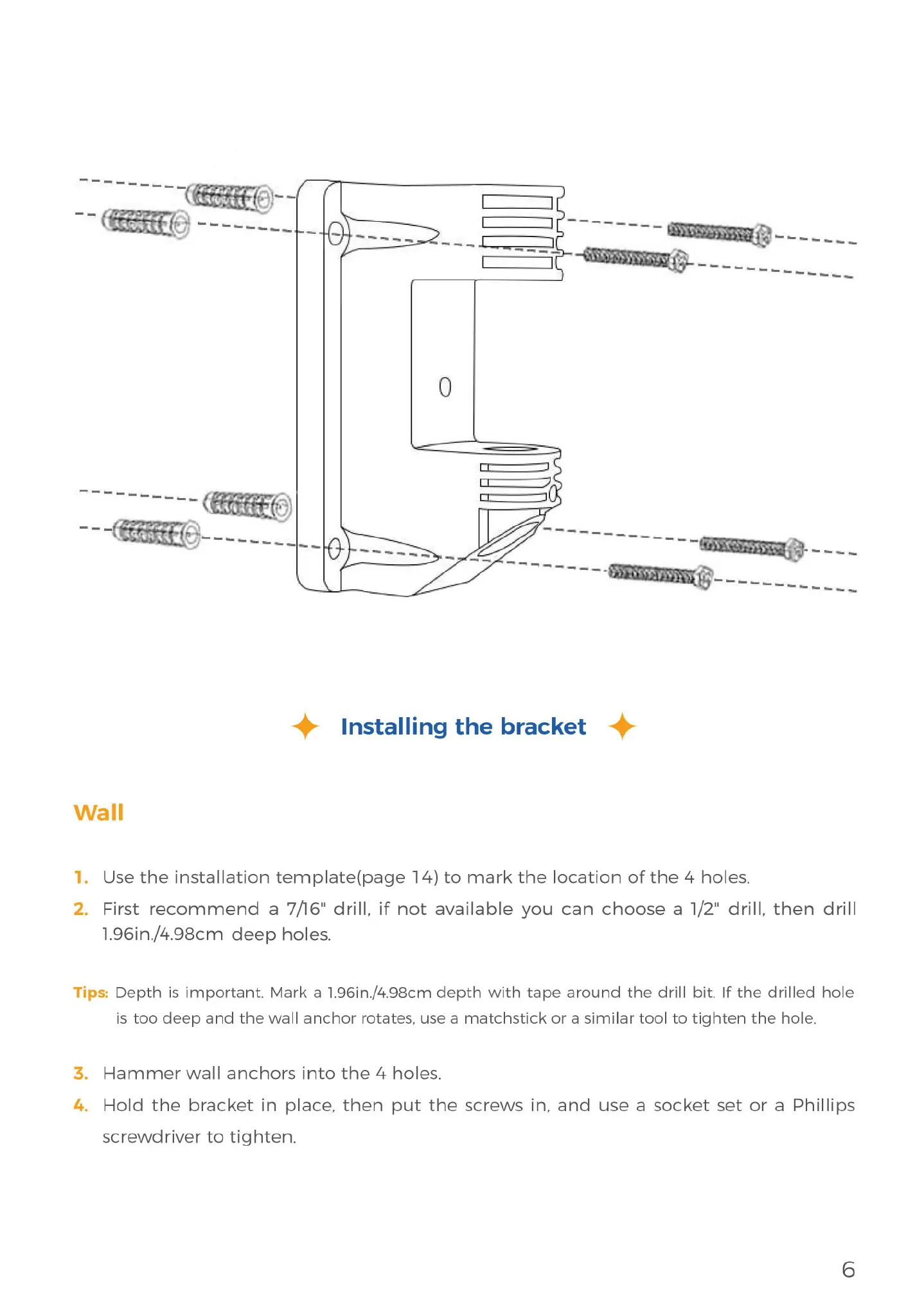

4 Installing the bracket 4
Wall
1. Use the installation template(page 14) to mark the location of the 4 holes.
2. First recommend a 7/16" drill, if not available you can choose a 1/2" drill, then drill
1.96in./4.98cm deep holes.
Tips: Depth is important. Mark a 1.96in./4.98cm depth with tape around the drill bit. If the drilled hole
is too deep and the wall anchor rotates, use a matchstick or a similar tool to tighten the hole.
3. Hammer wall anchors into the 4 holes.
4. Hold the bracket in place, then put the screws in, and use a socket set or a Phillips
screwdriver to tighten.
