6
Installing the reel
Use the installation template (page 14) to mark the location of the 4 holes.
Use a 9/16" drill bit to drill 2.1 in. deep holes.
Hammer the wall anchors into the 4 holes.

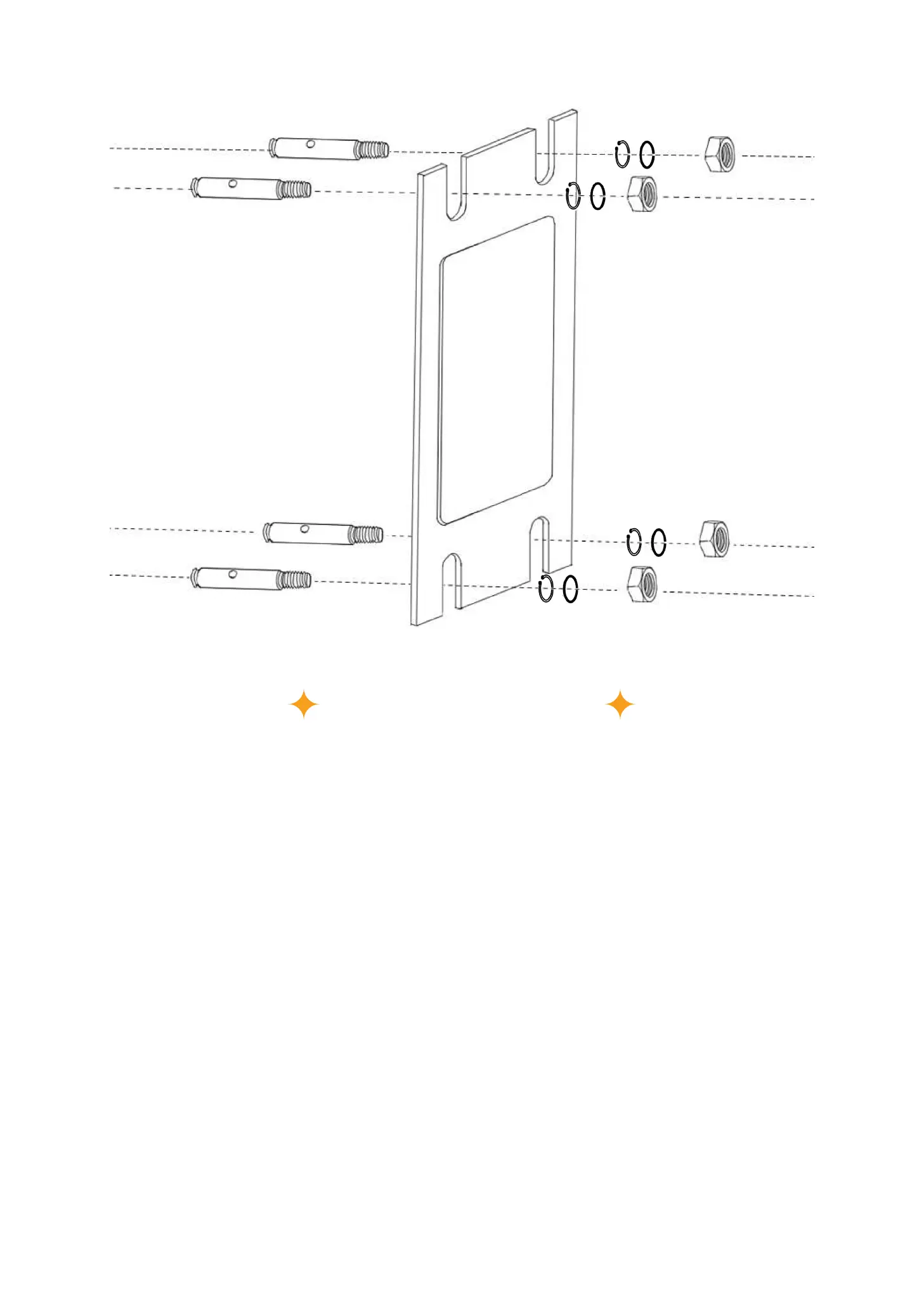

Hang the reel on the anchors, put on the washers and screw on the nuts, then use a
socket set or a Phillips screwdriver to tighten.
Pull out the hose and lock it.
Remove the nut and washer on the guide arm base.
Rotate the arm to the desired position, and re-tighten the washer and nut.
1.
2.
3.
4.
5.
6.
7.
Tips: Depth is important. Mark a 2.1 in. depth with tape around the drill bit. If the hole is too deep and
the wall anchor is rotating, use a matchstick or similar tool to tighten the hole.
If desired, follow steps 5 to 7 to re-position the guide arm.
Your hose reel is now installed and ready to use!
