ADJUSTMENT TO FACTORY SETTINGS:
AUX - AUXILIARY OUTPUT (50mA maximum)
OFF Internal sounder and auxiliary output disabled.
STD Internal sounder and auxiliary output active and will emit a
warning tone on each detection when the tone button is selected.
10-30 The auxiliary output time after last detection.
seconds The internal sounder is as the STD
LIGHT ON TIME IN MINUTES
1 to 24 The length of the light on time after last detection during darkness.
minutes The red detector indicators will stay on for this time after the last
detection day and night.
PULSE COUNT
Walk test Select this symbol to assist in location/alignment of the detector
beams during daylight installations.When the detector beams are
activated the external lights will stay on for a period of 6 seconds.
1, 2 or 3 After completing the ‘walk test’ function, set the pulse count to
the required level. The pulse count is the number of detector
beams that have to be crossed to trigger the system.
1 will give a fast response.
2 gives better immunity with good response.
3 gives highest immunity to false activations in poor
environments but is less responsive.
When connecting the unit to the electrical supply or when the supply is interrupted,
the indicators will flash for one minute whilst the system settles. Pressing any
button during this time will start normal operation.
AUX
TIME SECS
LIGHT ON
TIME MINS
PULSE
COUNT
30
STD
OFF
10
20
24
1
3
5
10
3
2
1

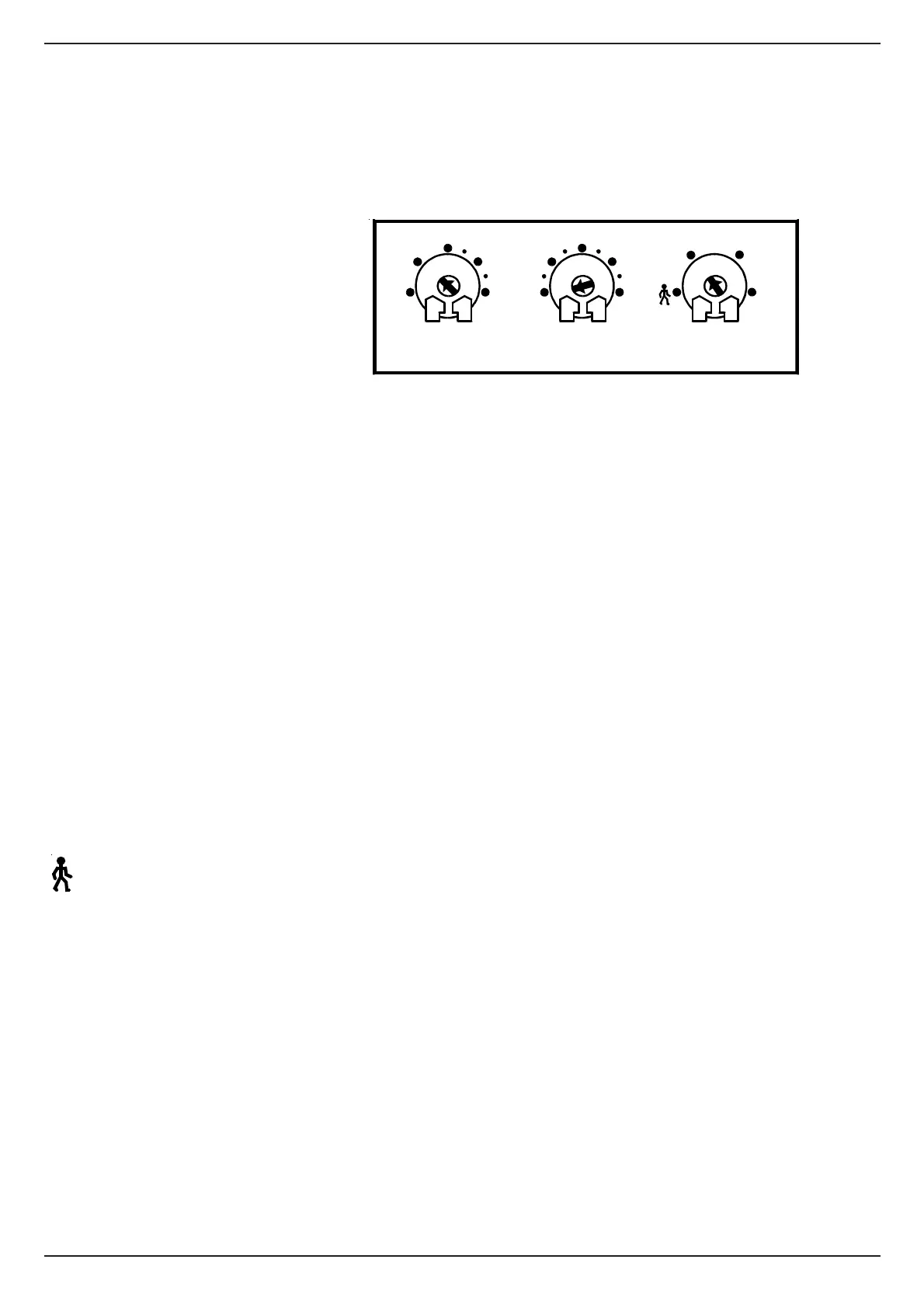

Internal adjustments panel
The factory settings are shown.
- 3 -
