Large hole
Large hole
I

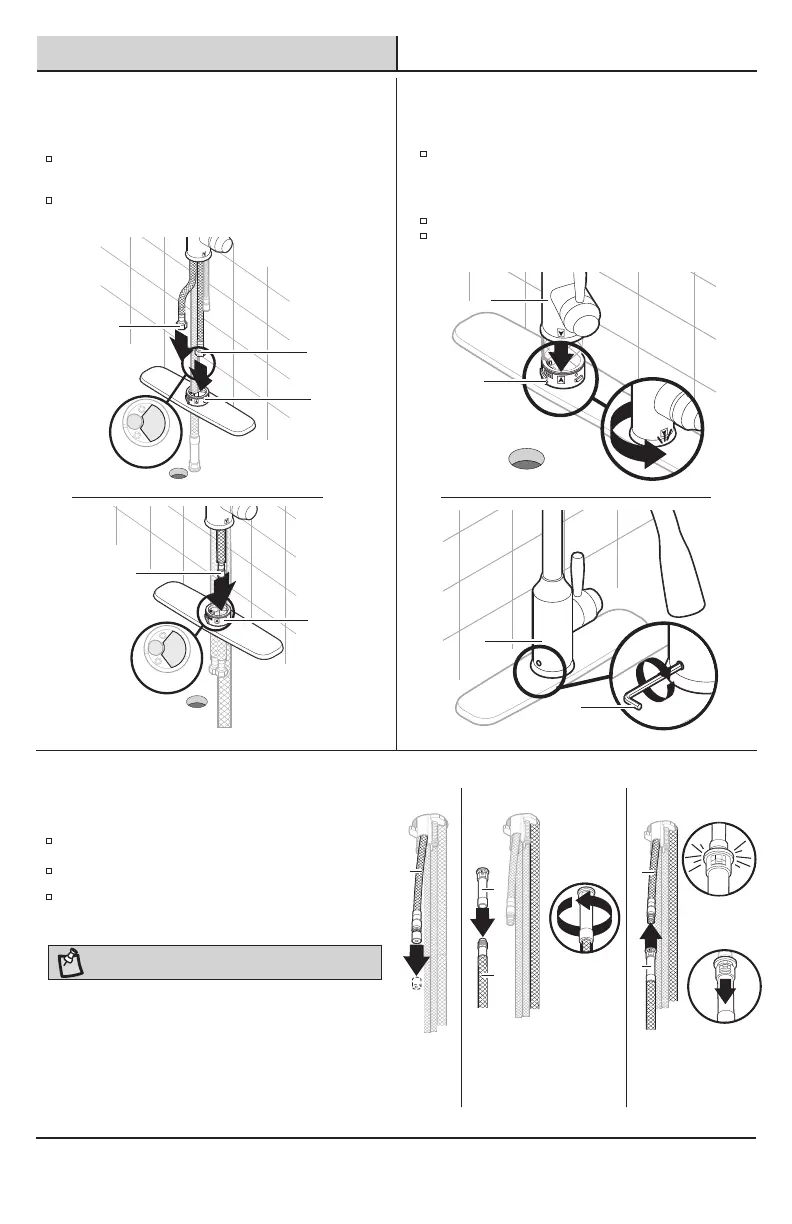

Inserting the supply lines and
quick connect tube
Attaching the quick connector
Securing the faucet body
Insert the supply lines (F) one by one through the
large hole of the base (I).
Remove the cap from the quick connect tube (D).
Reattach the quick connector (G) to the hose (K).
Attach the quick connector (G) to the quick connect
tube (D). Pull down the quick connector (G) to
ensure it is secure.
Align the arrow on the faucet body (A) with the
arrow on the base (I). Attach the faucet body (A)
to the base (I) and turn counterclockwise until
it locks.
After installation, remove the arrow sticker.
Secure the faucet body (A) by tightening the set
screw with the provided hex wrench (BB).
Insert the quick connect tube (D) through the large
hole of the base (I).
Installation (continued)
7
9
8
I
A
A
BB
D
D
G
G
K
I
D
I
F
F
NOTE: For removal, see “Quick Connector Removal.”
7 HOMEDEPOT.com
Please contact 1-855-434-5224 for further assistance.
