Page 8
1.0 DESIGN
1.2 TECHNICAL DATA

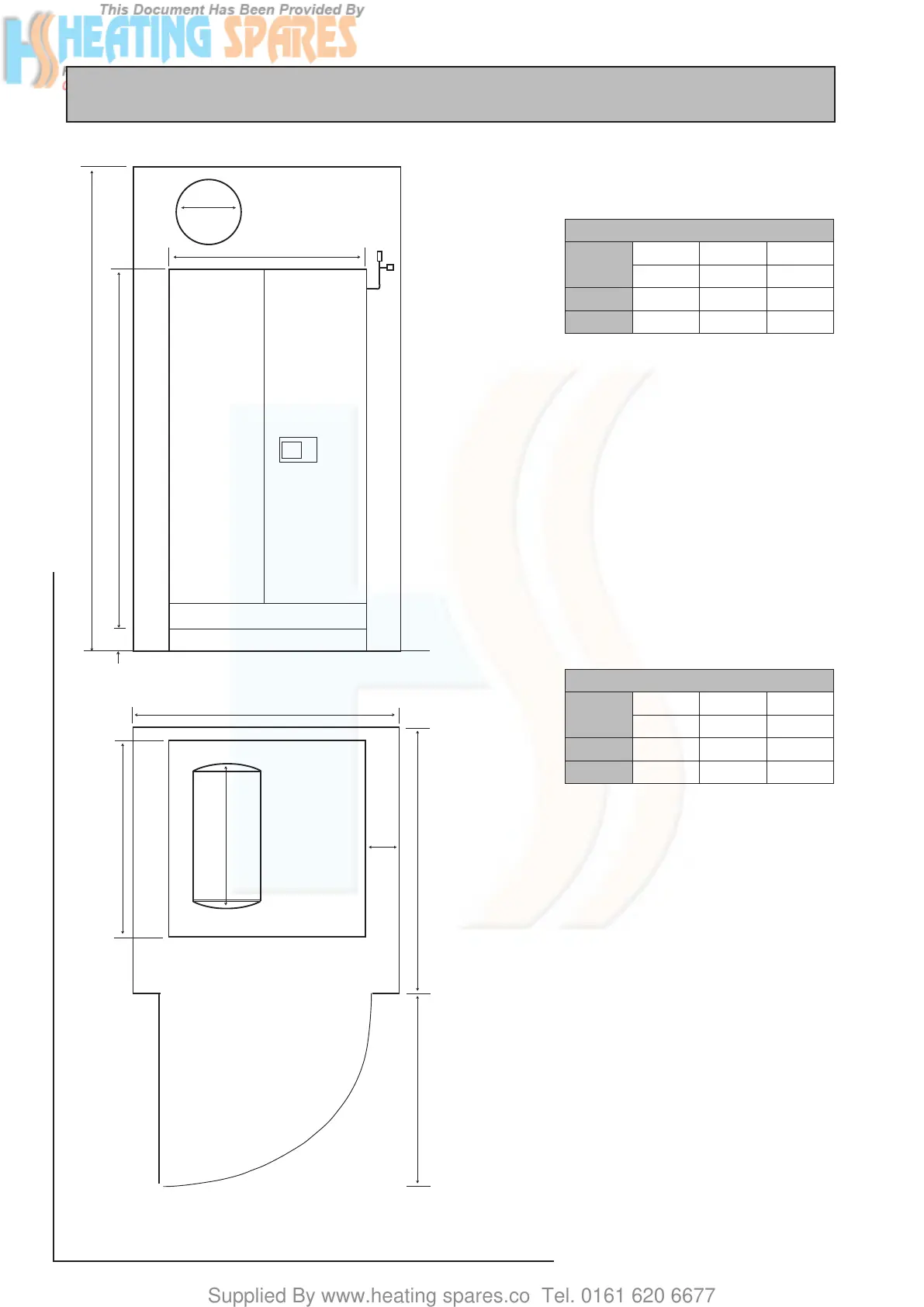

The following table of minimum cupboard
dimensions only allow the minimum space
required for the appliance (including the
expansion vessel) and any extra space required
for shelving etc in the case of airing cupboards
etc must be added.
If the expansion vessel is being fitted above
the appliance it will need to be fitted first and
access arrangements made for maintenance
etc if the minimum cupboard dimensions are
used.
EM 2000
A
D
B
320 dia.*
550
mm
C
F
150
mm
E
600mm minimum
maintenance access
650mm minimum clear opening
if directly in front of appliance
40 ltr.expansion
vessel
* 25 ltr. vessel for
EM 170 model =
290mm dia. x 500mm
100mm
Note: The above cupboard height assumes
the use of the installation pallet and the 40
litre expansion vessel.
APPLIANCE DIMENSIONS
Model
Height Width Depth
A B C
EM 170 1350mm 595mm 595mm
EM 270 1910mm 595mm 595mm
MINIMUM CUPBOARD DIMENSIONS
Model
Height Width Depth
A B C
EM 170 1800mm 750mm 600mm
EM 270 2400mm 750mm 600mm
