Glide 4 Series User Manual

4
SECTION 2. STANDARD FEATURES

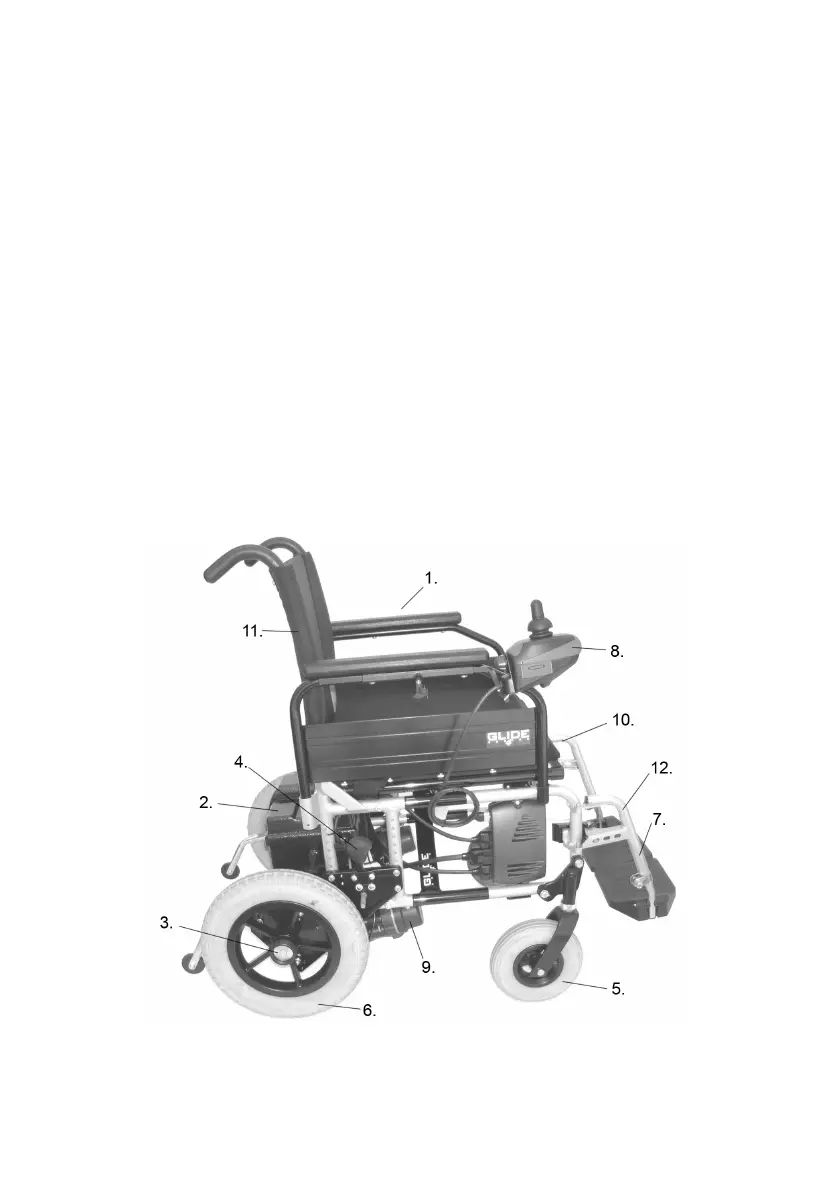

The illustration below (Fig 1. below) is a list of the Series 4 standard features.
1. Standard Non - Adjustable Height Armrests
2. Battery Pack (with built in lifting strap)
3. Drive Clutch
4. Attendant Brakes
5. Pneumatic Front Castor Wheels – 200mm x 50mm (8”x1¼” )
6. Pneumatic Rear Wheels – 203mm x 62mm (12 ½” x 2 ¼”)
7. Swing Away Footrests
8. Dynamic Shark Controller
9. High Torque Motors
10. Folding Frame
11. Sail Cloth Upholstery
12. Velcro Calf Strap
Maximum Safe Slope = 12 Degrees moving
Maximum Obstacle Climbing = 48mm forward 36mm backwards with anti-tip
wheels fitted
FIGURE 1. STANDARD FEATURES

Glide 4 Series Specifications

General

Frame Material	Aluminum
Weight Capacity	300 lbs
Rear Wheel Size	24"
Front Wheel Size	8"
Foldable	Yes
Frame Type	Folding
Footrest Style	Swing-away
Seat Width	16", 18", 20"
Seat Depth	16"
Armrest Style	Desk-length
