Global Skyware 9013 - Grounding Procedure

INSTALLATION POLE MOUNT
Note: Grounding wire and hardware are not supplied for pole
mount, trimast wall mount or non penetrang roof mount. Installa-
on mount and associated hardware are not supplied.
A grounding screw is provided on the azel as indicated.
Ground Wire
with Ring Clip
1/4”
Drilling
Screw
Ground
Lug
Tooth
Washer
TRIMAST WALL MOUNT
Tooth
Washer
Ground Wire
with Ring Clip
Ground
Lug
M6
Lock
Nut
M6 x 16 mm
Hex Head
Screw
TO GROUNDING
ROD
Non Penetrang
Roof Mount
M6 x 16 mm
Self Tapping
Screw
Ground
Lug
Ground Wire
with Ring Clip
Tooth Washer
Ground Wire
Secure
Clamp
Grounding Rod
TO GROUNDING
ROD
Ground Wire
(NEC Secon
810-20)
Ground Block
(NEC Secon
810-20)
Coaxial Cables (To IDU)
Note: Ground wire, secure clamp, grounding
rod, coaxial cables and ground block are not
supplied.

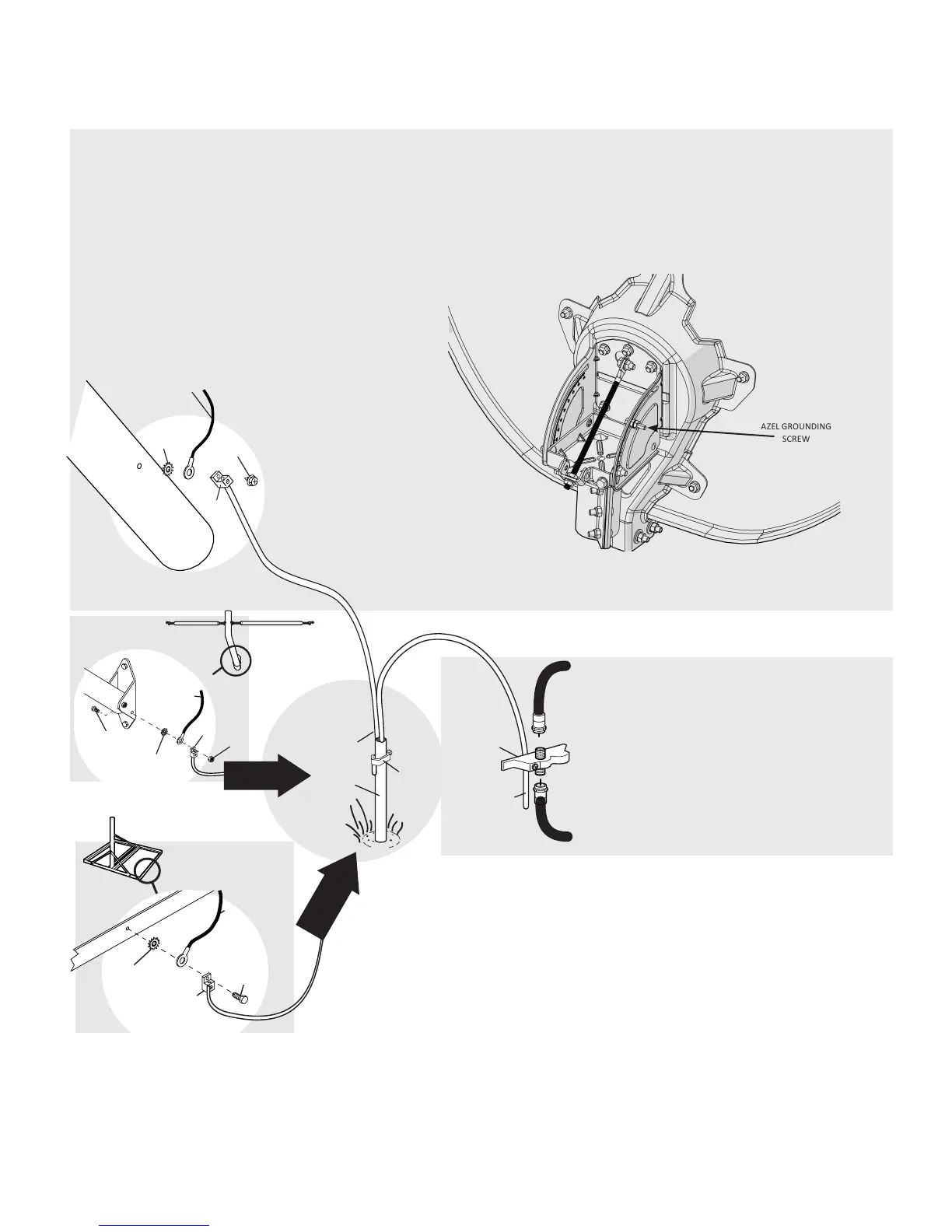

IMPORTANT: All antenna sytems must be properly grounded. Refer to NEC (Naon-
al Electric Code) Arcle 810, 820 and local building codes for specic requirements.
Typical grounding methods are shown as examples. Tighten all hardware securely
to assure good connuity.
AZEL GROUNDING
SCREW
