5
Power Supply Connection
The connection for the mains power supply is the 2 pole circuit breaker
mounted on the DIN rail
IMPORTANT! The unit may not function if connected to a residential
Residual Current Device (RCD). The motor should be hard wired to a
circuit breaker.
CAUTION! Do not touch live components or power connections until 10
minutes after disconnecting the inverter from the supply voltage.
Dangerous voltages may still be present.
Motor Direction
The default movement when setting up is to open. If the gate closes
first, disconnect the power and swap the motor wires W (Blue) and U
(Black) located in the terminal block under the inverter.

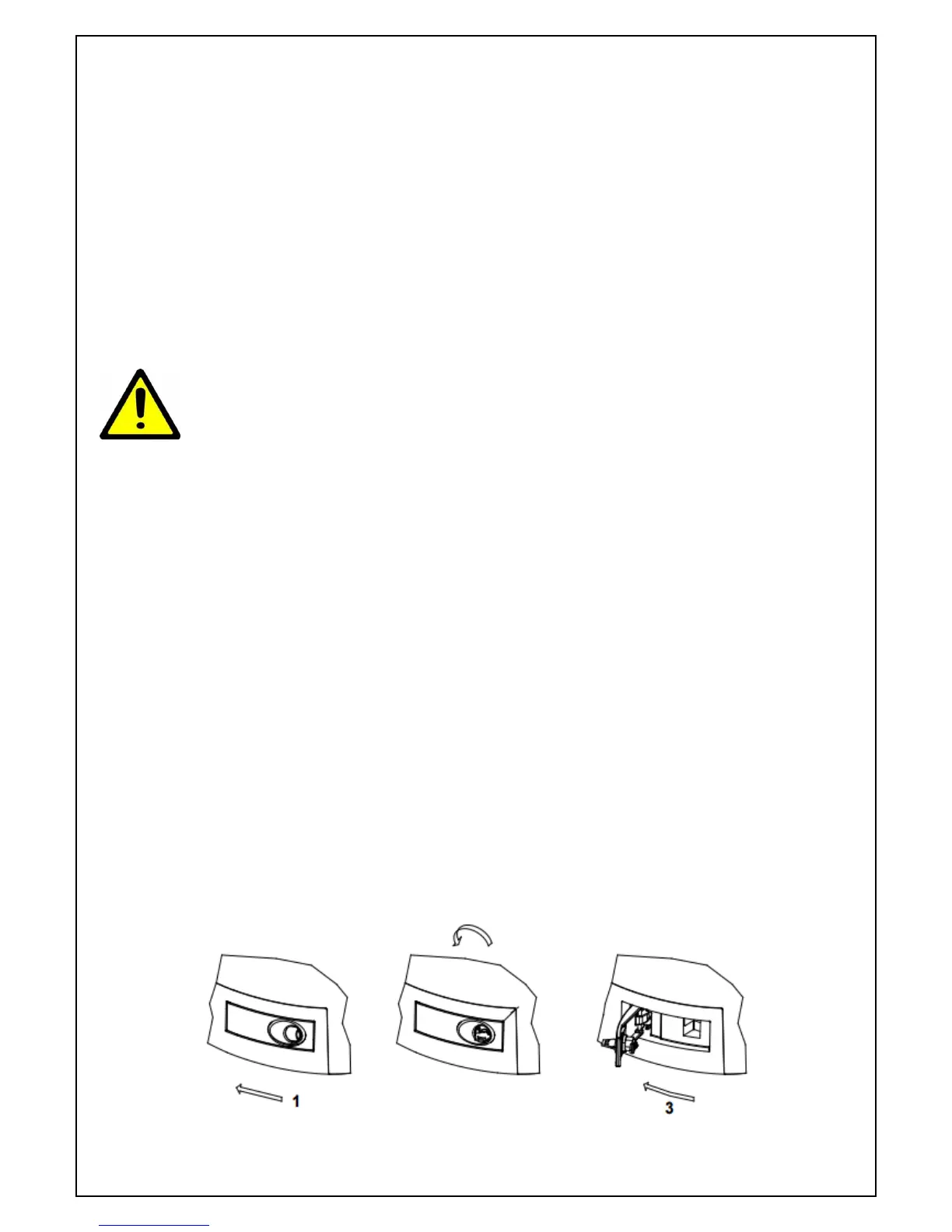

Manual Release
To manually move the gate unlock and remove the front panel then
unlock and pull on the manual release lever.
To reengage the motor push the manual release lever closed and lock it
and push on the gate to reengage the gearbox. Placing the motor into
manual operation triggers the stop circuit.
(Once the stop circuit has been broken the next cycle will be at slow
speed).
