Glow-worm 15hxi Instructions For Use And Installation

10
0020008153A
48
76
53
113.5
133
375
54
30
13
CONDENSATE
DRAIN
600
48
73
334
176
33
600
MAX.
87
MIN.
GAS
TOTAL WEIGHT
GAS CONNECTION Rc
1
/
2
(
1
/
2
in BSPT)
WATER CONNECTION 22mm. copper
ELECTRICITY SUPPLY 230V~50Hz fused 3A
ELECTRICAL RATING 60W
INTERNAL FUSE RATE Main PCB 630mAT
TABLE 1
12 hxi = 30kg
15 hxi = 30kg
18 hxi = 30kg
24 hxi = 33kg
30 hxi = 33kg
38 hxi = 33kg
1 Technical Information

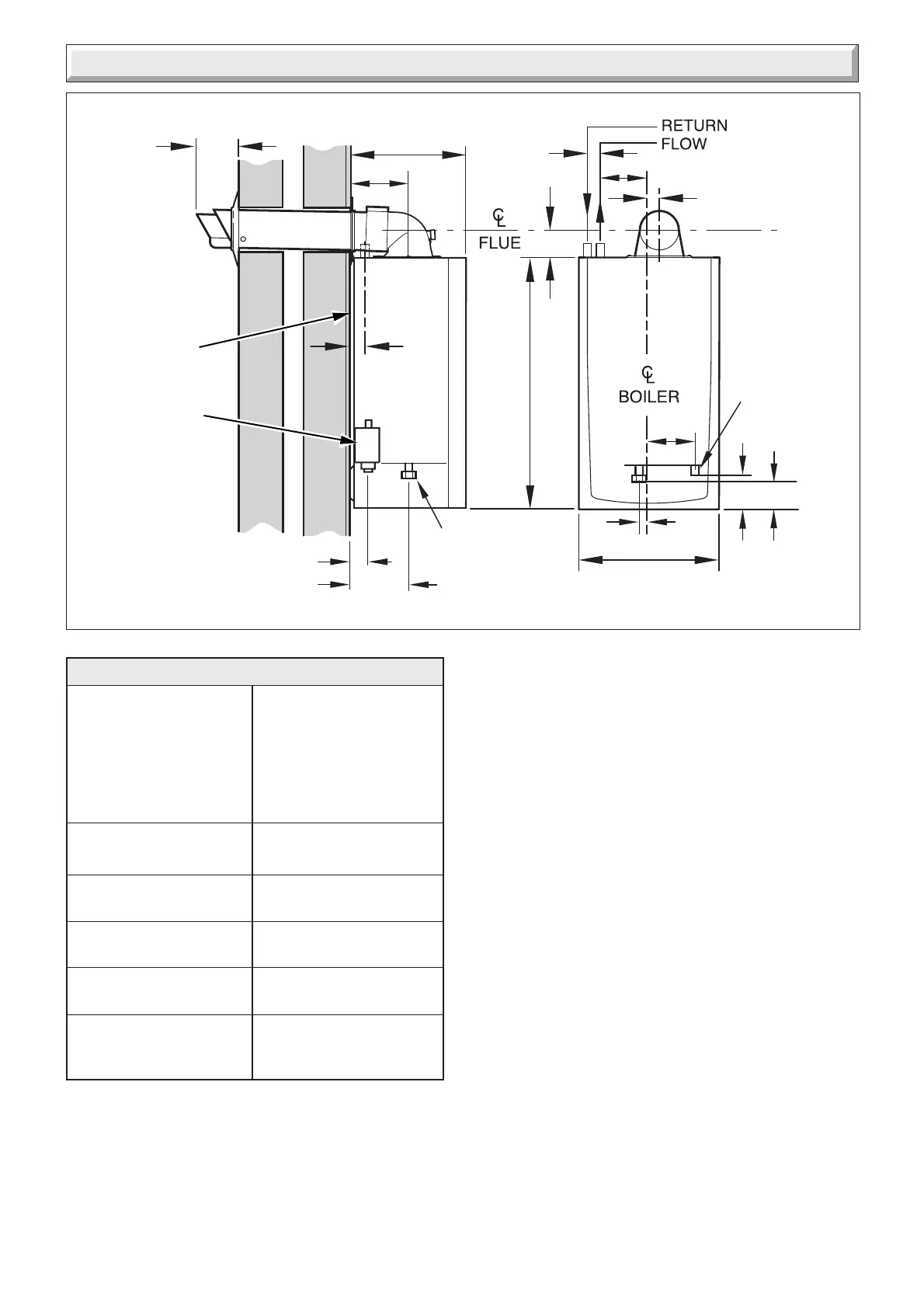

Diagram 1.1
12856
CONDENSATE
DRAIN
INSIDE WALL
FIXING FACE
1.3 Gas Supply
The gas installation shall be in accordance with the relevant
standards.
In GB this is BS6891.
In IE this is the current edition of I.S.813 "Domestic Gas
Installations".
The supply from the governed meter must be of adequate size
to provide a steady inlet working pressure of 20mbar (8in wg)
(Propane G31, 37mbar) at the boiler.
On completion, test the gas installation for soundness using the
pressure drop method and suitable leak detection fluid, purge
in accordance with the above standard.

Glow-worm 15hxi Specifications

General

Brand	Glow-worm
Model	15hxi
Category	Boiler
Language	English
