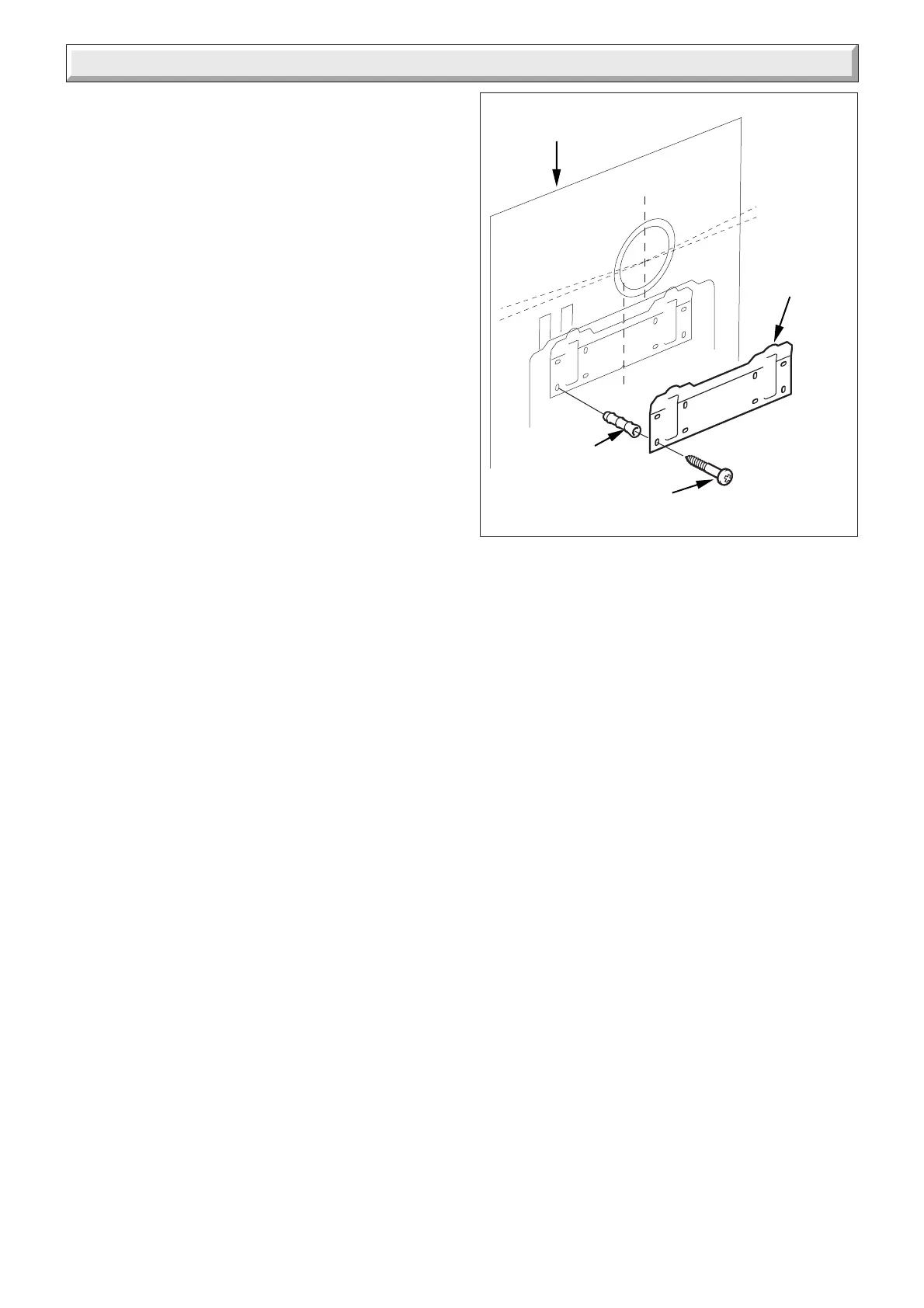

Diagram 6.1
12047
WALL PLUG
(4 OFF)
SCREW N
o
12 x 50mm
(4 OFF)
WALL
TEMPLATE
HANGING
BRACKET
6.1 Hanging Bracket Fixing
If previously removed, reposition the wall template over the flue
hole and mark the position of the fixing holes for the hanging
bracket, see diagram 6.1.
Mark and drill the fixing holes and secure the hanging bracket,
which is supplied in the polystyrene pack.
NOTE: Due to the varied site conditions we do not supply fixings
and advise that the installer should supply those which are
suitable.
6.2 Boiler Fixing
IMPORTANT: With regards to the Manual Handling Operations,
1992 Regulations, the following lift operation exceeds the
recommended weight for a one man lift, refer to Manual Handling
section on page 5.
Lifting the boiler into position, lean the top of the boiler slightly
to the wall and position just above the hanging bracket. Lower
the boiler slowly and engage onto the hanging bracket.
Make good the final connections.
6 Boiler Fixing
To Next Page
