22
0020008155A

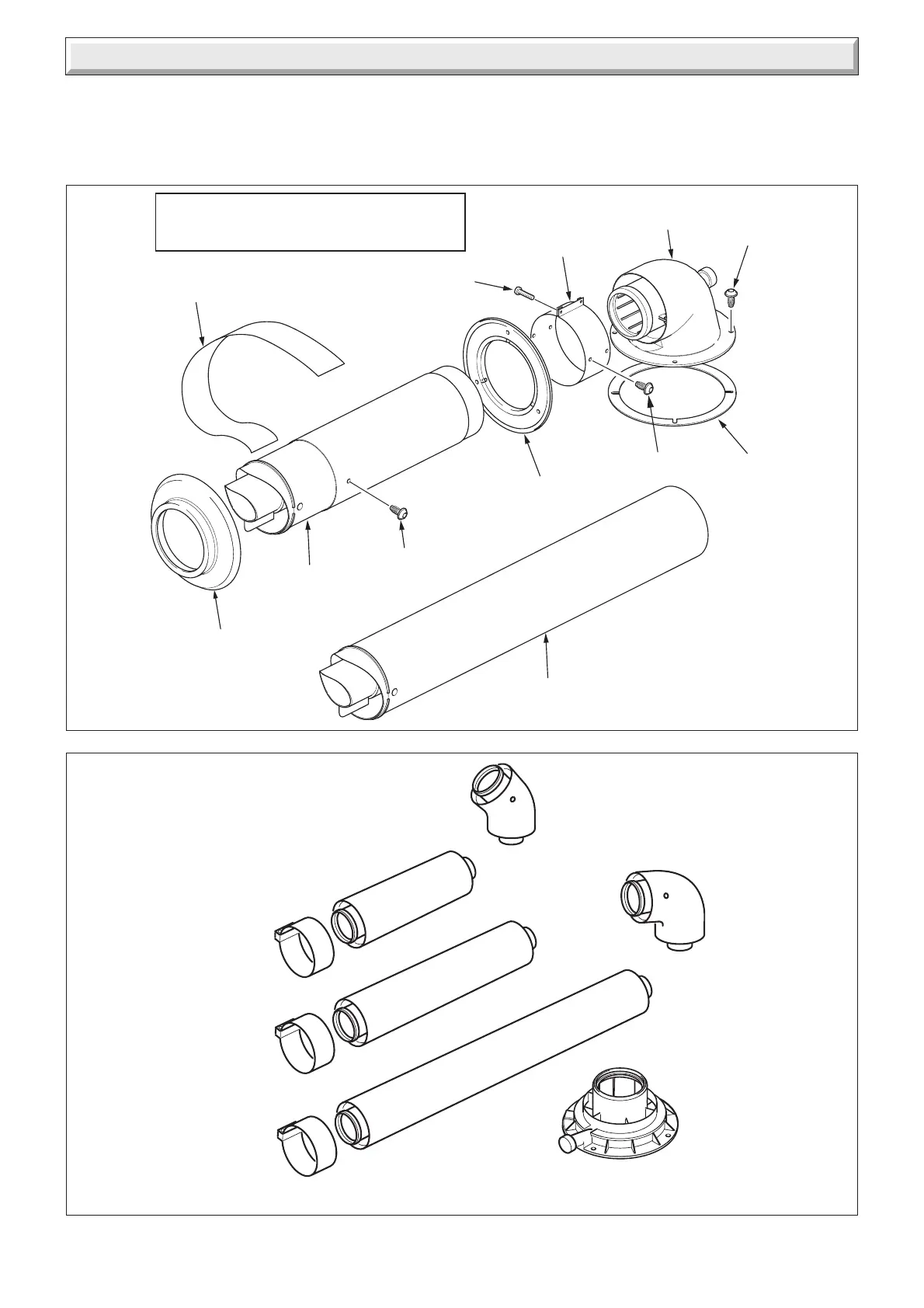

9 Flue Preparation Telescopic and Standard Flue
Diagram 9.2
12842
45
o
Bend
2000460485
(2off)
90
o
Bend
2000460484
0.5m
EXTENSION
2000460481
1m
EXTENSION
2000460482
2m
EXTENSION
2000460483
VERTICAL
FLUE
ADAPTOR
A2024600
9.1 Flue Components
The components supplied in the Standard and Telescopic kit
are shown in diagram 9.1.
12841
Diagram 9.1
TELESCOPIC
TERMINAL ASSEMBLY
SEALING
COLLAR
SEALING
COLLAR
SECURING
COLLAR
FLUE
ELBOW
GASKET
(fitted)
SEALING
TAPE (telescopic only)
Top Outlet Horizontal Concentric Flue Packs:
A2043600 Horizontal telescopic flue pack.
A2043400 Standard horizontal flue pack.
STANDARD
TERMINAL ASSEMBLY
SCREW x 1
SCREW x 2
SCREW x 2
SCREW x 4
Additional flue accessories are available to suit your site
conditions, see diagram 9.2.
The Glow-worm Flue Options Guide, available on request or
through the web site, describes in detail the necessary
accessories.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Glow-worm 18sxi and is the answer not in the manual?

Glow-worm 18sxi Specifications

General IconGeneral
Model18sxi
ManufacturerGlow-worm
CategoryBoiler
Output Rating18 kW
Fuel TypeNatural Gas
ErP RatingA
Warranty2 years
Operating Pressure3 bar
