Glow-worm 38cxi Installation And Servicing

14

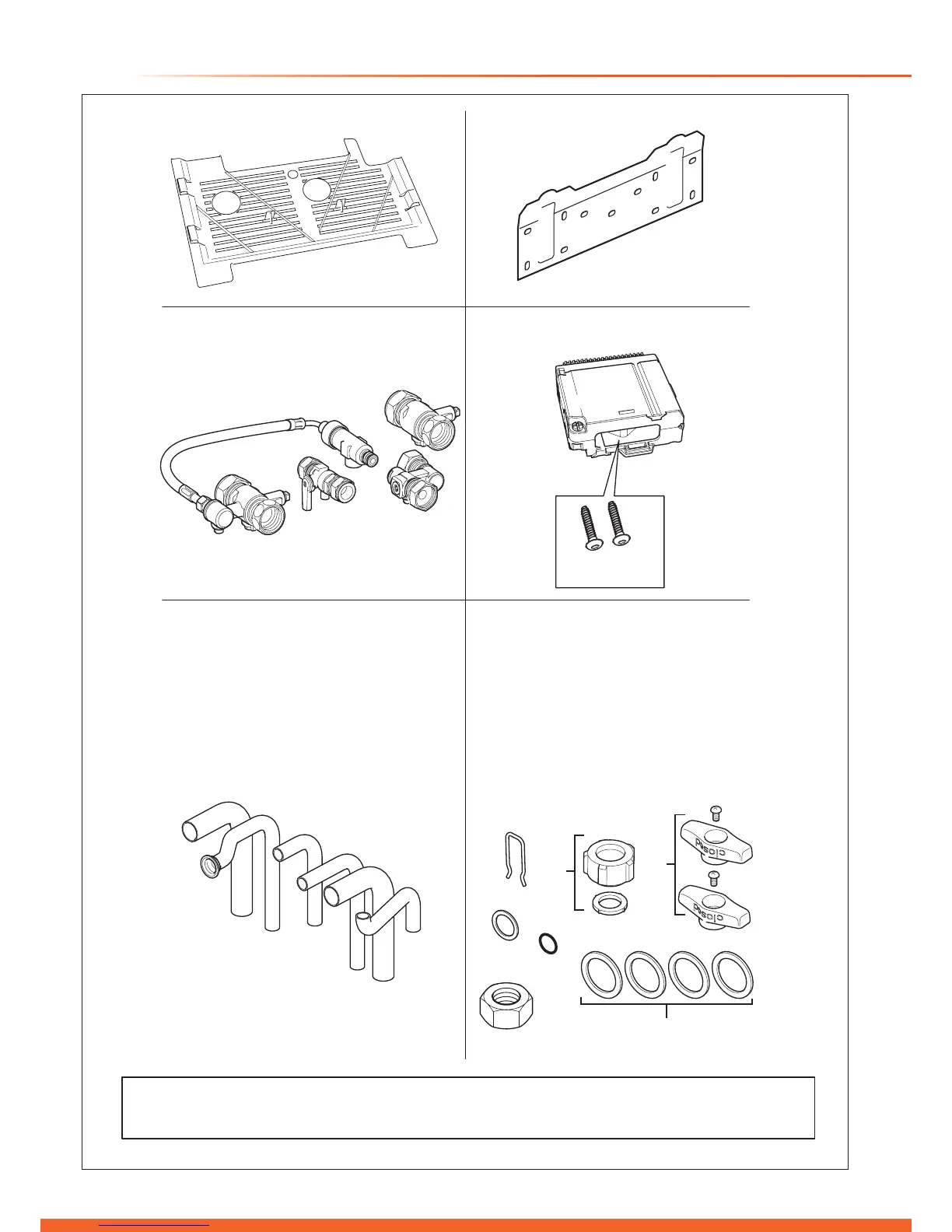

6 Installation Preparation
Diagram 6.1
13646
Base Coverplate
A - Wire Retaining Clip
B - Union Nut and Sealing Washer
A - Central Heating x 2
C - Ta p and Securing Screw
E - Gas Sealing Washer
F - O Ring
G - Union Nut
B - Domestic Hot Water Outlet
D - Sealing Washers
C - Gas
D - Domestic Cold Water Inlet
E - Saftey Discharge
Hanging Bracket
Electrical CartridgeGas and Water
Isolating Valves
0020036801
Pipe Pack 0020029671 Loose Items Pack
E
D
D
A
A
A
E
F
G
C
C
B
B
Retaining Screws
stored in cartridge
Documentation Pack (not illustrated)
Wall Template, User Instructions, Installation and Servicing Instructions.

Glow-worm 38cxi Specifications

General

Model	38cxi
Category	Boiler
Output	38 kW
Efficiency	89.2%
Efficiency Rating	A
ERP Rating	A
Fuel Type	Natural Gas
Mounting	Wall Mounted
Max. Working Pressure	3 bar
Electrical Supply	230V ~ 50Hz
Flow Rate at 35°C Rise	15.7 litres/min
Central Heating Flow Temperature Range	30°C to 80°C
Type	Condensing Combi Boiler
Flow Rate	15.7 litres/min at 35°C rise
