Glow-worm 38cxi Installation And Servicing

8
2 Boiler Dimensions & Hydraulic Schematic
15421
Diagram 2.2
Diagram 2.1
2.1 Boiler Dimensions & Hydraulic
Schematic
All dimensions are given in millimetres (except as noted).

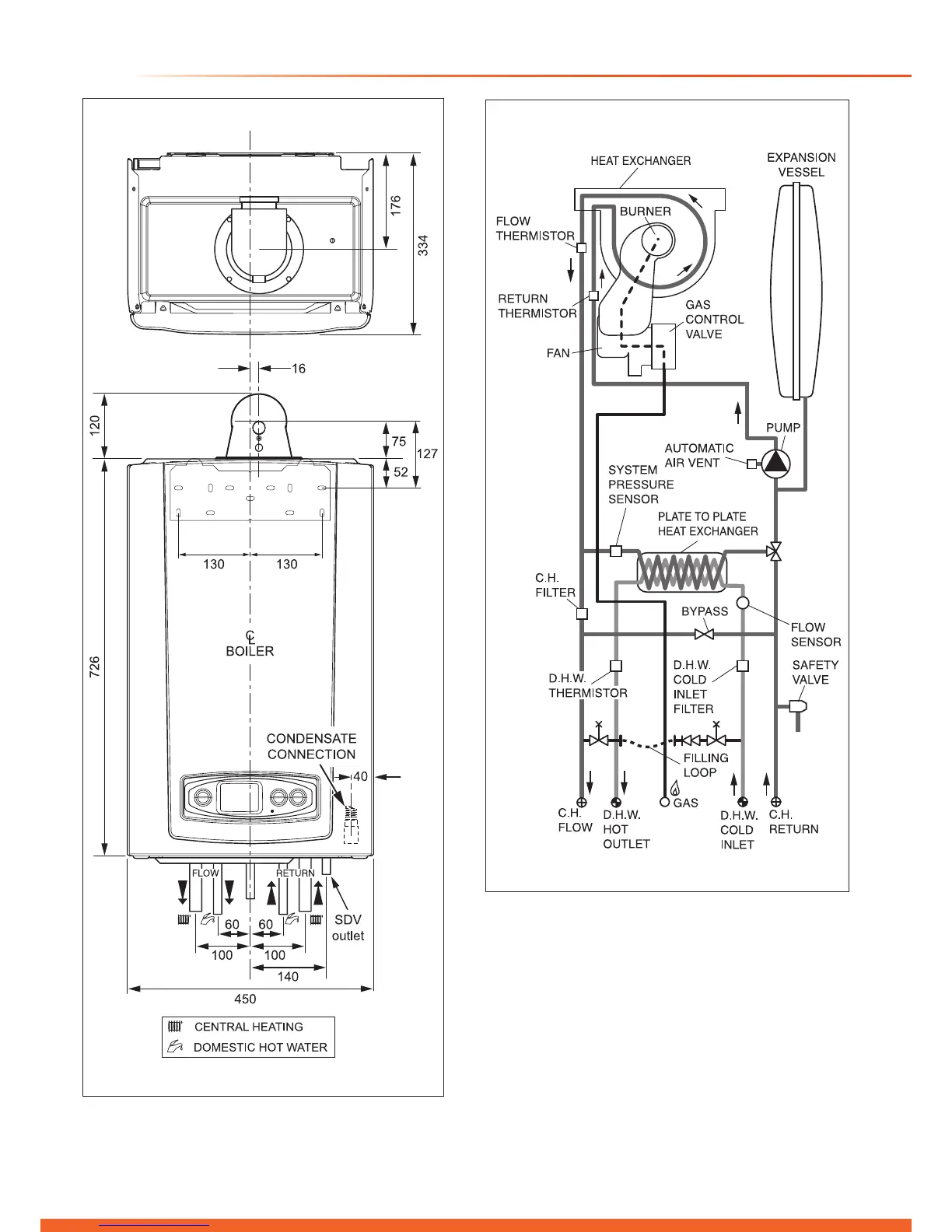

The general arrangement of the boiler is shown in diagram
2.1. and the hydraulic and gas schematic, diagram 2.2.
The data label is positioned on the front of the inner casing
panel.
13268

Glow-worm 38cxi Specifications

General

Model	38cxi
Category	Boiler
Output	38 kW
Efficiency	89.2%
Efficiency Rating	A
ERP Rating	A
Fuel Type	Natural Gas
Mounting	Wall Mounted
Max. Working Pressure	3 bar
Electrical Supply	230V ~ 50Hz
Flow Rate at 35°C Rise	15.7 litres/min
Central Heating Flow Temperature Range	30°C to 80°C
Type	Condensing Combi Boiler
Flow Rate	15.7 litres/min at 35°C rise
