Glow-worm 38cxi Installation And Servicing

31
10 Vertical Flue - Length, Preparation and Installation

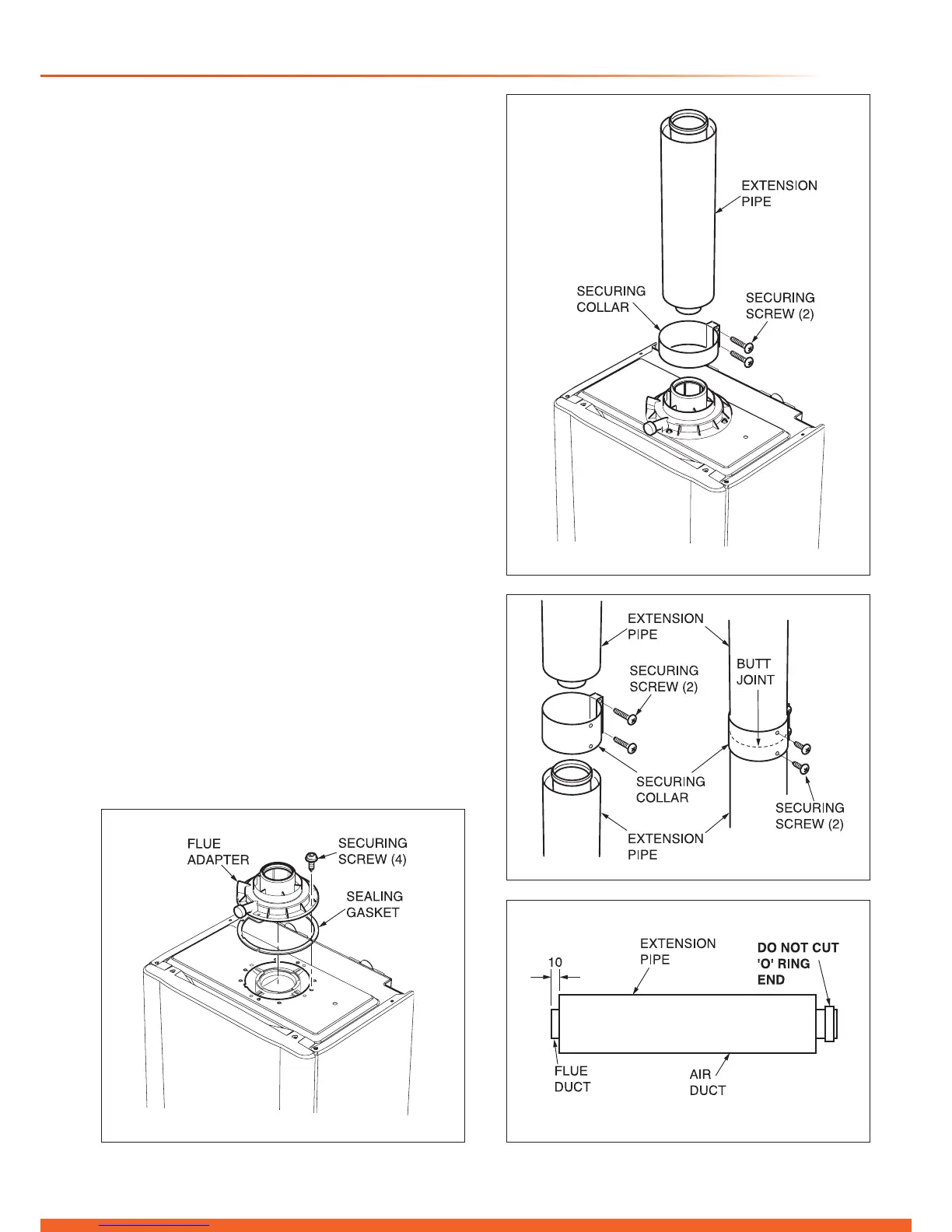

Diagram 10.21
13243
Diagram 10.22
13242
Diagram 10.23
12982
Completion of Installation
With the ue terminal positioned in the roof the length of the
nal pipe can be determined. If a telescopic length cannot
be used, then a standard ue length can be cut to make the
correct length. Cut the ue to the desired length measuring
from the ‘O’ ring end and discard the plain end of the tube.
The cuts must be square and made free of burrs to allow
correct assembly.
NOTE: The ue pipe is 10mm longer than the air pipe, see
diagram 10.24.
Carefully push the terminal assembly upwards to allow room
for tting the nal ue piece. Fit a xing bracket to the terminal
assembly. Pull the terminal assembly down and join to the ue
system. Ensure that the terminal is making a weather tight
seal on the weather collar. Secure the xing bracket tted to
the terminal to the roong struts or a purpose made batton.
Diagram 10.24
12983

Glow-worm 38cxi Specifications

General

Model	38cxi
Category	Boiler
Output	38 kW
Efficiency	89.2%
Efficiency Rating	A
ERP Rating	A
Fuel Type	Natural Gas
Mounting	Wall Mounted
Max. Working Pressure	3 bar
Electrical Supply	230V ~ 50Hz
Flow Rate at 35°C Rise	15.7 litres/min
Central Heating Flow Temperature Range	30°C to 80°C
Type	Condensing Combi Boiler
Flow Rate	15.7 litres/min at 35°C rise
