11
221098C
MARK
FRONT
FIXING
HOLES
SPIGOT
FLUE
COLLECTOR
ASSEMBLY
FIRE FRONT
4 I n s t a l l a t i o n

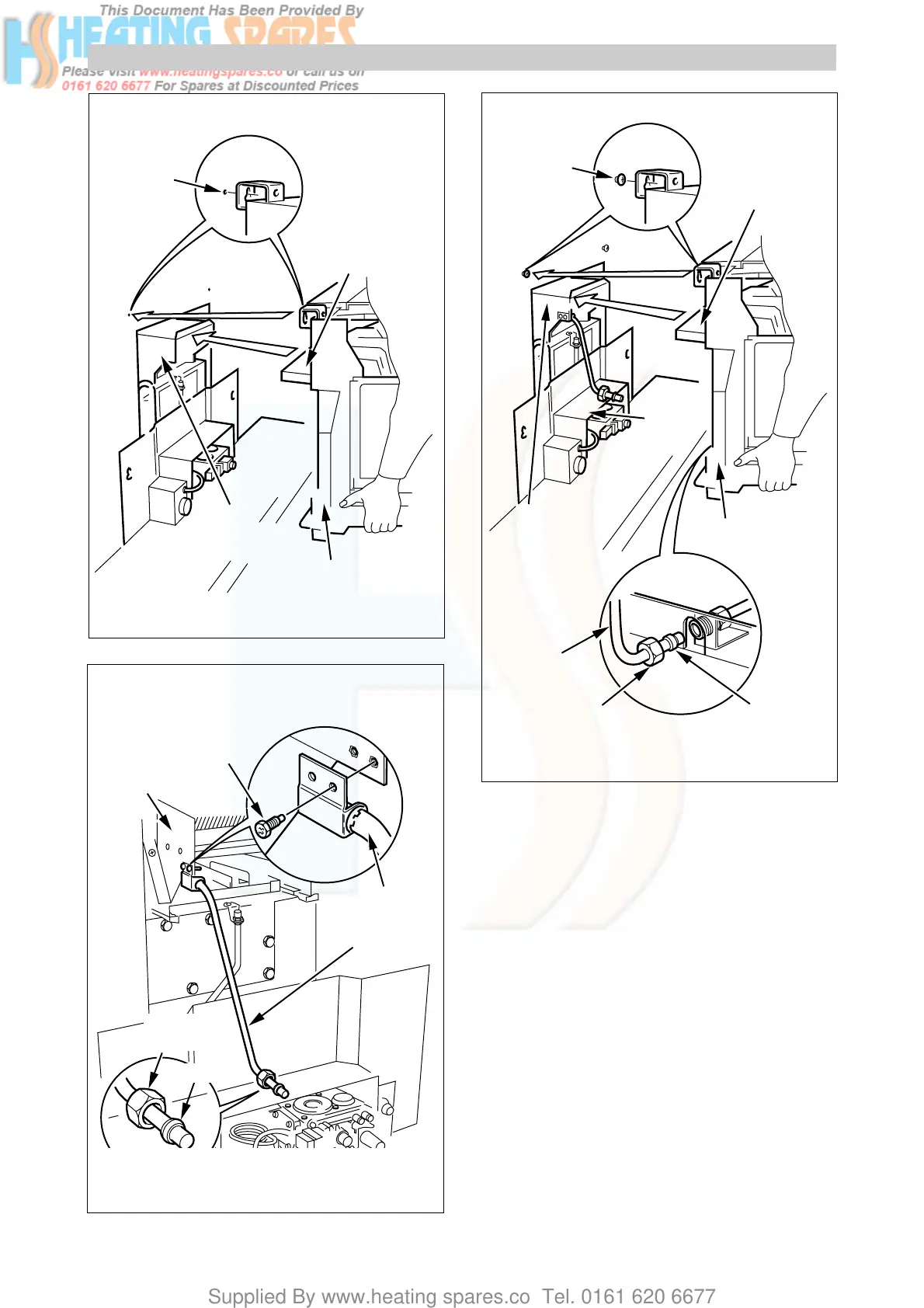

Diagram 4.5
Diagram 4.4
52575072
5258
FIRE FRONT
SENSING
TUBE
SECURING
SCREW (2)
FLUE
COLLECTOR
TUBING
NUT
OLIVE
FRONT
FIXING
SCREW
SPIGOT
BACK
BOILER
AIR
DUCT
FLUE
COLLECTOR
ASSEMBLY
FIRE FRONT
OLIVE
TUBING
NUT
SENSING
TUBE
Diagram 4.6
Note, place the tubing nut and olive from the loose items
pack onto the prepared end of the sensing tube, see
diagram 4.5.
Offer the appliance up to the back boiler air duct and
push into position taking care not to damage fire front
sensing tube and filter, lift slightly to engage mounting
brackets onto screws, engage sensing tube into bulk head
connection, see diagram 4.6.
Tighten the fire securing screws, see diagram 4.7.
Tighten the sensing tube nut onto the bulkhead, see
diagram 4.8.
