12221098C
5167
TUBE NUT
FIRE FRONT
SENSING
TUBE
TUBE NUT
4 I n s t a l l a t i o n

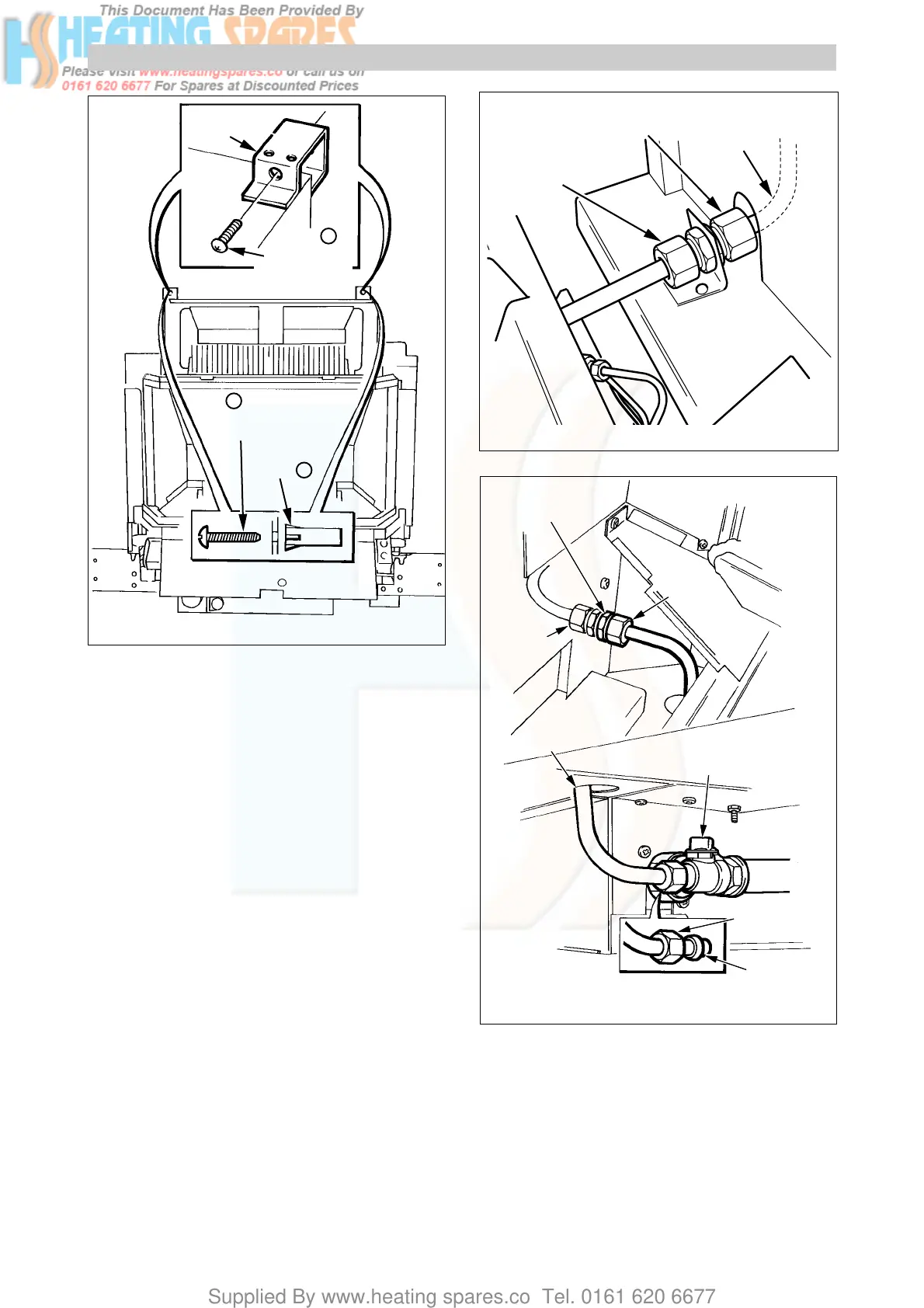

Diagram 4.8
OLIVE
JOINT (C)
UNION
NUT (B)
LOCK
NUT (A)
GAS SUPPLY
PIPE
GAS SERVICE COCK
TUBING
NUT
Diagram 4.9
3929 S
3928 S
Diagram 4.7
MOUNTING
BRACKET
SECURING
SCREW (2)
M5
X
40mm
SECURING
SCREW (2)
C
C
ANCHOR
NUT
D
4.3 Gas Connection
Place the tubing nut and olive, from the loose items
pack, onto the prepared end of the gas supply tube,
see diagram 4.9.
Connect the gas supply, as diagram 4.9 tighten the nut
and olive at the gas service cock.
To tighten the other end use a spanner to hold the
locknut (A) at the bulkhead fitting and ensure that it does
not turn, tighten the union nut (B) on the supply tube in
the usual manner, see diagram 4.9.
Make sure that joint (B) is checked for gas soundness, by
checking it when carrying out the other gas soundness
checks in Section 5.1.
Fit the left hand side panel, see diagram 4.10.
