1 G e n e r a l

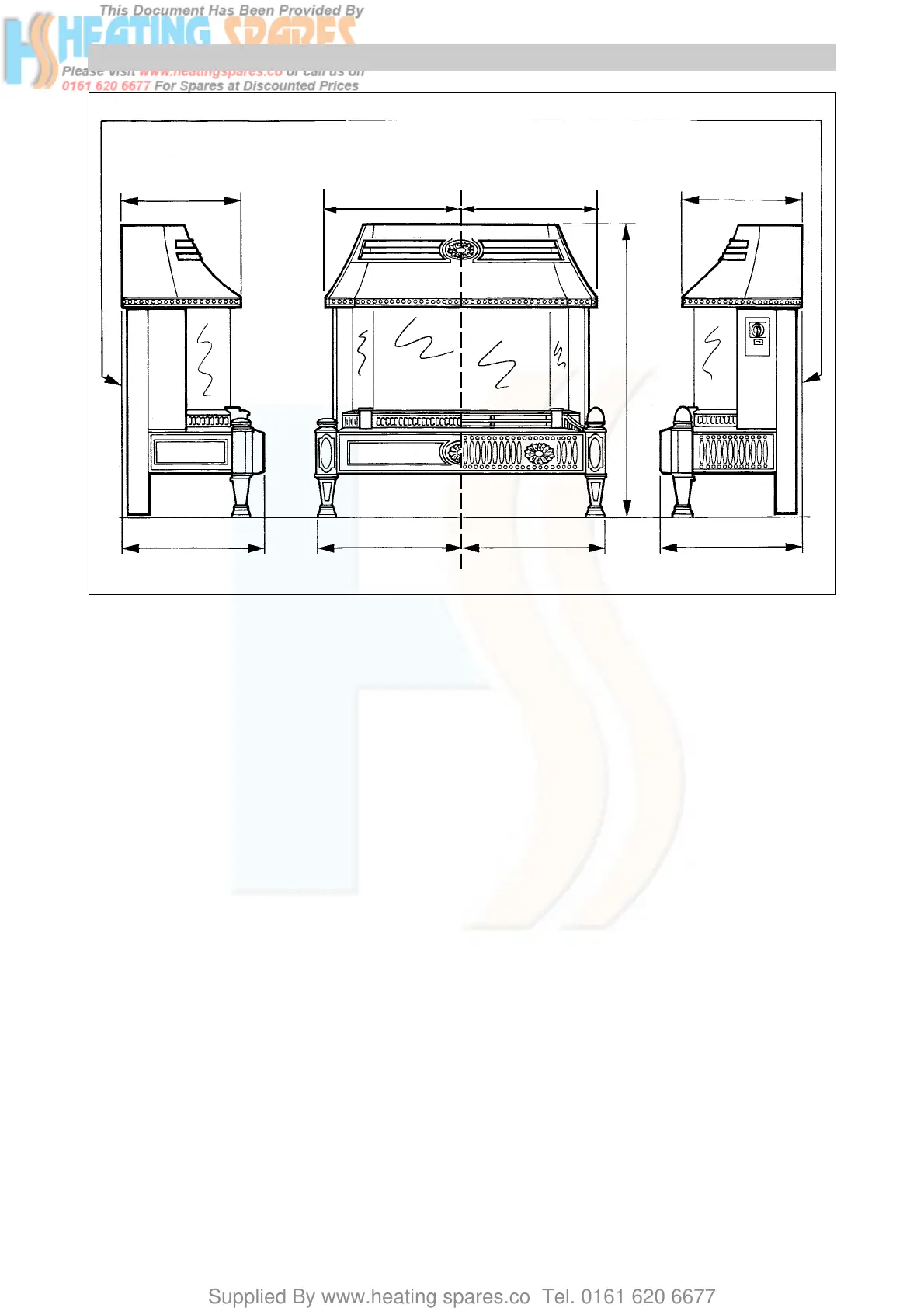

Diagram 1.1
3916 BBU S
FLAT AREA
FIRE FIXING FACE
289mm
339mm 351mm 351mm 339mm
690mm
289mm
327mm
327mm
1.3 Data
Gas connection- from the service cock
Total weight - 49kg
Injector - upper Bray 18/180
- lower Bray 18/320
Burner pressure setting
- cold 13.0mbar 5.18in wg
- hot 13.2mbar 5.28in wg
Heat input - gross - 6.7kW 22,750Btu/h
Heat output - nominal - 4.03kW 13,670Btu/h
Fire serial No. - On chassis - visible when front
casting is removed
Data label - Inside of right hand side panel
The fire front burner is lit by means of an electronic
spark generator unit.
All dimensions are given in millimetres
(except as noted).
