8
2 Boiler Dimensions and Hydraulic Schematic
13482
Diagram 2.2
Diagram 2.1
13642

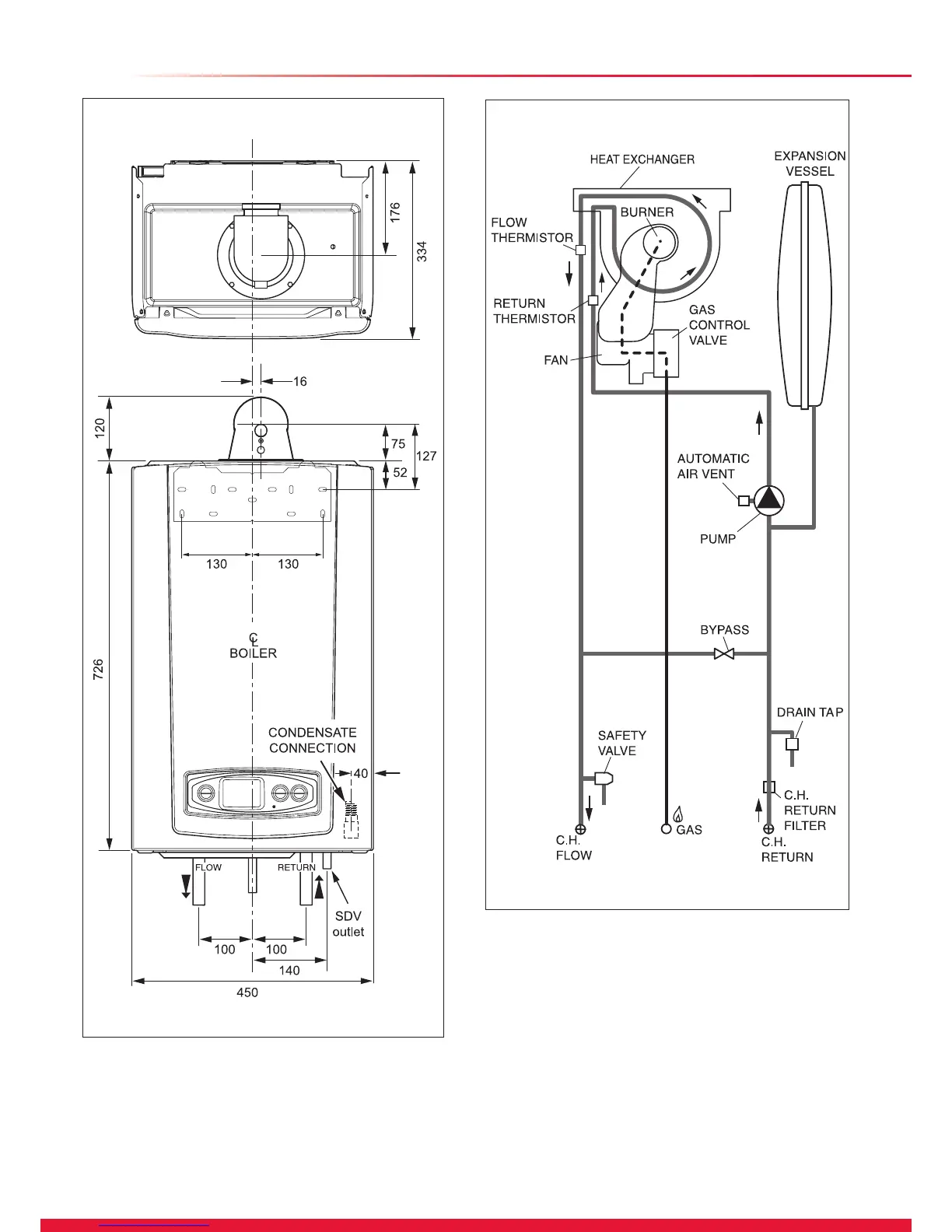

2.1 Boiler Dimensions & Hydraulic Schematic
All dimensions are given in millimetres (except as noted).
The general arrangement of the boiler is shown in diagram
2.1. and the hydraulic and gas schematic, diagram 2.2.
The data label is positioned on the front of the inner casing
panel.
