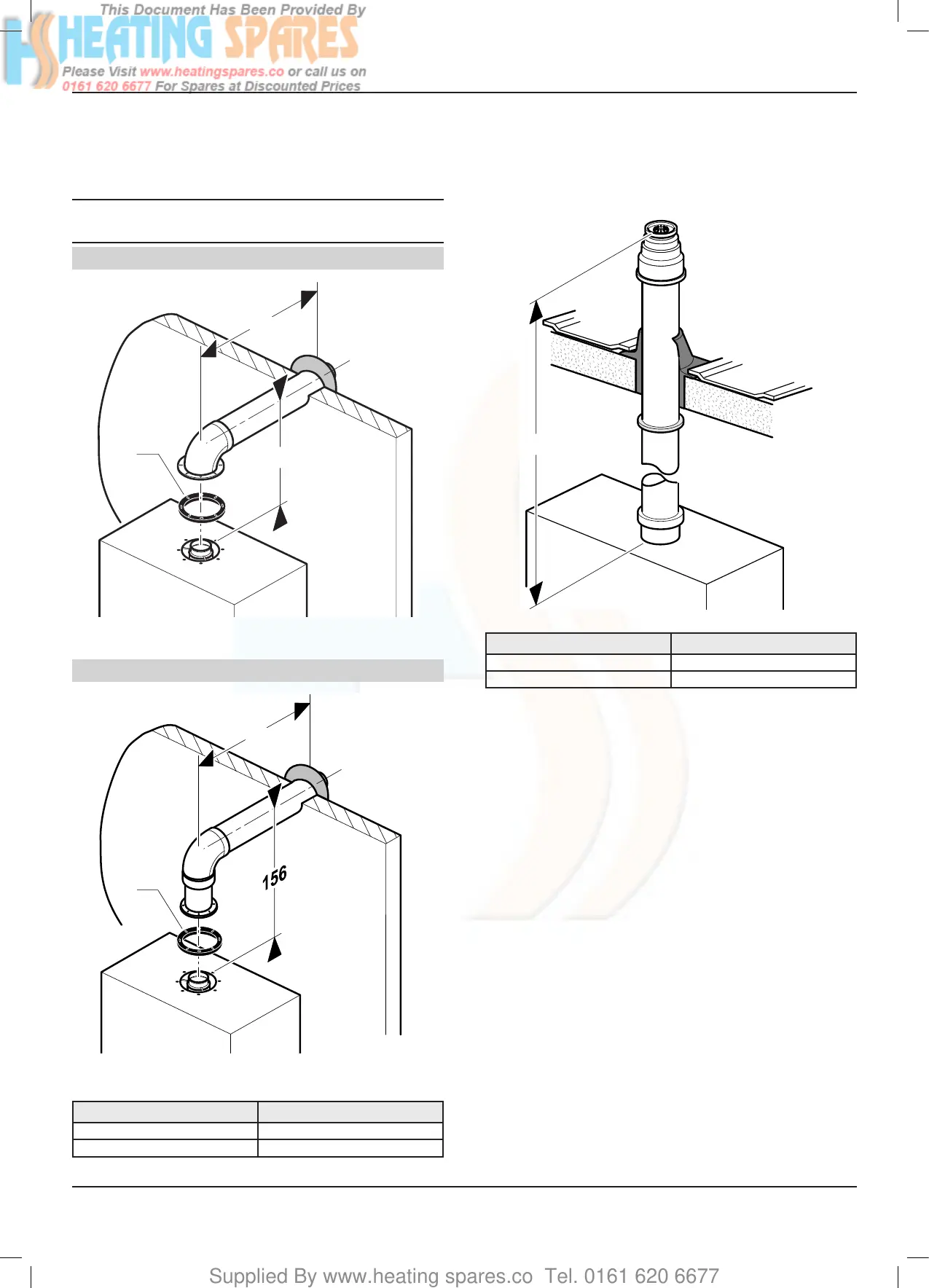

9.2 Fluecongurationdescription
9.2.1 HorizontalconcentricueØ60/100mm
orØ80/125mm(C13typeinstallation)
a
If necessary, you must install a terminal
protection kit.
Ø 60/100 mm
L
63
1
Key
1Gasket(tted)
Ø 80/125 mm
L
1
Key
1Gasket(tted)
Type Max length
Ø 60/100 10 m
Ø 80/125 25 m
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
9.2.2 VerticalconcentricueØ60/100mm
orØ80/125mm(C33typeinstallation)
L
Type Max length (L)
Ø 60/100 10 m
Ø 80/125 25 m
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
INSTALLATION

Glow-worm Ultracom 2 30cxi Specifications

General

Boiler Type	Combi
Output	30 kW
DHW Output	30 kW
Efficiency Rating	A
SEDBUK Rating	89.3%
Flow Rate	12.4 l/min
Warranty	2 years
Central Heating Flow Temperature Range	30 - 80 °C
Hot Water Temperature Range	35 - 60 °C
Mounting	Wall Mounted
Fuel Type	Natural Gas
