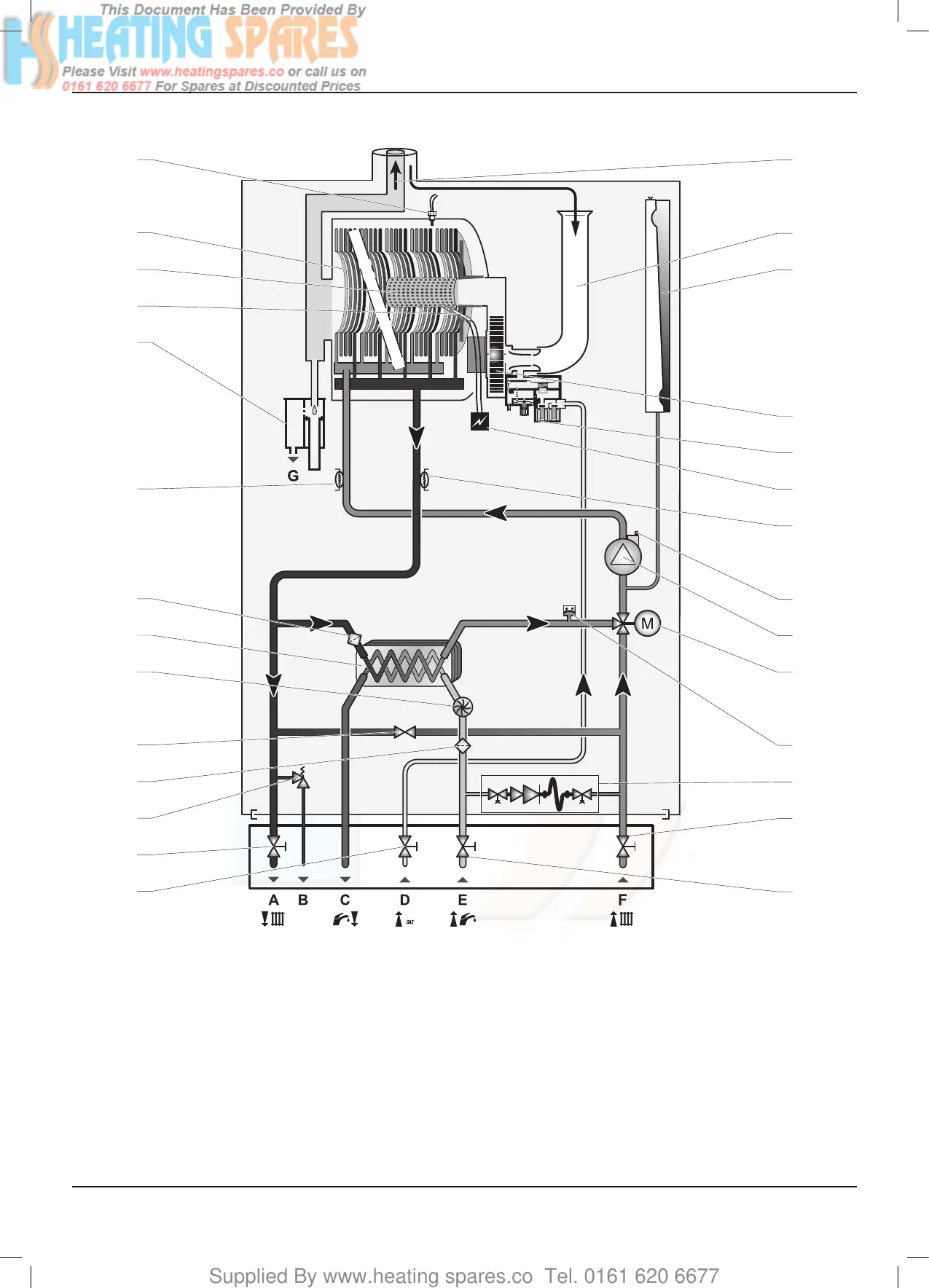

2.5 Hydraulic schematic
14
13
12
11
10
9
8
7
6
5
4
3
2
1
15
16
17
18
19
20
23
22
21
24
25
27
28
26
Key
1 Gas isolating valve
2 Heatingowisolatingvalve
3 Heating safety valve
4 Filteroncoldwaterinlet
5 By-pass
6 DHWowsensor
7 Domestic plate to plate heat exchanger
8 Heatinglter
9 Heating return thermistor
10 Condensate trap
11 Ignition and control electrode
12 Burner
13 Main heat exchanger
14 Thermal fuse
15 Flue outlet
16 Silencer
17 Heating expansion vessel
18 Fan
19 Gas control valve
20 Ignition module
21 Heatingowthermistor
22 Air vent
23 Pump
24 Threewayvalve
25 Water pressure sensor
26 Filling taps
27 Heating return isolating valve
28 Domesticcoldwaterisolatingvalve
A Heatingow
B Pipe for heating safety valve
C Domestichotwateroutlet
D Gas
E Coldwaterinlet
F Heating return
G Condensate drain
INTRODUCTION

Glow-worm Ultracom 2 30cxi Specifications

General

Boiler Type	Combi
Output	30 kW
DHW Output	30 kW
Efficiency Rating	A
SEDBUK Rating	89.3%
Flow Rate	12.4 l/min
Warranty	2 years
Central Heating Flow Temperature Range	30 - 80 °C
Hot Water Temperature Range	35 - 60 °C
Mounting	Wall Mounted
Fuel Type	Natural Gas
