GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-6081485) - 2014 - CRC - 12/6/13
10-30 Vehicle Care

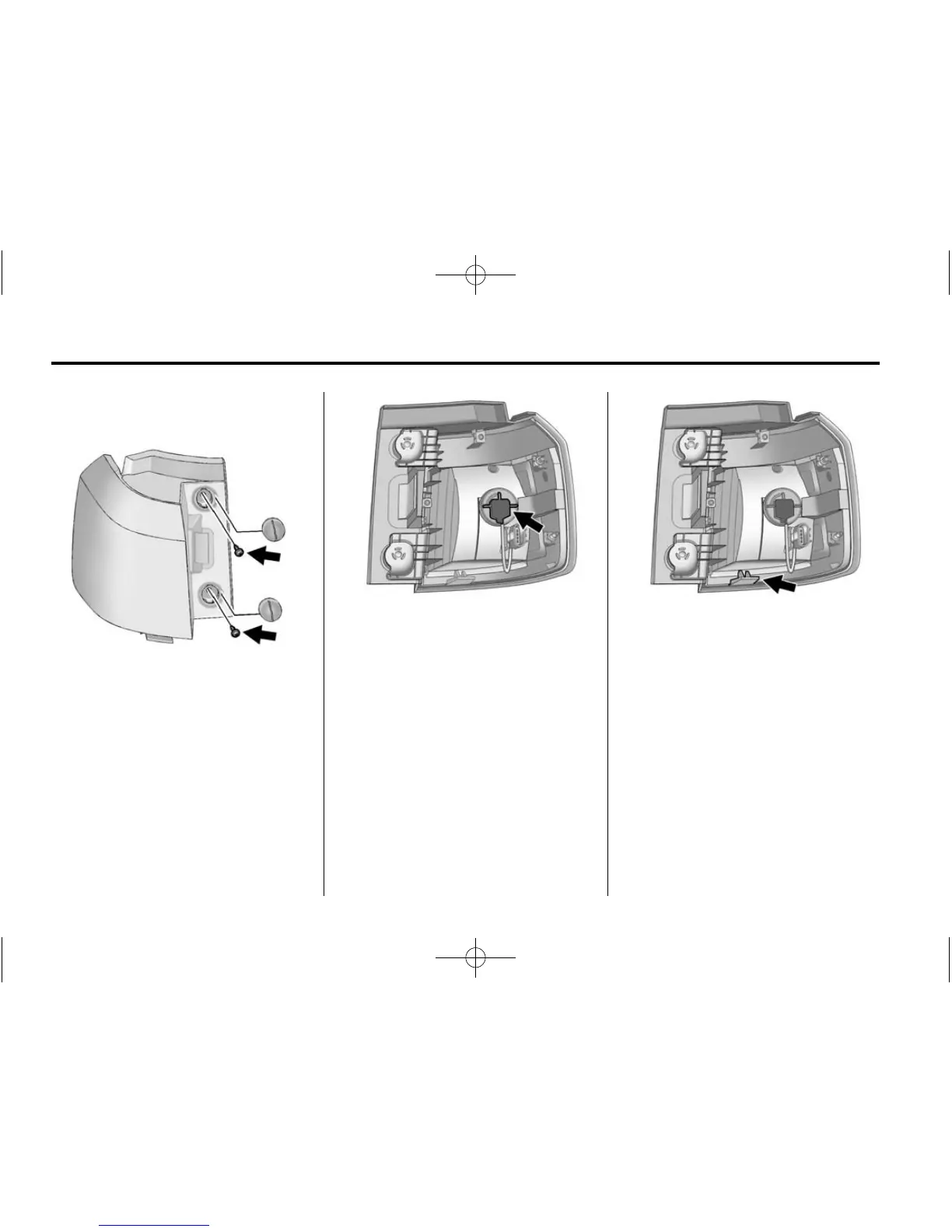

2. Remove the two screw covers
from the taillamp assembly.
3. Remove the two screws
securing the taillamp assembly.
4. Pull the taillamp assembly out of
the vehicle body.
5. Disconnect the lamp wiring
harness.
6. Turn the bulb socket
counterclockwise and pull it out.
7. Pull the bulb straight out of the
socket.
8. Install the new bulb.
9. Push the bulb socket in and turn
it clockwise.
10. Reverse Steps 2–5 to reinstall
the lamp assembly.
11. Verify that the taillamp
assembly tab, located at the
bottom of the taillamp
assembly, is aligned to the
fascia bracket before securing
with screws.
Auxiliary Taillamp
To replace one of these lamps:
1. Open the liftgate. See Liftgate
on page 2-9.
2. Remove the interior trim access
panel.
