6-42
Other Service Items

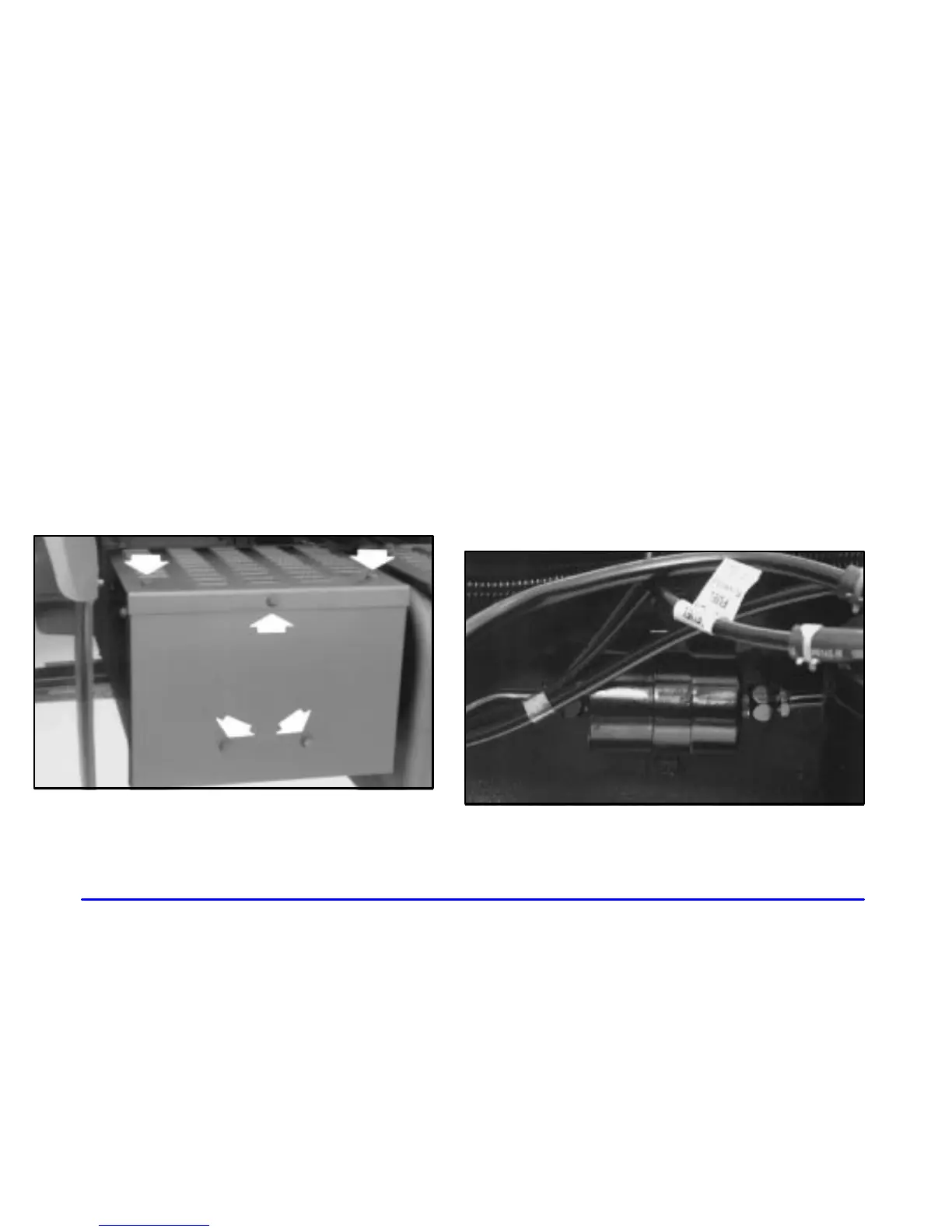

Component Box
Your vehicle has a component box located along the left
frame rail.
What is in the box depends on what options are on your
vehicle. Normally, the fuel filter, air dryer, Luberfiner
oil filter, emission canister or other components are
in there.
To get into the box, you first have to remove the top
cover. To do that, remove the two 8 mm bolts on top and
the single 8 mm bolt at the top front. Then, pull the
cover toward you and lift it off.
You can then remove the front cover if you need to, by
removing the two 8 mm bolts and pulling it off.
When you’re through, be sure to put the front cover on,
before you put on the top cover.
Fuel Filter (Gasoline Engines)
The steel fuel filter is located on the inside of the left
hand frame rail. See your Maintenance Schedule for
recommended service intervals.
If your vehicle is equipped with the optional Davco
spin
-on type filter, it is located in the component box.
