GME TX3100 - DC Power Connection; Radio remains ON when the ignition switch is OFF; Radio turns OFF with the ignition switch

t X 3 1 0 0 i n s t r u c t i o n m A n u A l PA G E 1 9
DC POWER CONNECTION





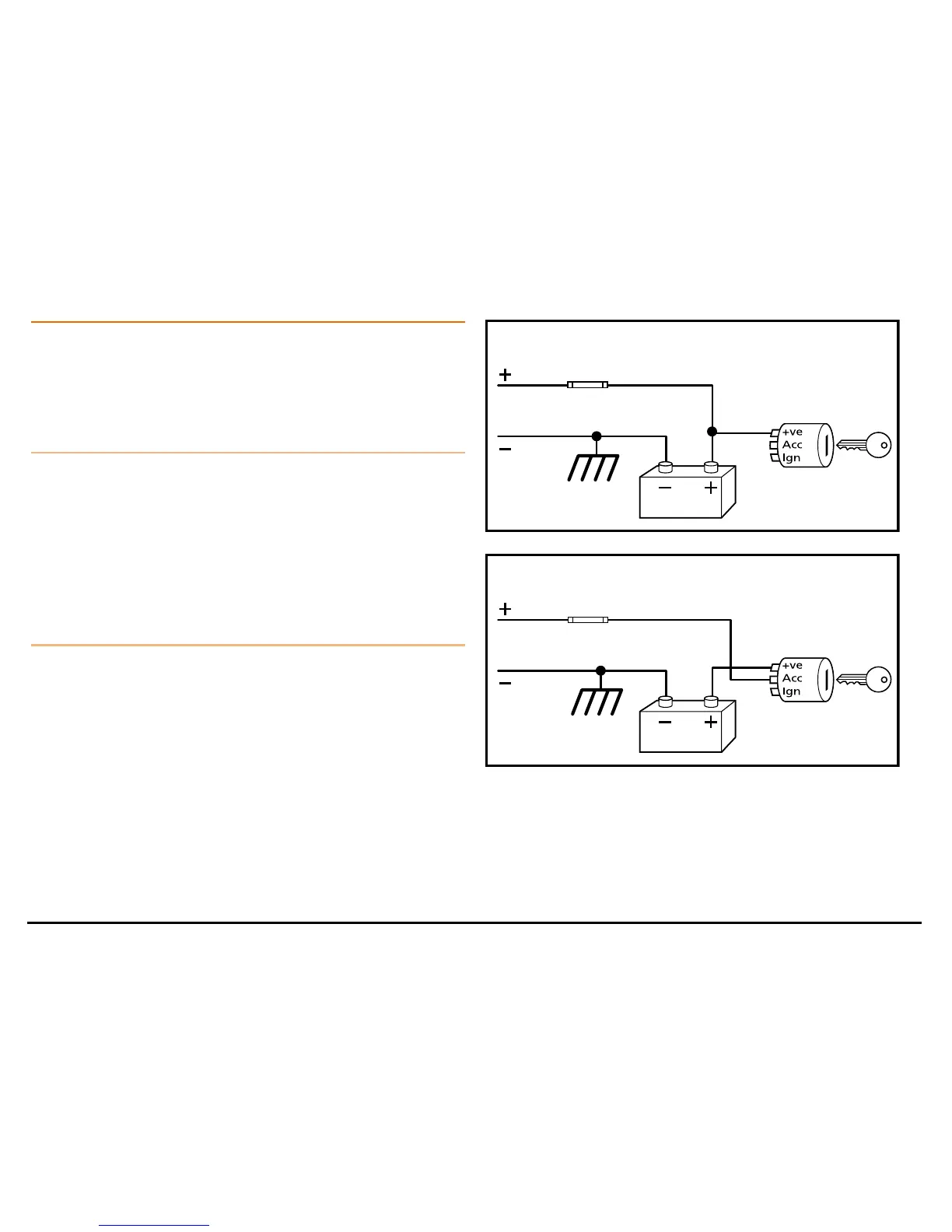

Radio remains ON when the ignition switch is OFF







Radio turns OFF with the ignition switch:






Radio remains ON when ignition switch is OFF
RED
BLACK
Chassis
Car battery
Ignition Switch
Radio turns ON and OFF with ignition switch
RED
BLACK
Chassis
Car battery
Ignition Switch
To
TX3100
Radio remains ON when ignition switch is OFF
RED
BLACK
Chassis
Car battery
Ignition Switch
Radio turns ON and OFF with ignition switch
RED
BLACK
Chassis
Car battery
Ignition Switch
To
TX3100
