GME TX3350 - Mounting and Fitting Procedures; Mounting the Cradle; Fitting the Radio and Microphone

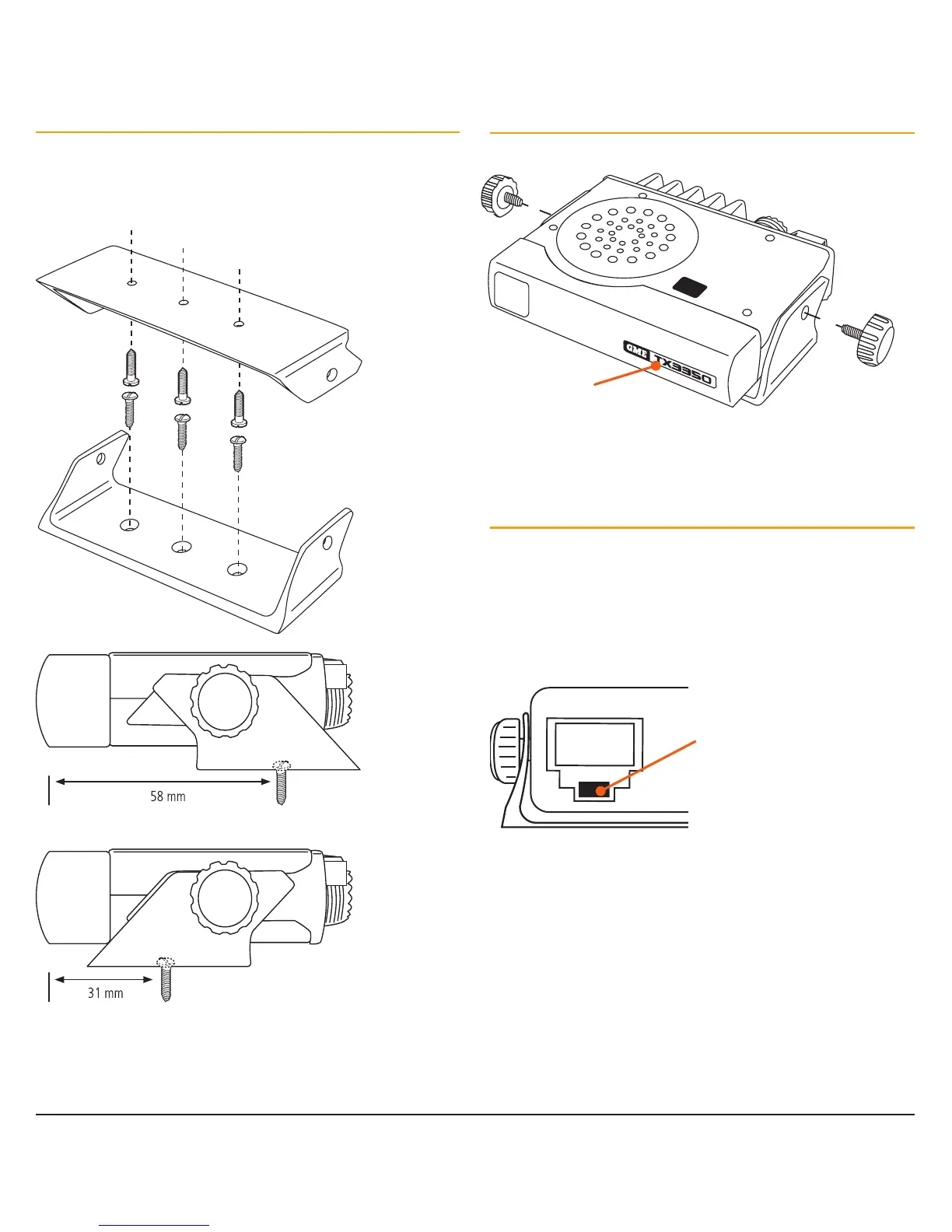

Mounting the cradle
The mounting bracket can be oriented with the arms
extending either forward or backwards to adjust the position
of the front panel with reference to the mounting point.
Fitting the radio
Fit radio into cradle and tighten gimbal knobs.
Once the orientation of your radio is confirmed, you can fit
the GME model label. Simply remove the backing tape and
press into the recess on the front panel
.
Fitting the microphone
The microphone uses an 8 pin plug and socket.
To fit the microphone:
1. Position the microphone plug so the plastic tab faces
downwards, and press the plug into the socket until
it ‘clicks’.
Plastic tab
TX3350 INSTRUCTION MANUAL PAGE 21
Label
