PAGE 6 INSTRUCTION MANUAL TX6155 / TX685

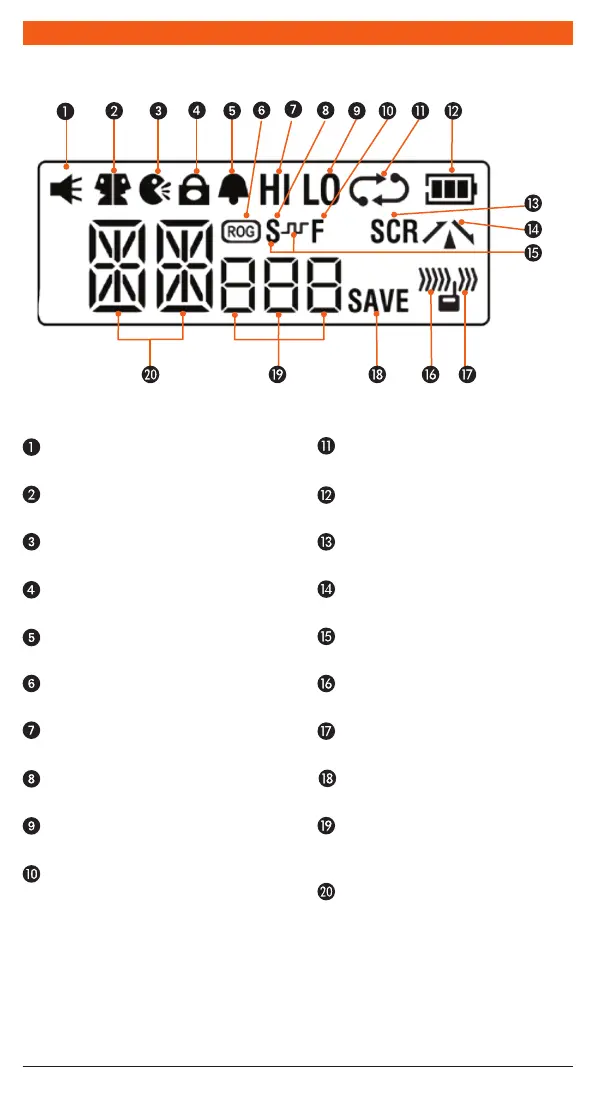

LCD ICONS
Monitor Icon: Appears when the
Squelch is open.
Dual Watch Icon: Appears when
Dual Watch is active.
VOX Icon: Appears when VOX mode
is active.
Key Lock Icon: Appears when the
keypad is locked.
Button Beep Icon: Appears when
button confirmation tones are on.
Roger Beep Icon: Appears when the
Roger Beep tones are active.
Hi Power Icon: Appears when High
TX power is selected.
CTCSS Silent Icon: Appears when
Silent mode is active using CTCSS.
Low Power Icon: Appears when
Low TX power is selected.
Function Icon: Appears when the
function ‘F’ key is pressed to activate
secondary functions.
Scan Icon: Flashes when radio
is scanning.
Battery Icon: Displays battery
charge level.
Scrambler Icon: Appears when
Scrambler is enabled.
Duplex Icon: Appears on channels
where Duplex is enabled.
DCS Silent Icon: Appears when
Silent mode is active using DSC.
Receive Icon: Appears when
receiving signals.
Transmit Icon: Appears when
transmitting.
Power Save Icon: Appears when
the radio is sleeping.
CTCSS/DCS Display: Indicates the
selected CTCSS or DCS tone when in
the Menu.
Channel Display: Displays the
selected channel in use.
