GMI D5090S-086 User Manual

3
D5090-086 - 5 A SIL 3 Relay Output Module for NE Load G.M. International ISM0267-4
Ordering Information

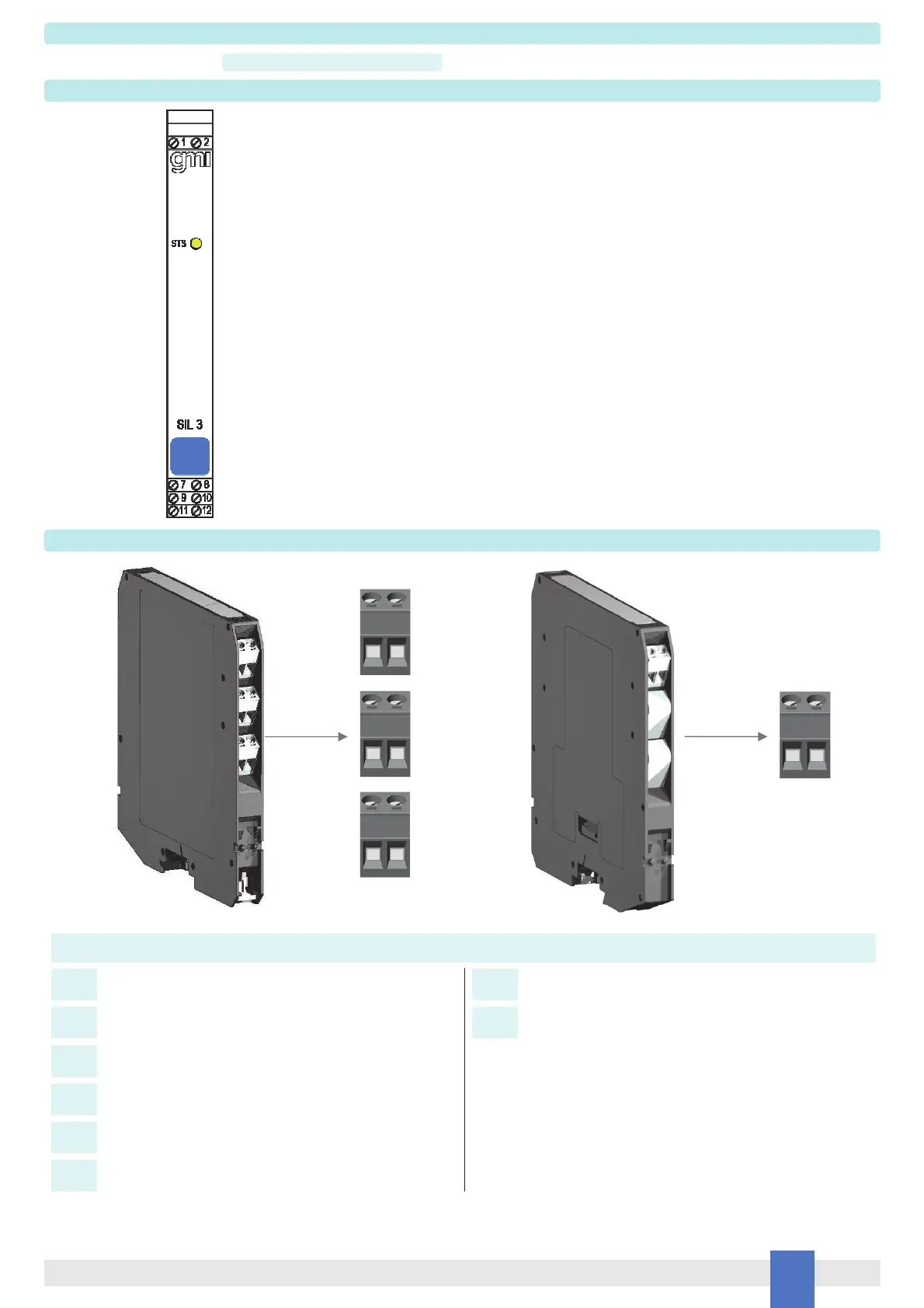

Front Panel and Features
SIL 3 according to IEC 61508:2010 Ed.2 for Tproof = 6 / 20 yrs (≤10% / >10 % of total SIF).
PFDavg (1 year) 1.44 E-05, SFF 96.70% for NE Load.
Systematic capability SIL 3.
Installation in Zone 2.
SIL 3 contact for NE load and contact for service purpose.
6 A inrush current at 24 Vdc / 250 Vac.
Line input monitoring in-field DIP Switch selectable.
Driving input voltage monitoring.
Input/Output isolation.
EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
ATEX, IECEx, UL & C-UL, INMETRO, EAC-EX, UKR TR n. 898, NEPSI, TÜV Certifications.
TÜV Functional Safety Certification.
Type Approval Certificate DNV and KR for maritime applications.
Simplified installation using standard DIN-Rail and plug-in terminal blocks or customized Termination Boards.
Model: D5090S-086
DIN-Rail accessories: Cover and fix MCHP196
CM1 Common pole of Normally Closed contact (Out 1)
Terminal block connections
SAFE AREA
NC1 pole of Normally Closed contact (Out 2)
CM1 Common pole of Normally Open contact (Service Load (Not SIL) out)
NO1 pole of Normally Open contact (Service Load (Not SIL) out)
7
8
9
10
+ Input
1
- Input
2
2
1
7 8
9 10
11 12
NC2 pole of Normally Closed contact (Out 1)
NC3 pole of Normally Closed contact (Out 2)
11
12
D5090
-086
