D5090-086 - 5 A SIL 3 Relay Output Module for NE Load G.M. International ISM0267-4
4

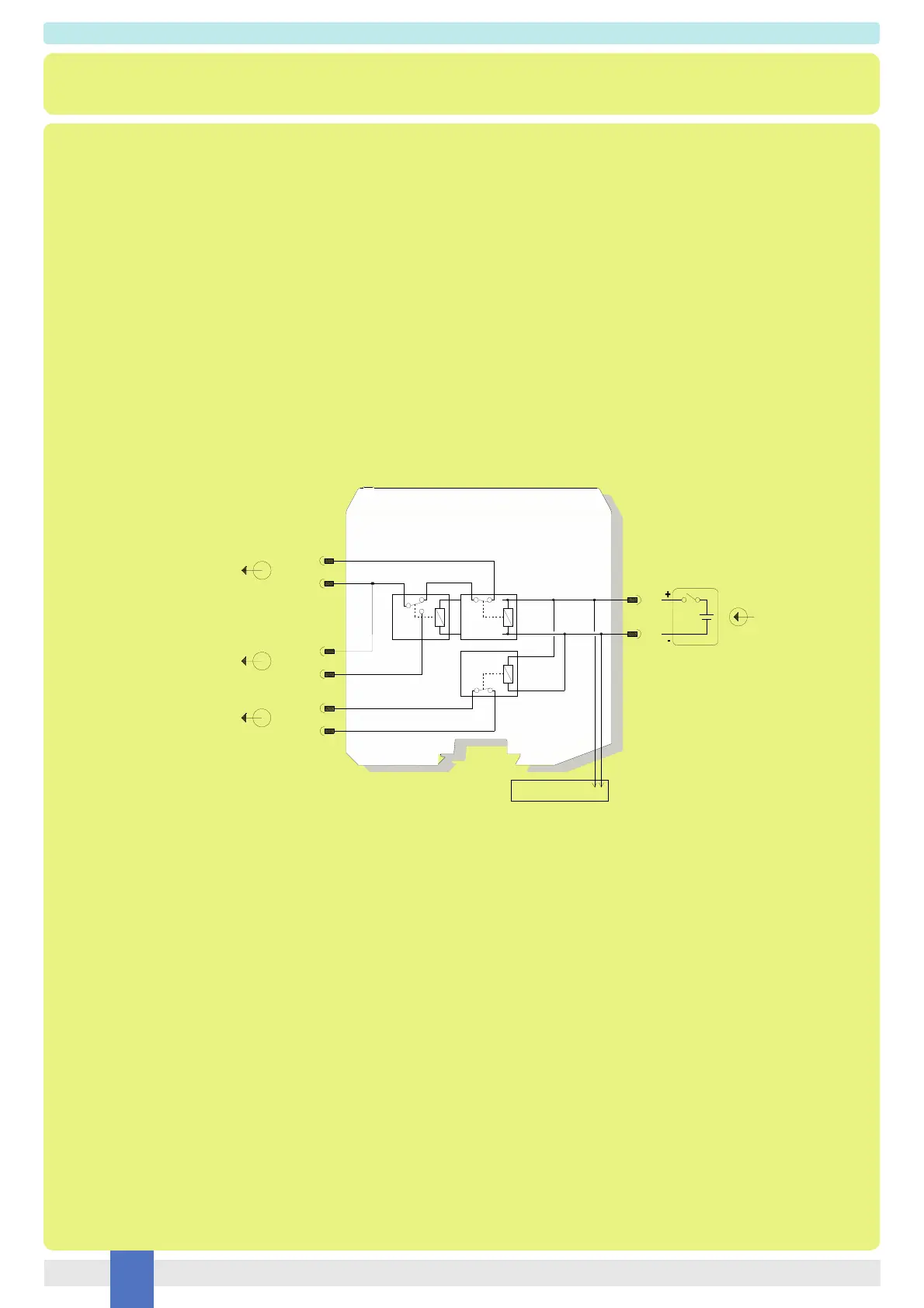

Function Diagram
SAFE AREA, ZONE 2 GROUP IIC T4,
NON HAZARDOUS LOCATIONS
Relay contact shown in de-energized position.
Terminals 7-11 and 8-12 are CLOSED; terminals 9-10 are OPEN.
See the following pages for Functional Safety applications with related SIL value.
MODEL D5090S-086
+
Out 1 (NC contact)
(NC2) 11
(CM1) 7
In
1
2
Service Load Out
Termination
board
connector
Not SIL
Out 2 (NC contact)
(NC1) 8
(NC3) 12
(CM1) 9
(NO1) 10
To Next Page
