GMI D5290S User Manual

3
D5290 - 10 A SIL 3 Relay Output Module for NE Load G.M. International ISM0111-8
Ordering Information
Front Panel and Features
SIL 3 according to IEC 61508:2010 Ed. 2 for Tproof = 14 / 20 yrs (≤10% / >10 % of total SIF).
PFDavg (1 year) 7.01 E-06, SFF 99.17 % for NE Load.
Systematic capability SIL 3.
Installation in Zone 2 / Division 2.
10 A SIL 3 contact for NE load and contact for service purpose.
16 A inrush current at 24 Vdc / 250 Vac.
Line input monitoring in-field DIP Switch selectable.
Driving input voltage monitoring.
Input/Output isolation.
EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
ATEX, IECEx, UL & C-UL, FM & FM-C, INMETRO, EAC-EX, UKR TR n. 898, NEPSI, TÜV Certifications.
TÜV Functional Safety Certification.
Type Approval Certificate DNV for marine applications.
Simplified installation using standard DIN-Rail and plug-in terminal blocks or customized Termination Boards.
Model: D5290S
DIN-Rail accessories: Cover and fix MCHP196
CM1 Common pole of: Normally Open contact (Out 1) and
Normally Closed contact (Service Load (Not SIL) out)

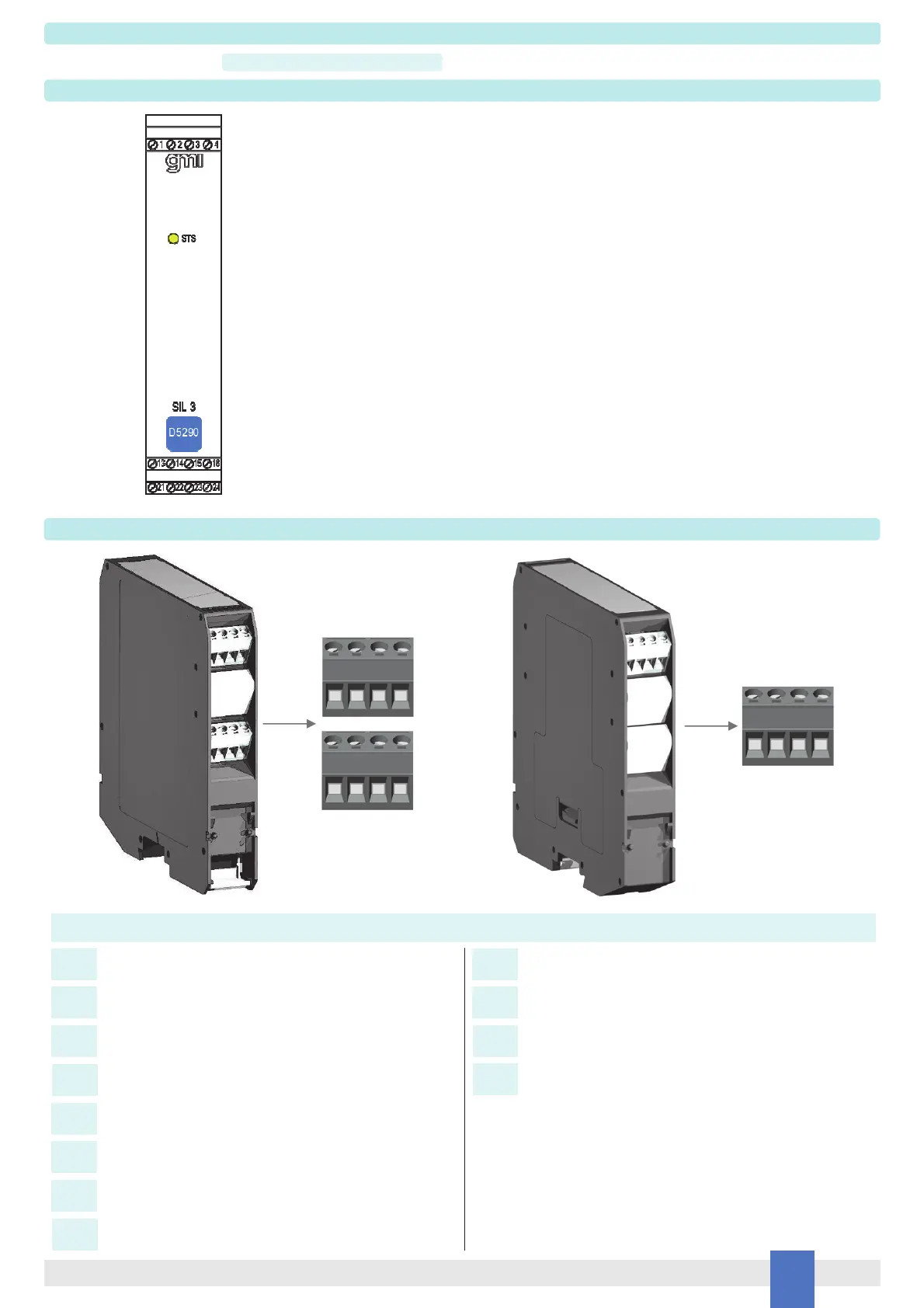

Terminal block connections
SAFE AREA
NO1 pole of Normally Open contact (Out 2)
NC1 pole of Normally Closed contact (Service Load (Not SIL) out)
13
14
15
+ Input
1
- Input
2
+ Input
3
- Input
4
Not used
16
4 3 2 1
13 14 15 16
21 22 23 24
NO2 pole of Normally Open contact (Out 1)
NO3 pole of Normally Open contact (Out 2)
Not used
21
22
23
Not used
24

GMI D5290S Specifications

General

Brand	GMI
Model	D5290S
Category	Control Unit
Language	English
