GO-DEVIL SURFACE DRIVE FNR User Manual

20

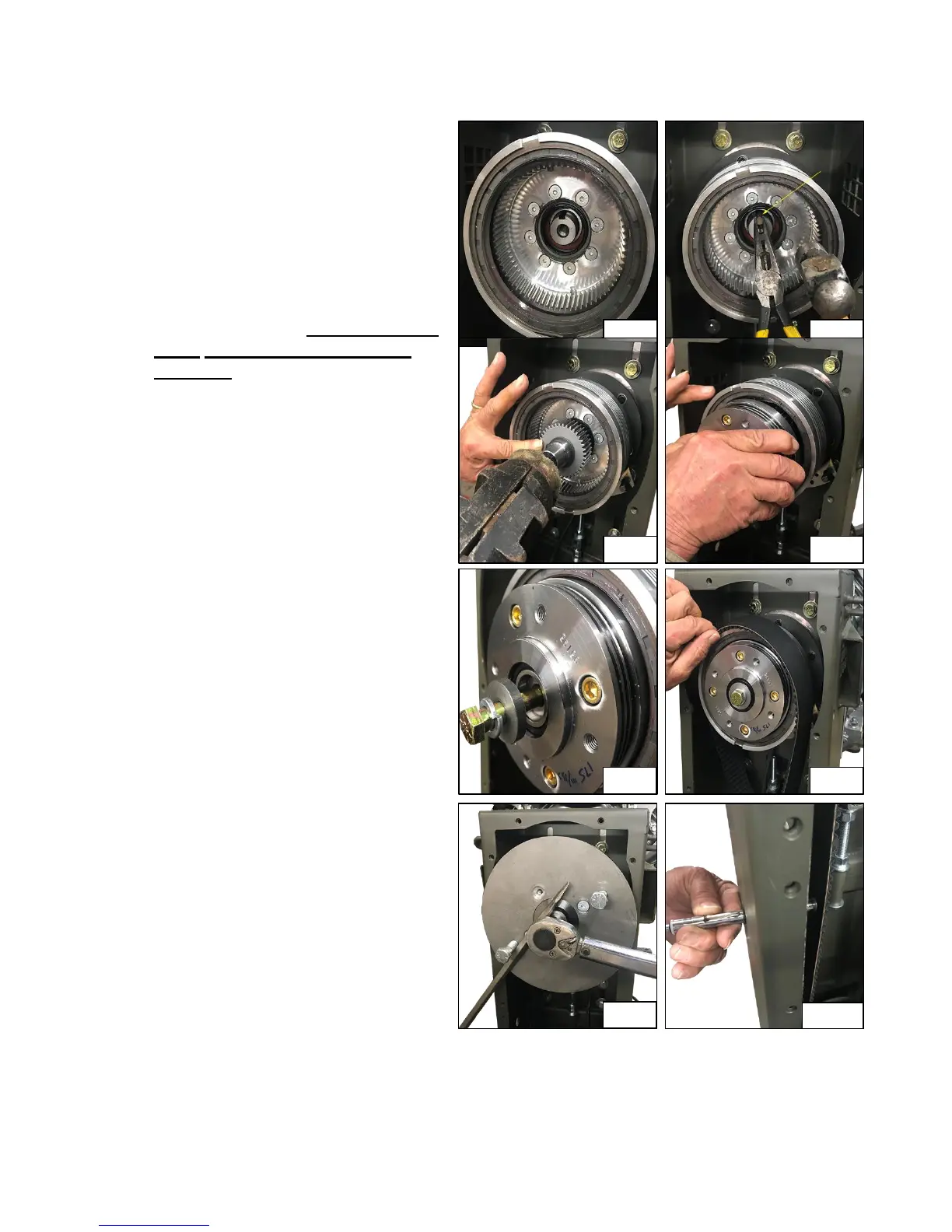

3. Apply a light film of oil (oil for
Transmission is Mobil 1 4T Racing
Oil) on the two seals in the
transmission housing. Slide the
sprocket/transmission housing
onto the crankshaft. (Fig.3)
4. Install the key with the square side
in the crankshaft by holding it with
a needle nose pliers and tapping it
in with a hammer. The key will be
tight. Do not file the key for a
loose fit! The key can be partially
installed when installing the shaft
extension. With the sun gear it will
slide the key all the way in. (Fig. 4)
5. Slide the shaft extension onto the
crankshaft with the key lined up
with the slot and tap in with a
rawhide or rubber hammer until it
bottoms out. (Fig. 5)
6. Add a film of oil on the seal in the
planet gear assembly. Now slide in
the planet gear assembly onto the
crankshaft. You will need to rotate
it for the gears to line up. After it is
pushed in, it will have a cushion of
air inside holding it from bottoming
out. This is not a problem. You
could remove the fill/drain plug
from the outer housing to relieve
this cushion. (Fig. 6)
7. Install the 5/8” center bolt with the
heavy machined washer and lock
washer as shown with Blue
Loctite. Tighten snug with a
wrench and you will torque it after
disc installation. (Fig. 7)
8. Install the belt over the
transmission assembly and onto
the bottom sprocket. It will be
necessary to remove the four bolts
in the bearing unit to enable you to
install the belt onto the bottom
sprocket and to tighten the eight-
frame mounting bolts after adjusting the drive belt. If the belt becomes tight when
tightening the bearing unit down loosen the 8 bolts that secure the engine and
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
