Go Power 10 AMP RVC-MPPT User Manual

[page 16] | gpelectric.com
10. RV-C INSTANCE NUMBER
10.1 RV-C INSTANCE NUMBER IDENTIFICATION

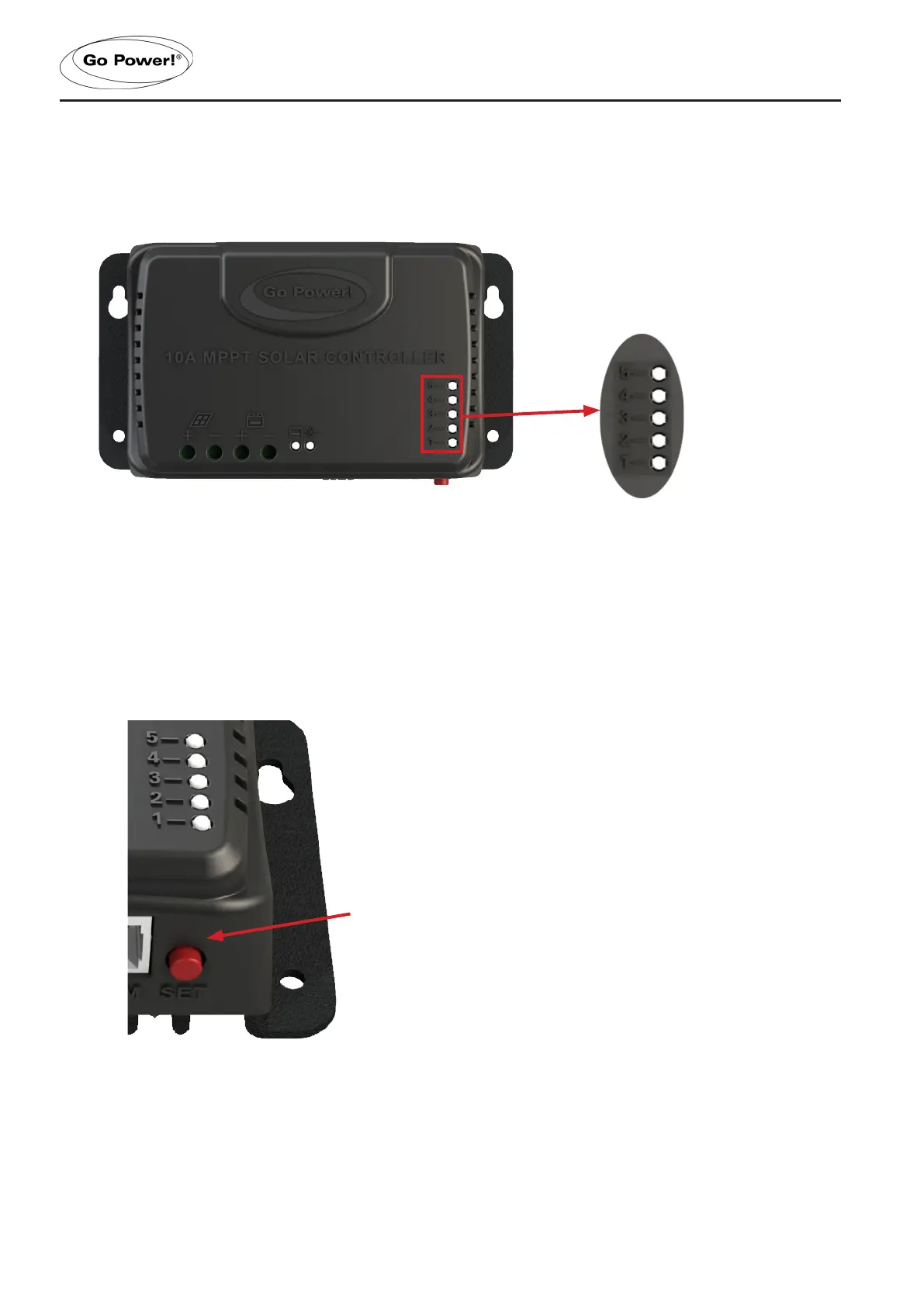

The RV-C instance of an individual controller can be identied by the 5 LEDs on the controller shown below.
10.1 CHANGING THE RV-C INSTANCE NUMBER
The instance of the solar controller on the RV-C network can be congured using the SET button and LEDs. Up to 5
unique instances are supported. To change the instance follow these steps:
1. Hold the SET button down for approximately 3 seconds until one of the LEDs starts ashing.
2. Press the SET button to change instance until the LED for the desired instance is ashing.
3. Press and hold the SET button for approximately 3 seconds to lock in the setting.

Go Power 10 AMP RVC-MPPT Specifications

General

Battery Voltage Range	8V – 16V
Battery Type	Lead Acid (AGM, GEL, Flooded), LiFePO4
Max Charge Current	10A
Max Panel Input Voltage	100Voc
Max PV Power Input	200W
Conversion Efficiency	≤98%
MPPT Tracking Efficiency	>99%
No-Load Loss	<10mA
Grounding	Negative
Max Wire Gauge	8 AWG
Operating Temperature	-35 to 45°C
Storage Temperature	-35 to 75°C
Humidity	95% N.C.
Water Ingress Protection	IP32
Altitude	< 3000m
Protection	Solar/battery reverse polarity Solar/battery over voltage Solar/battery short circuit Over temperature

Weight and Dimensions

Dimensions (H x W x D)	3.35” x 6.1” x 1.57”
Weight	0.67lbs (300g)
