Go Power 10 AMP RVC-MPPT User Manual

[page 8] | gpelectric.com
MAXIMUM POWER POINT TECHNOLOGY

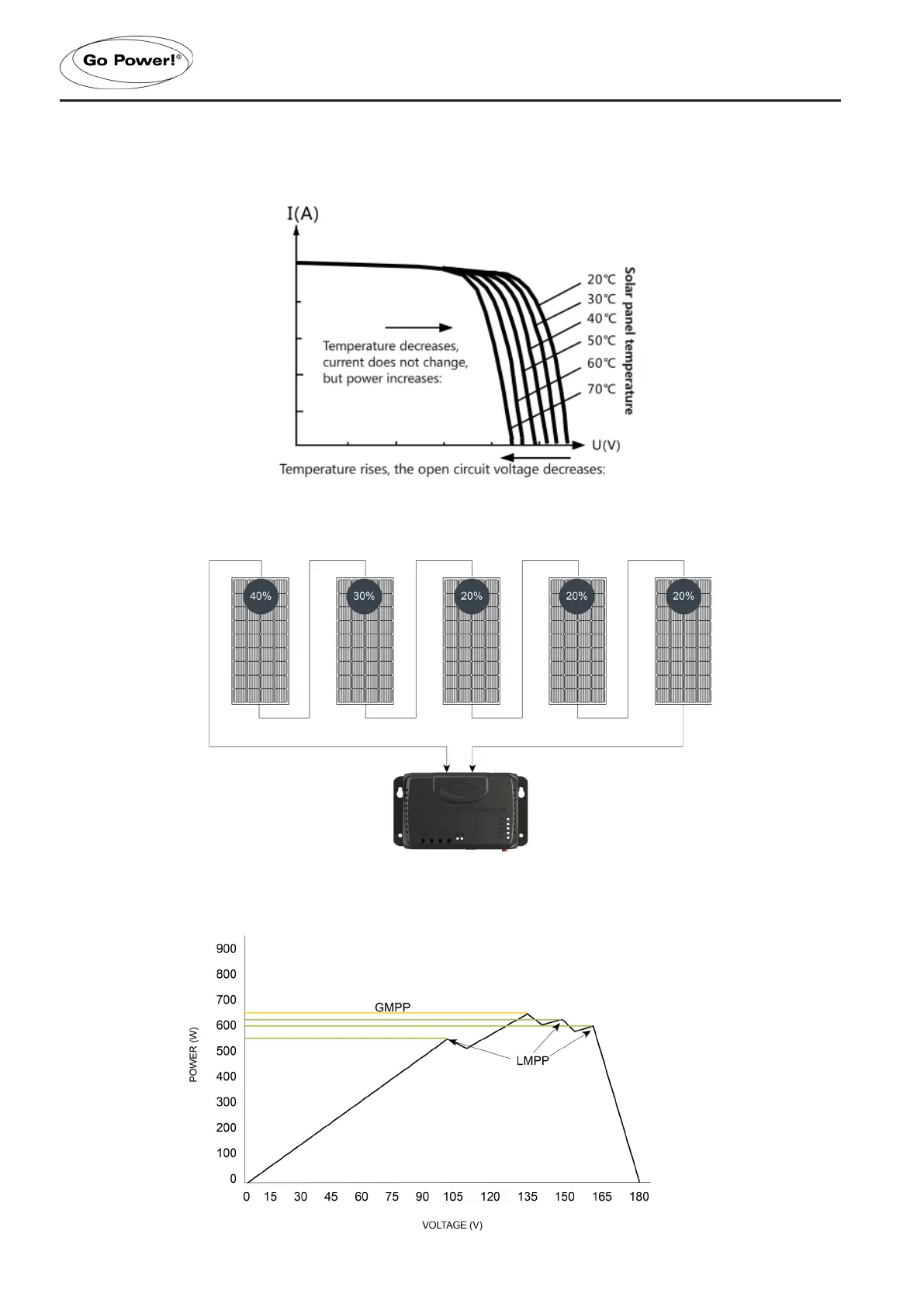

The graph below shows how the IV curve of a solar panel changes with varying temperatures.
In partially shaded conditions there can also be multiple peaks in the P-V curve that can confuse an MPPT algorithm.
Shown in the diagram below is a series string of solar panels.
A corresponding graph below shows lower maximum power points (LMPP) and the greater maxim power point (GMPP)
that will result in maximum energy transfer. The GP-RVC series has a smart algorithm that will always choose the right
peak.

Go Power 10 AMP RVC-MPPT Specifications

General

Battery Voltage Range	8V – 16V
Battery Type	Lead Acid (AGM, GEL, Flooded), LiFePO4
Max Charge Current	10A
Max Panel Input Voltage	100Voc
Max PV Power Input	200W
Conversion Efficiency	≤98%
MPPT Tracking Efficiency	>99%
No-Load Loss	<10mA
Grounding	Negative
Max Wire Gauge	8 AWG
Operating Temperature	-35 to 45°C
Storage Temperature	-35 to 75°C
Humidity	95% N.C.
Water Ingress Protection	IP32
Altitude	< 3000m
Protection	Solar/battery reverse polarity Solar/battery over voltage Solar/battery short circuit Over temperature

Weight and Dimensions

Dimensions (H x W x D)	3.35” x 6.1” x 1.57”
Weight	0.67lbs (300g)
