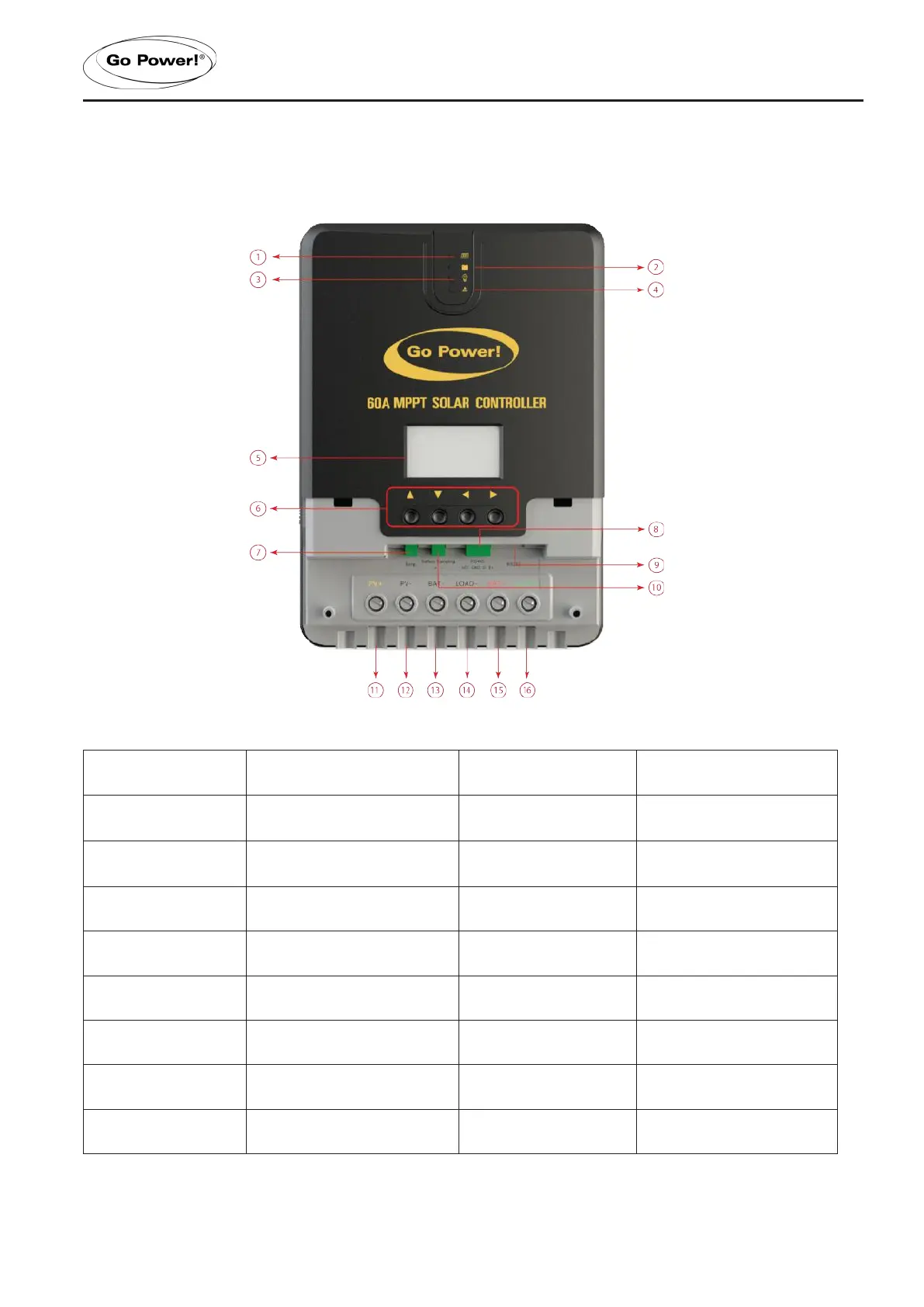

1.4 APPEARANCE
NO. NAME NO. NAME
1 Charging indicator 9
Communication
port
2 Battery indicator 10
Battery voltage
compensation interface
3 Load indicator 11 Solar Panel “+”
4 Error indicator 12 Solar Panel “-”
5 LCD screen 13 Battery “-”
6 Operating buttons 14 Load “-”
7
External temperature
sampling interface
15 Battery “+”
8
RS485 communication
interface
16 Load “+”
