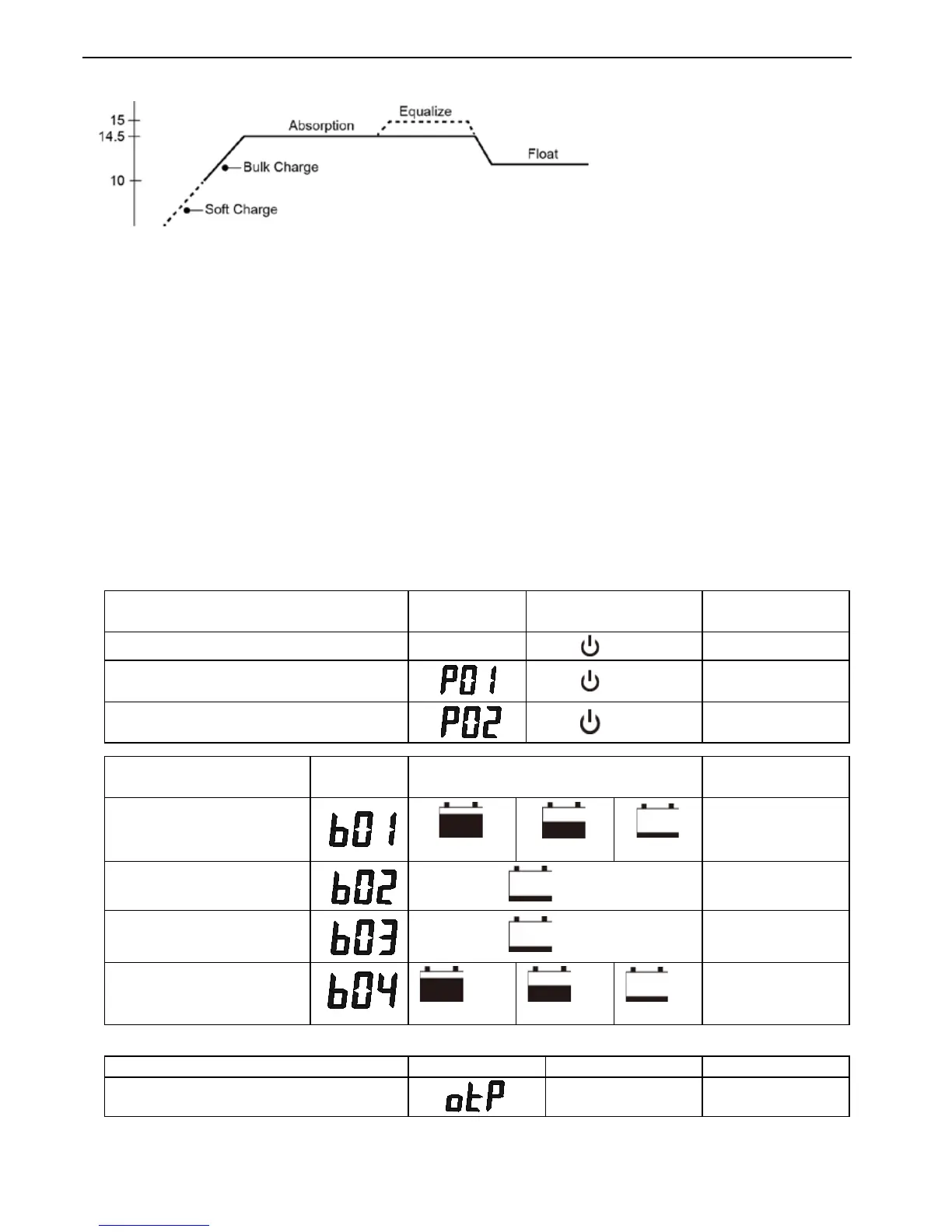

Wet Cell Battery Charging Algorithm
Auto Equalize: The GP-
PWM-10 has an automatic
equalize feature that will
charge and recondition your
batteries once a month at a
higher voltage to ensure that
any excess sulfation is
removed. This feature is recommended for Flooded batteries only. Check with your battery
manufacturer. This feature is only available for wet cell or flooded batteries.
Soft Charge- When batteries suffer an over-discharge, the controller will softly ramp the battery
voltage up to 10V.
Bulk Charge-Maximum current charging until batteries rise to Absorption level
Absorption Charge-Constant voltage charging and battery is over 85%
Equalization Charge*- Only for WET battery (Flooded lead acid) or Calcium battery type, when
the battery is deeply drained below 10V, it will automatically run this stage to bring the internal
cells as an equal states and fully complement the loss of capacity. (Gel and AGM battery do not
run Equalization charge)
Float Charge-Battery is fully charged and maintained at a safe level. A fully charged battery has
a voltage of more than 13.6 Volts.
Viewing the Controller display information
Solar Panel Abnormal Mode
LCD
display
LED indication LCD backlight
Solar panel weak
Flash
ON
Solar panel reverse connection
Flash
Flash
Solar panel over voltage (> 26.5V)
Flash
Flash
Battery Abnormal
Mode
LCD
display
LED indication LCD backlight
Battery disconnected
or less than 3.0V
Flash Flash
Flash
Flash
Battery reverse
connection
Flash
Flash
Battery over voltage
than > 17.5V
Flash
Flash
Battery temperature
over 65C
Flash Flash
Flash
Flash
Solar Controller Abnormal Mode
LCD Display
LED indication
LCD backlight
The controller over temp. protection
Flash
