GP-PWM-10

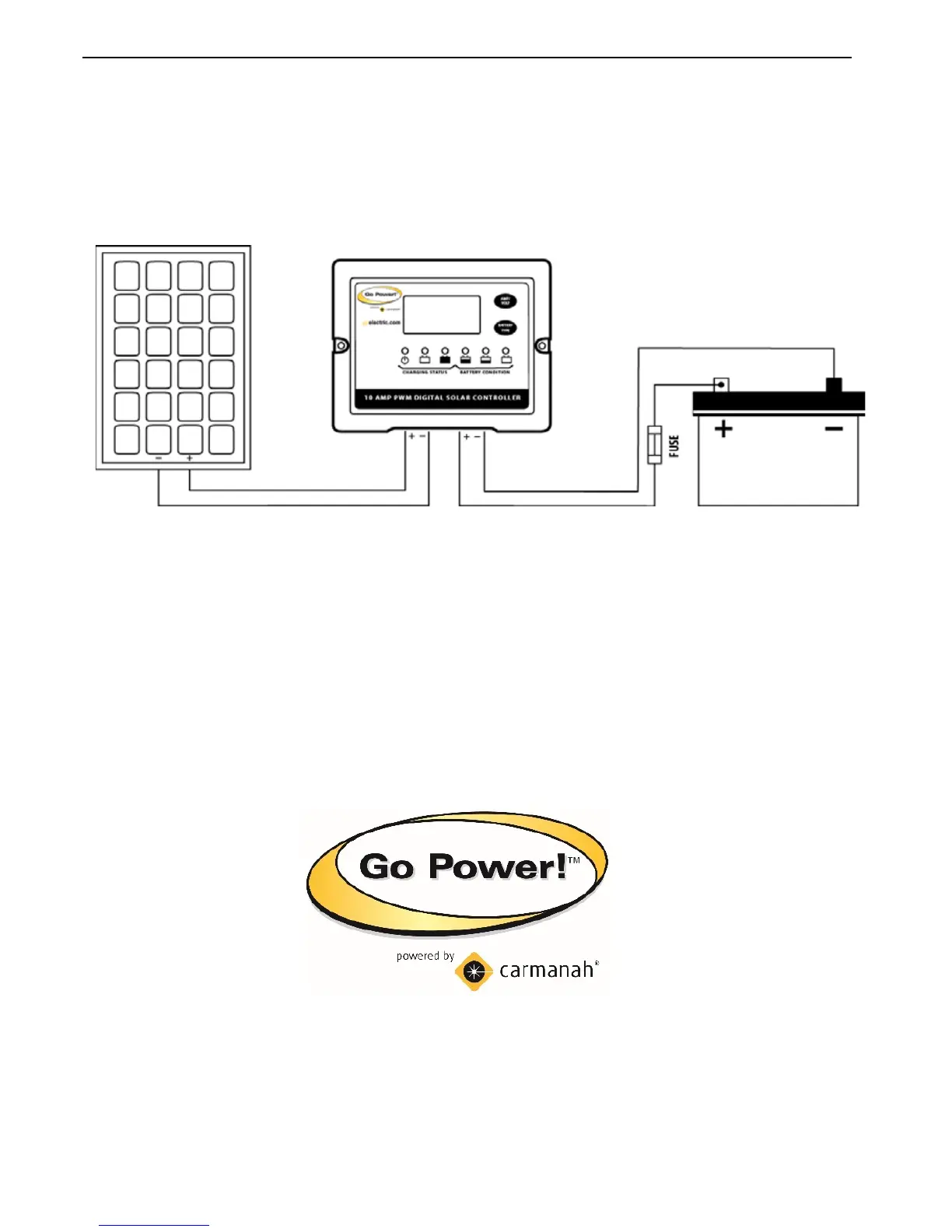

9.0 Wiring Diagram

The GP-PWM-10 is based on a 10 amp max input from the solar modules. Use the wiring

diagram to connect your battery to the battery terminals on the solar controller. First, connect the

battery to the controller and then connect the solar panel to the controller.

The controller will not work unless there is a battery connected to the battery terminals.

Note: Use a 10 amp fuse or breaker.

Solar Panel +

Solar Panel –

Battery +

Battery -

By Carmanah Technologies

GP_MAN_GP-PWM-10_vA

gpelectric.com
