Gocycle
®
Owner’s Manual for GS, August 2018
© Karbon Kinetics Limited. All Rights Reserved. 54

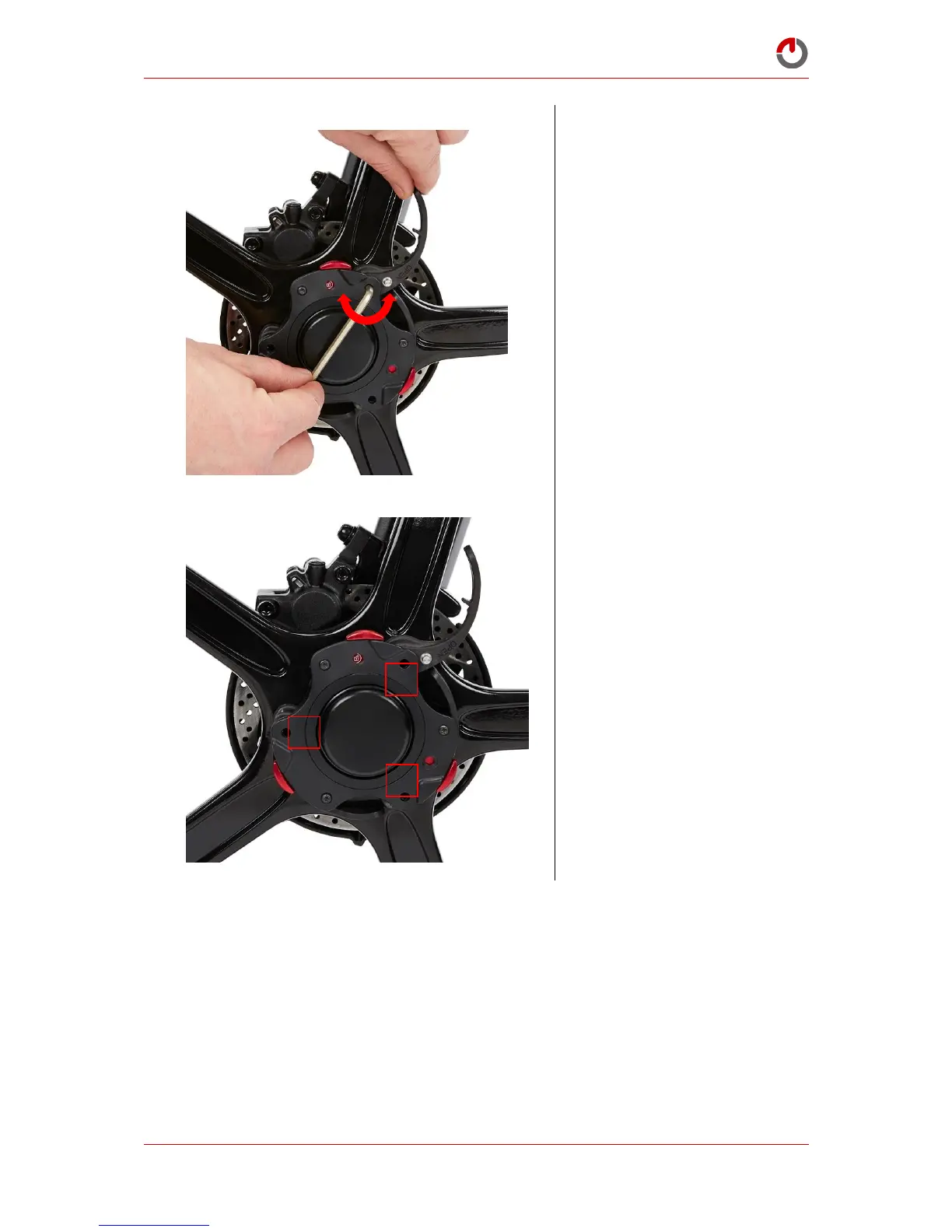

Insert the 4mm Allen key
into the stud and turn
clockwise to reduce the
cam lever free play and
anticlockwise to increase
cam lever free play. Hold
the cam lever lightly while
turning the allen key in
order to detect the
engagement point and Free
play. To check if the
adjustment has corrected
the free play, remove the
allen key and close the cam
lever to allow the system to
set and then reopen and re-
check free play. Adjust
until you are satisfied that
the free play is 10mm or
less.
Repeat the process for the
other two cam levers. Then
complete one more full
check of each cam lever to
ensure that, once adjusted
and settled, the resistance to
close the cam levers is equal
across the three levers.
