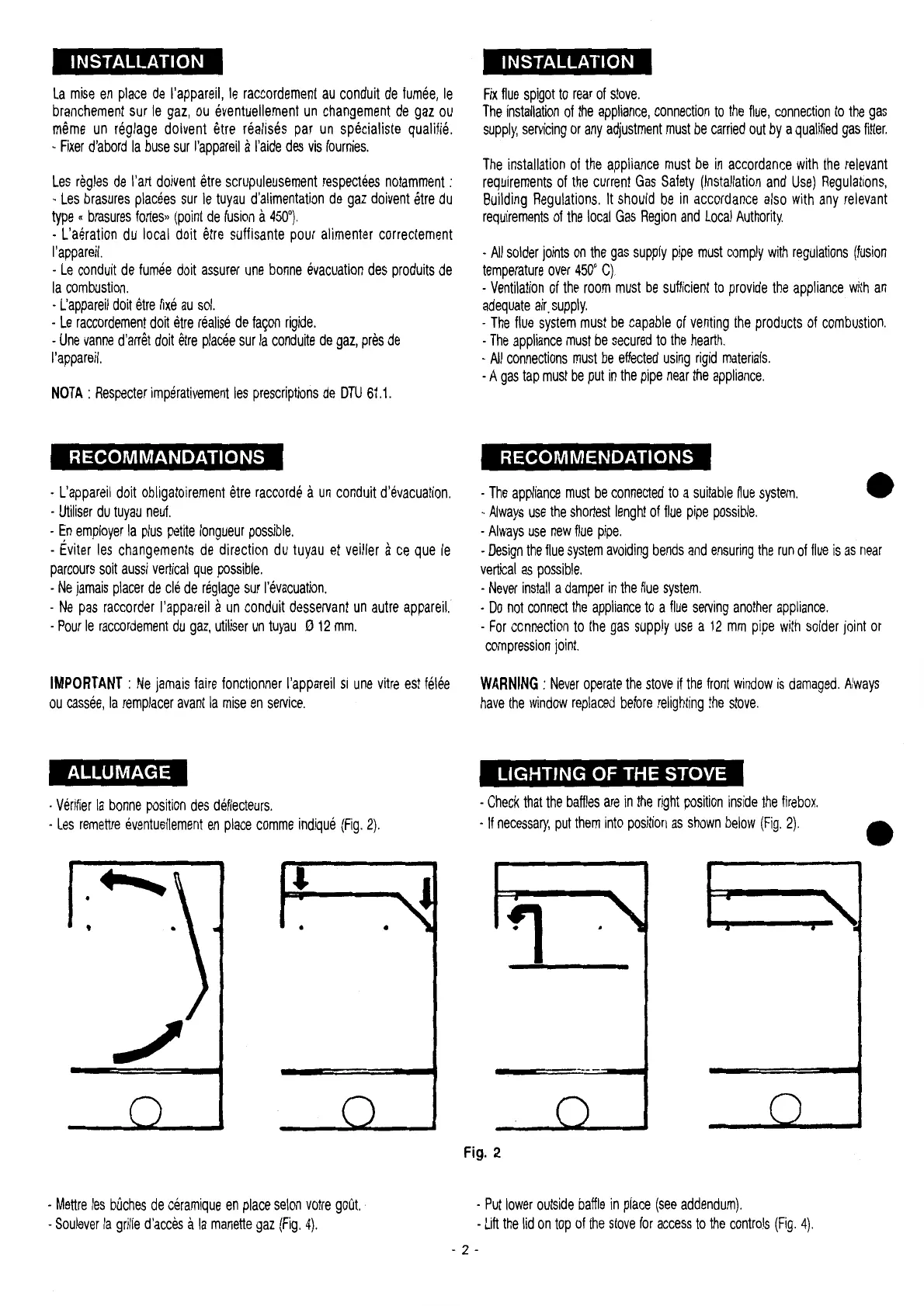

INSTALLATION
La
mise
en
place
de
l'appareil,
le
raccordement
au
conduit
de
fumée,
le
branchement
sur
le
gaz,
ou
éventuellement
un
changement
de
gaz
ou
même
un
réglage
doivent
être
réalisés
par
un
spécialiste
qualifié.
-
Fixer
d'abord
la
buse
sur
l'appareil
à
l'aide
des
vis
fournies.
Les
règles
de
l'art
doivent
être
scrupuleusement
respectées
notamment
:
-
Les
brasures
placées
sur
le
tuyau
d'alimentation
de
gaz
doivent
être
du
type
brasures
fortes,
(point
de
fusion
à
450°}.
-
L'aération
du
local
doit
être
suffisante
pour
alimenter
correctement
l'appareil.
-
Le
conduit
de
fumée
doit
assurer
une
bonne
évacuation
des
produits
de
la
combustion.
-
L'appareil
doit
être
fixé
au
sol.
-
Le
raccordement
doit
être
réalisé
de
façon
rigide.
-Une
vanne
d'arrêt
doit
être
placée
sur
la
conduite
de
gaz,
près
de
l'appareil.
NOTA
:
Respecter
impérativement
les
prescriptions
de
DTU
61.1.
RECOMMANDATIONS
-
L'appareil
doit
obligatoirement
être
raccordé
à
un
conduit
d'évacuation.
-
Utiliser
du
tuyau
neuf.
-
En
employer
la
plus
petite
longueur
possible.
-
Éviter
les
changements
de
direction
du
tuyau
et
veiller
à
ce
que
le
parcours
soit
aussi
vertical
que
possible.
-
Ne
jamais
placer
de
clé
de
réglage
sur
l'évacuation.
-
Ne
pas
raccorder
l'appareil
à
un
conduit
desservant
un
autre
appareil.
-Pour
le
raccordement
du
gaz,
utiliser
un
tuyau
0
12
mm.
IMPORTANT
:
Ne
jamais
faire
fonctionner
l'appareil
si
une
vitre
est
fêlée
ou
cassée,
la
remplacer
avant
la
mise
en
service.
ALLUMAGE
-
Vérifier
la
bonne
position
des
déflecteurs.
-
Les
remettre
éventuellement
en
place
comme
indiqué
(Fig.
2)
.
-
Mettre
les
bûches
de
céramique
en
place
selon
votre
goût.
-
Soulever
la
grille
d'accès
à
la
manette
gaz
(Fig.
4).
INSTALLATION
Fix
flue
spigot
tc
rear
of
steve.
The
installation
of
the
appliance,
connection
tc
the
flue,
connection
tc
the
gas
supply,
servicing
or
any
adjustment
must
be
carried
out
by
a
qualified
gas
fitter.
The
installation
of
the
appliance
must
be
in
accordance
with
the
relevant
requirements
of
the
current
Gas
Safety
(Installation
and
Use)
Regulations,
Building
Regulations.
lt
should
be
in
accordance
also
with
any
relevant
requirements
of
the
local
Gas
Region
and
Local
Authority.
-
Ali
solder
joints
on
the
gas
supply
pipe
must
comply
with
regulations
(fusion
temperature
over
450°
C).
-
Ventilation
of
the
room
must
be
sufficient
to
provide
the
appliance
with
an
adequate
air.
supply.
-
The
flue
system
must
be
capable
of
venting
the
products
of
combustion.
-
The
appliance
must
be
secured
to
the
hearth.
-
Ali
connections
must
be
effected
using
rigid
materials.
-A
gas
tap
must
be
put
in
the
pipe
near
the
appliance.
RECOMMENDATIONS
-
The
appliance
must
be
connected
to
a
suitable
flue
system.
-
Always
use
the
shortest
lenght
of
flue
pipe
possible.
-
Always
use
new
flue
pipe.
-
Design
the
flue
system
avoiding
bends
and
ensuring
the
run
of
flue
is
as
near
vertical
as
possible.
-
Never
instail
a
damper
in
the
flue
system.
-
Do
not
connect
the
appliance
tc
a
flue
serving
another
appliance.
-
For
connection
tc
the
gas
supply
use
a
12
mm
pipe
with
solder
joint
or
compression
joint.
WARNING
:
Never
operate
the
steve
if
the
front
window
is
damaged.
Always
have
the
window
replaced
before
relighting
the
steve.
LIGHTING OF THE STOVE
-
Check
that
the
baffles
are
in
the
right
position
inside
the
firebox.
-
If
necessary,
put
them
into
position
as
shown
below
(Fig.
2).
Fig.
2
-
Put
lower
outside
baffle
in
place
(see
addendum).
-
Lift
the
lid
on
top
of
the
steve
for
access
tc
the
contrais
(Fig.
4).
- 2 -
