2005
Screw-down Type
Godiva Part Number 56544/01 Light Alloy and 56544/05 Gunmetal (Instantaneous
Connector Versions)
©Hale Products Europe LTD, Warwick
36

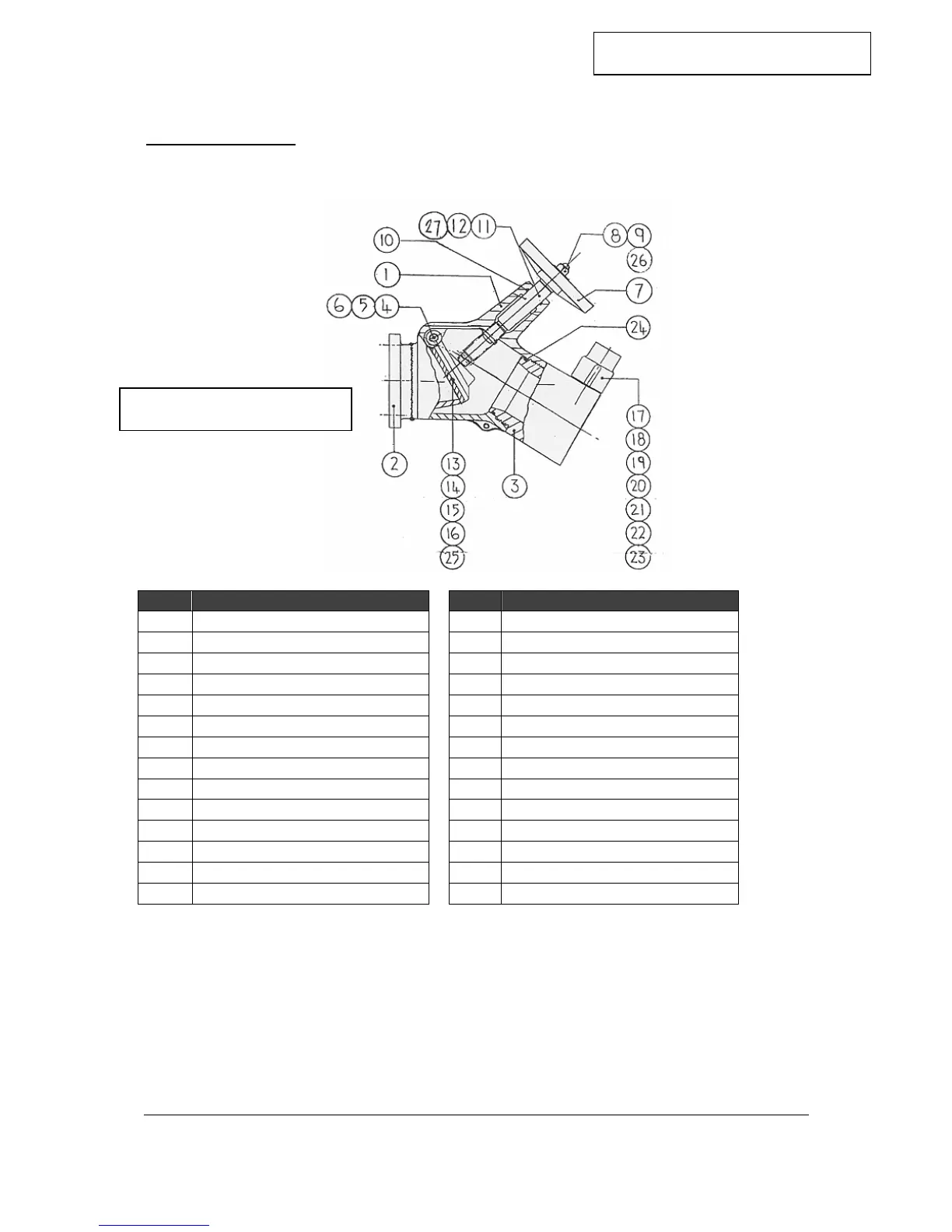

Pump Delivery Valve 2 1/2" Female
Instantaneous (single twist) to BS336
Dia. A
Item Description
Item Description
1 Main Body 15 Retaining Washer
2 Inlet 16 Washer Insert
3 Outlet 17 Instantaneous washer
4 Pivot Pin 18 Twist Release Knob
5 O Ring 19 Release Cam
6 Circlip 20 Release Spring
7 Screw Down Handle 21 Release Plunger
8 Domed Nut 22 Knob Closure Disc
9 Spring Washer 23 Nyloc Nut
10 O Ring 24 O Ring
11 Screw Down Spindle 25 Countersunk Screw
12 Roll Pin 26 Plain Washer
13 Non Return Flap 27 Moly Grease
14 Non Return Flap Washer
Twice Yearly Servicing Procedure, Full Assembly:
A. Check that Screw Down Spindle "11" rotates freely. Regrease with B.F.L. Moly
Grease.
B. Check that Non-Return Flap "13" is free to articulate and that Washer "14" is
undamaged. Regrease Pivot Pin "4".
C. Check O Rings "10", "5" and "24". Replace where necessary.
GP/146/99
WTmaint - Issue9. 10-2005October 2005
