Product Layout

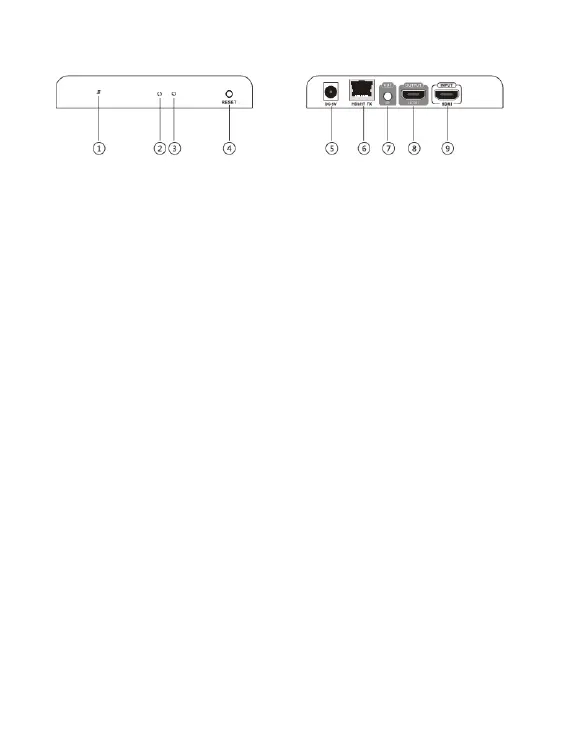

Figure 1: Transmitter (TX)
1 Power LED: On when the Transmitter is
powered
2 Activity LED: Blinks during data
transmission
3 Link LED: On when the Cat5e/6 cable is
connected/linked properly to Transmitter's
and Receiver's RJ45
4 Reset: Press to reset if HDMI extender
doesn't work properly
5 Power Jack: Connect the included power
adapter here
6 RJ45 Out: Link to Receiver's RJ45 In using a
Cat5e/6 cable
7 IR Out: Infrared 3.5mm socket. Plug IR
Blaster Extension Cable here. See
instructions on page 8.
8 HDMI Out: Connect an HDMI display here
for local monitoring of the HDMI signal
