CALIBRATION: CARTRIDGE OVERHANG, ALIGNMENT & SPEED
OWNER’S MANUAL page 13
allignment 66 mm. allignment 120,9 mm.
Stroboscope 50Hz
51015
20
Overhang
Stroboscope 50Hz
510
1520
Overhang
Stroboscope 50Hz
5101520
Overhang

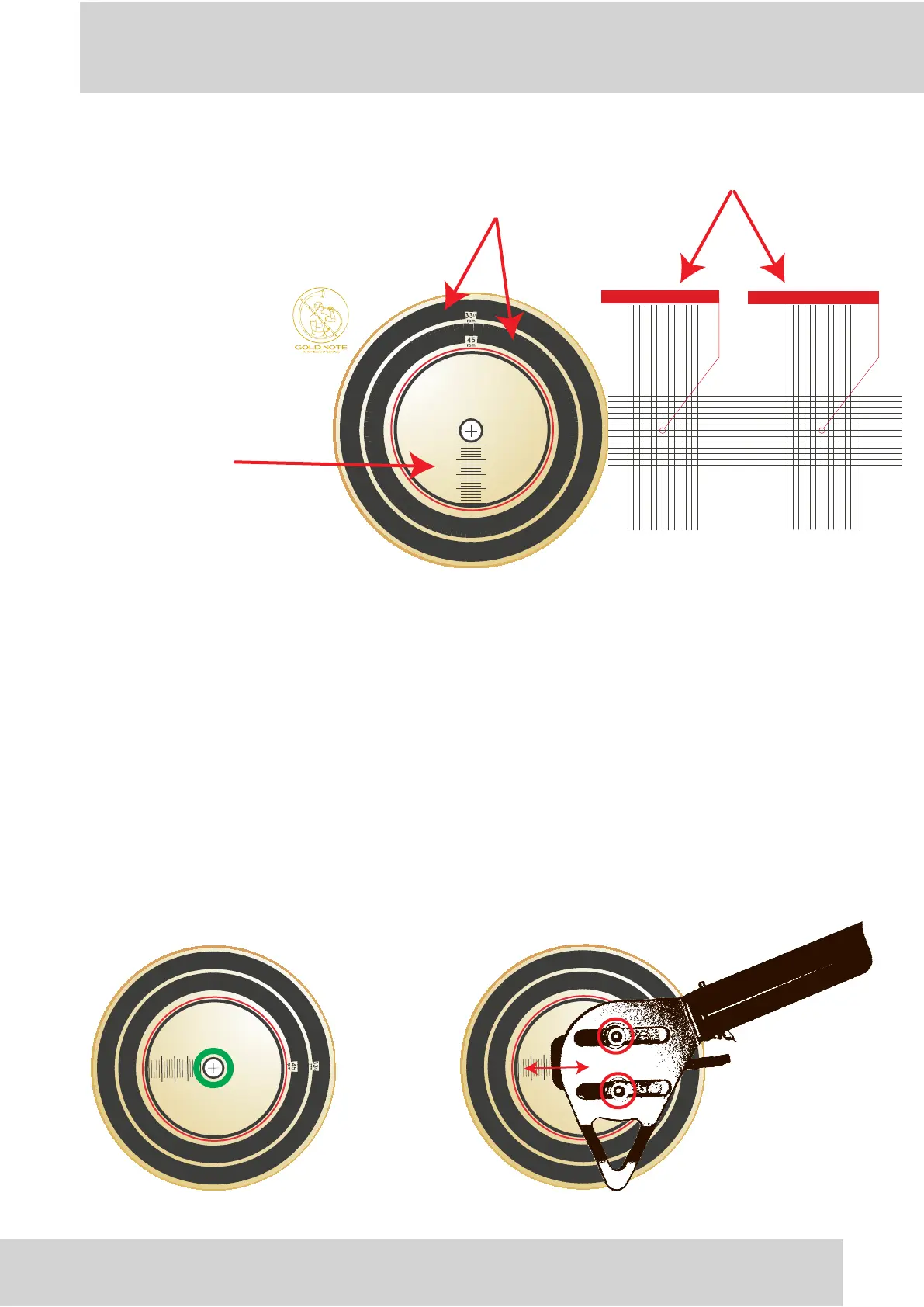

All GOLD NOTE Turntables and Tonearms are supplied with the Gold Note Calibration Tool allows
calibrating correctly the:
A) Phono Cartridge alignment
B) Overhang
C) 45 and 331/3 rpm speed lines for which is
necessary a strobo light to check
B
C
A
OVERHANG:
To get the right Overhang it is necessary to insert the Gold Note Calibration Tool into the turntable
record Pin and position the cartridge Tip on the indicated overhang of the phono cartridge
manufacturer as well indicated in the picture below.
SPEED ADJUSTMENT:
To verify the right speed use a strobo light (eventually a home NEON light works the same).
The right speed would let you see the sequence of black rectangular signs being stably stopped while
the turntable is playing.
The Outer line is for checking the 33⅓rpm
The Inner line is for checking the 45rpm
