Golden Technologies PR-756MC - Electrical Diagrams; Single Motor Electrical Diagram

REVA_082012
17

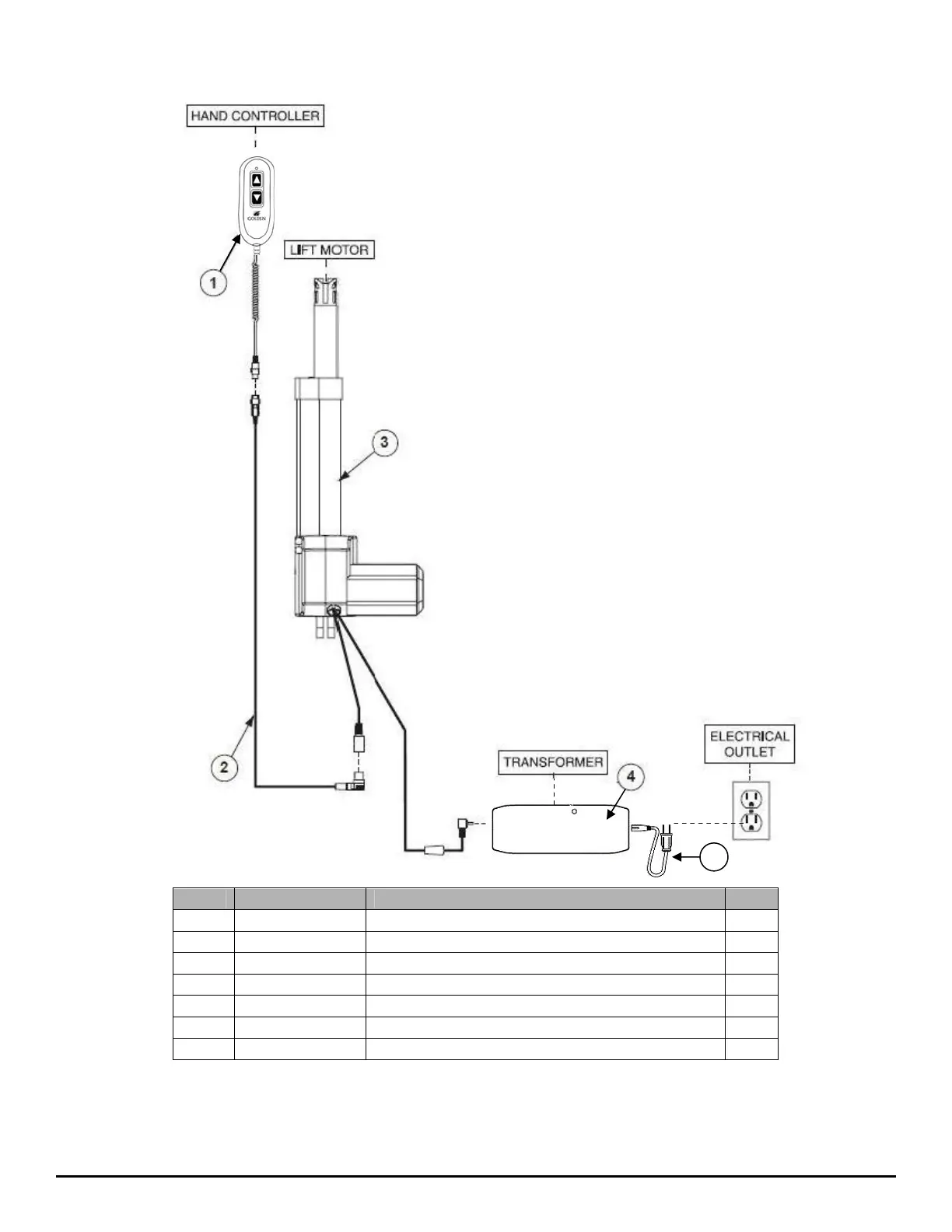

Single Motor Electrical Diagram
REF # PART NUMBER DESCRIPTION QTY.
1* ZK1200-HC Hand Wand, 2 Button LED with Walnut Burl Grain 1
1 ZK-1100-HC Hand Wand, 2 Button LED with Walnut Burl Grain 1
2* ZK-20-EXT Hand Control Extension 62” Long 1
2 ZK-10-EXT Hand Control Extension 62” Long 1
3 GM1500-LM Motor Chair Led Non Transformer 1
4
GM1501-A
Motor Chair Transformer
1
5
GM1501-APUS Transformer Cord
1
LED Light
DC Powe
r
5
Smart Tek System
Models: PR-401, PR-401L, PR-747, PR-643, PR-410, PR-751TY, PR-752, PR-451, PR-501JP, PR-501S, PR-501M,
PR-501L, PR501T, PR-501S-23, PR-200, PR-355M, PR-355L, PR-359M, and PR-359L
* Asterisk designates the current style.
