Golden Technologies PR-756MC - Dual Motor

REVA_082012
18

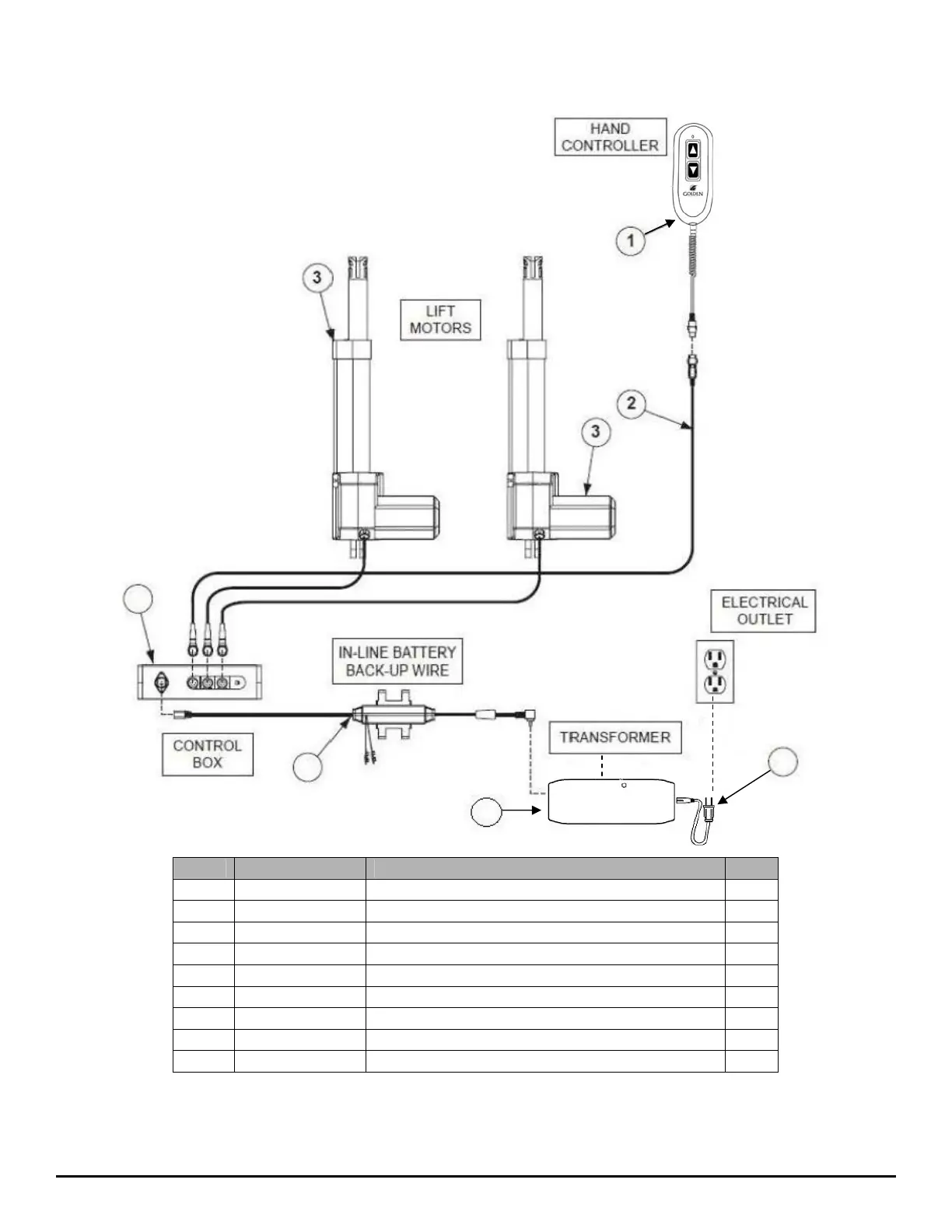

Dual Motor Electrical Diagram
REF # PART NUMBER DESCRIPTION QTY.
1* ZK1200-HC Hand Wand, 2 Button LED with Walnut Burl Grain 1
1 ZK-1100-HC Hand Wand, 2 Button LED with Walnut Burl Grain 1
2* ZK-20-EXT Hand Control Extension 62” Long 1
2 ZK-10-EXT Hand Control Extension 62” Long 1
3 GMOKI-28W Okin 26-28 Wide Motor 2
4 GMOKI-CB Motor Chair Okin 26-28 Wide Control Box 4/2003 2
5 GM1502L Motor Chair Battery Back Up Wire with LED 1
6
GM1501-A
Motor Chair Transformer
1
7 GM1501-APUS Transformer Cord 1
* Asterisk designates the current style.
5
4
6
7
LED Light
DC Powe
r
Smart Tek System
Model: PR-501M-26D, PR-501L-26D, PR-501T-28D
