Golden Technologies PR512MLA - Installation Instructions; Power Connections & Setup

7
L.E.D. light
L.E.D. light
From motor
To outlet
115-120V A.C.
DC Power
Bottom view of
Transformer
Transformer
Plug
PR-756MC 24 in. 24 in.
PR-756L 25 in. 25 in.
PR-505JP 21 in. 21 in.
PR-505S 22 in. 22 in.
PR-505M 23 in. 23 in.
PR-505L 24 in. 24 in.
PR-505T 25 in. 25 in.
PR-505M26 22 in. 22 in.
PR-508M 24 in. 24 in.
PR-510SME 23 in. 23 in.
PR-510MLA 24 in. 24 in.
PR-512MLA 24 in. 24 in.
PR-632 22 in. 22 in.
PR-713 26 in. 26 in.
Install two 9 volt batteries
in transformer for battery
backup (See page 15)
(batteries not included)

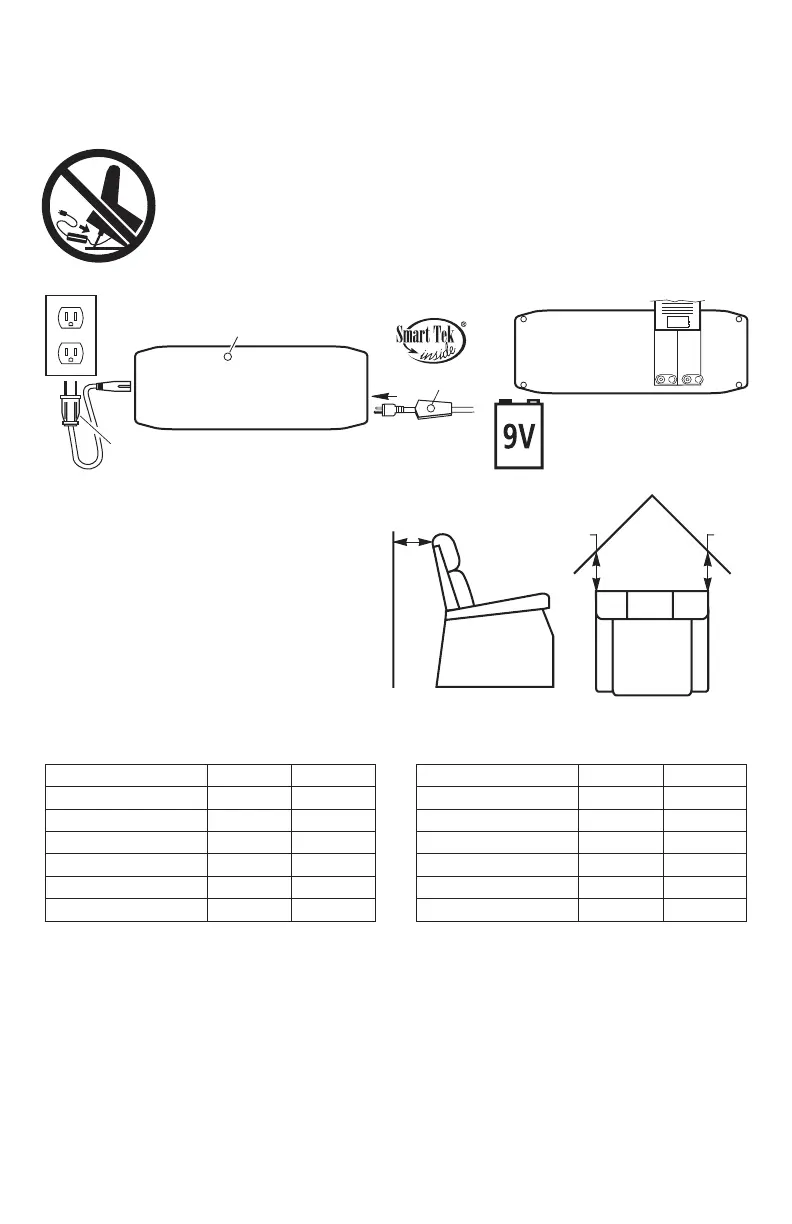

3. Place the chair in the desired
position in the room, keeping it 26"
away from the wall. If placing the
chair into a corner, keep it 26" from
the wall as shown. See distance
chart below for your model.
Wall
Side
View
Corner
To p
View
26"
26" 26"
Distance Required From Wall When Reclined
Model Number Wall Corner Model Number Wall Corner
4. Adjust the leg levelers on the bottom of the chair if necessary to level the chair.
Some high pile carpets can obstruct the footrest operation by rubbing against
it. Raise the levelers to a height above the pile.
5. Slide the hand control from between the back and arm out toward the back of
the chair. Secure the cord into the quick release cable clamp located above the
magazine pocket on the arm of the chair.
INSTALLATION MAXICOMFORT MODELS
1. Remove the transformer from the transformer box (located behind the lower outside
back) and install two 9 volt alkaline batteries into the sockets on the transformer.
P
A
T
E
N
T
E
D
Place transformer on the floor behind the chair.
2. Plug the transformer into a 115-120V 60Hz A.C. outlet and
connect the power cable from the chair into the transformer as
shown. Power cable is located under the chair attached to the
motor shaft with white zip tie. Remove zip tie, extend cable under
and out behind the chair.
