GOLDONI Aster 45 - 7-Pin Trailer Socket

27

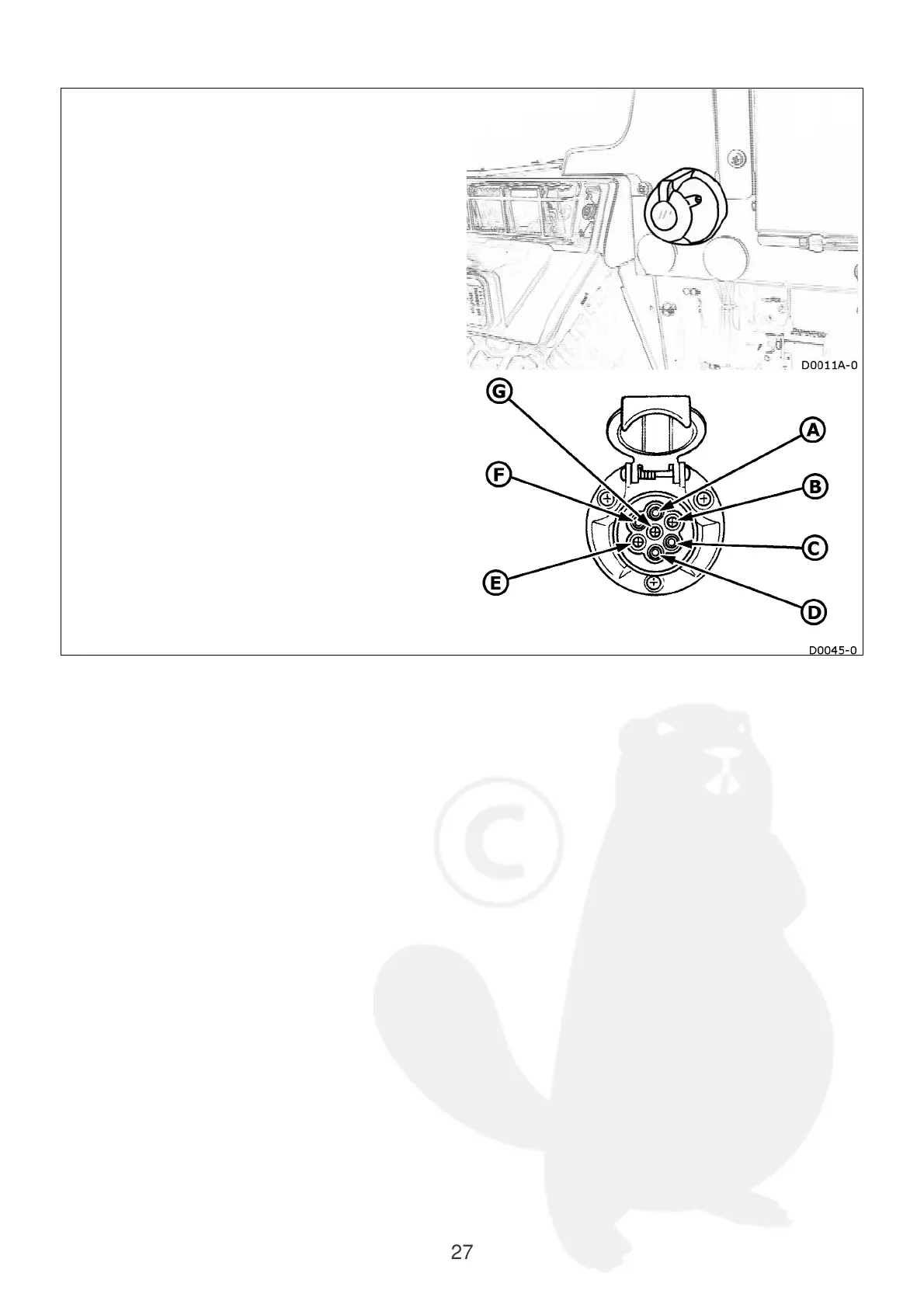

7-pin trailer socket
This socket is used to connect lights, turn
indicators and other electrical devices for a
trailer or implement.
Supplementary lights must be used if an
implement obscures the turn indicators or
other lights at the rear of the machine.
Terminal functions:
A Lh turn indicator
B Vacant
C Ground
D Rh turn indicator
E Rh rear light
F Brake lights
G Lh rear light
