goliath IGNITE B2256EF - Attaching Post Ears

HARDWARE NEEDED (ACTUAL SIZE)
15
14
9/16”
TOOLS NEEDED
9/16”
3/8" WASHER
701-50
QTY. 4
36
3/8-16 LOCKNUT
901-28
QTY. 2
42
42
36
24
36
3/8-16 X 5" HHCS, GRADE 5
1B-6485-10
QTY. 2
24

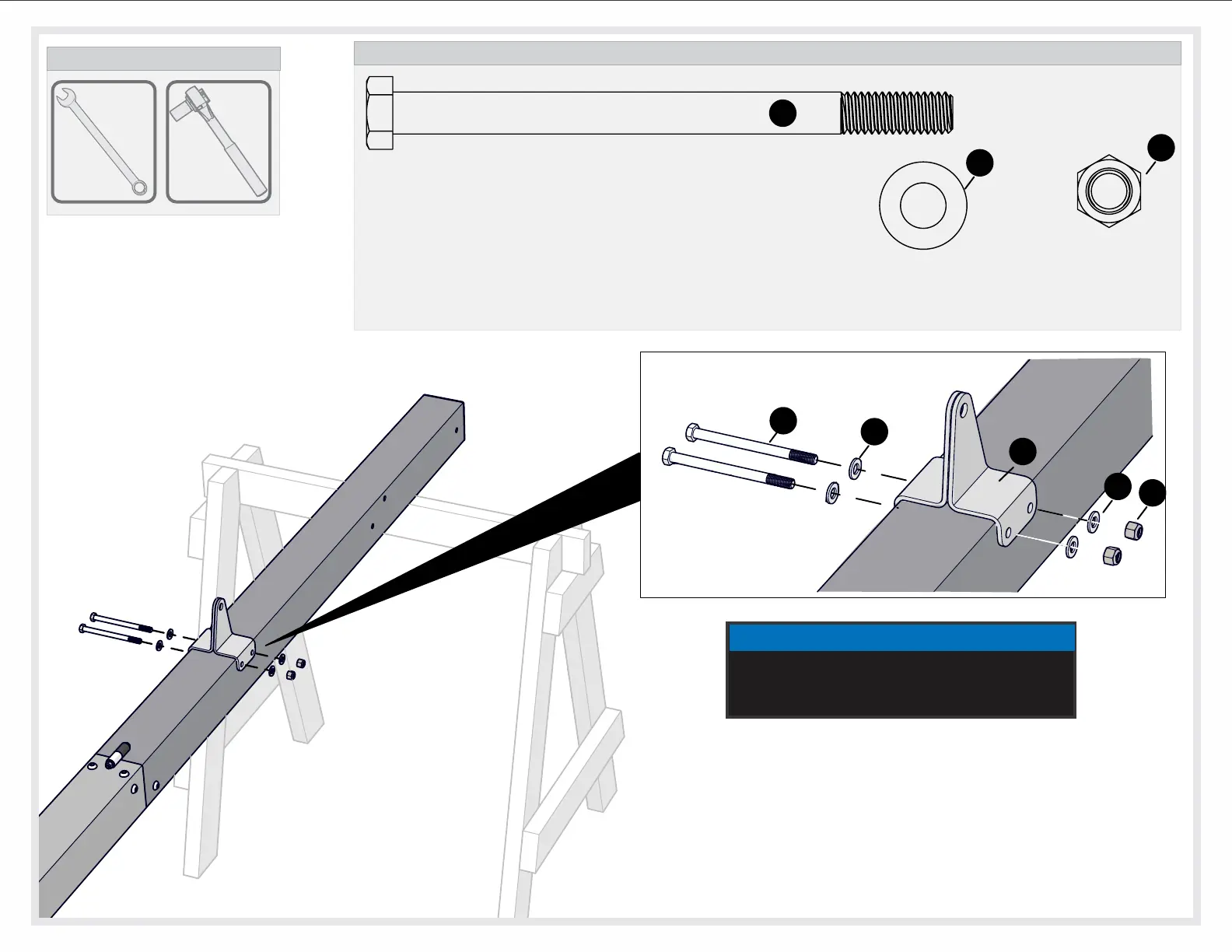

ATTACH POST EARS AS SHOWN. Tighten
hardware about 3/4ths of the way. Leave loose
enough to attach Actuator on page 18.
NOTE
