21
HARDWARE NEEDED (ACTUAL SIZE)
3/8-16 LOCKNUT
901-28
QTY. 1
42
3/8 - 16 X 7.5 " HHCS, Grade 5
1B-6483-10
QTY. 1
21
STOP SPACER
8S-6657-00
QTY. 2
39
21
39
42
39

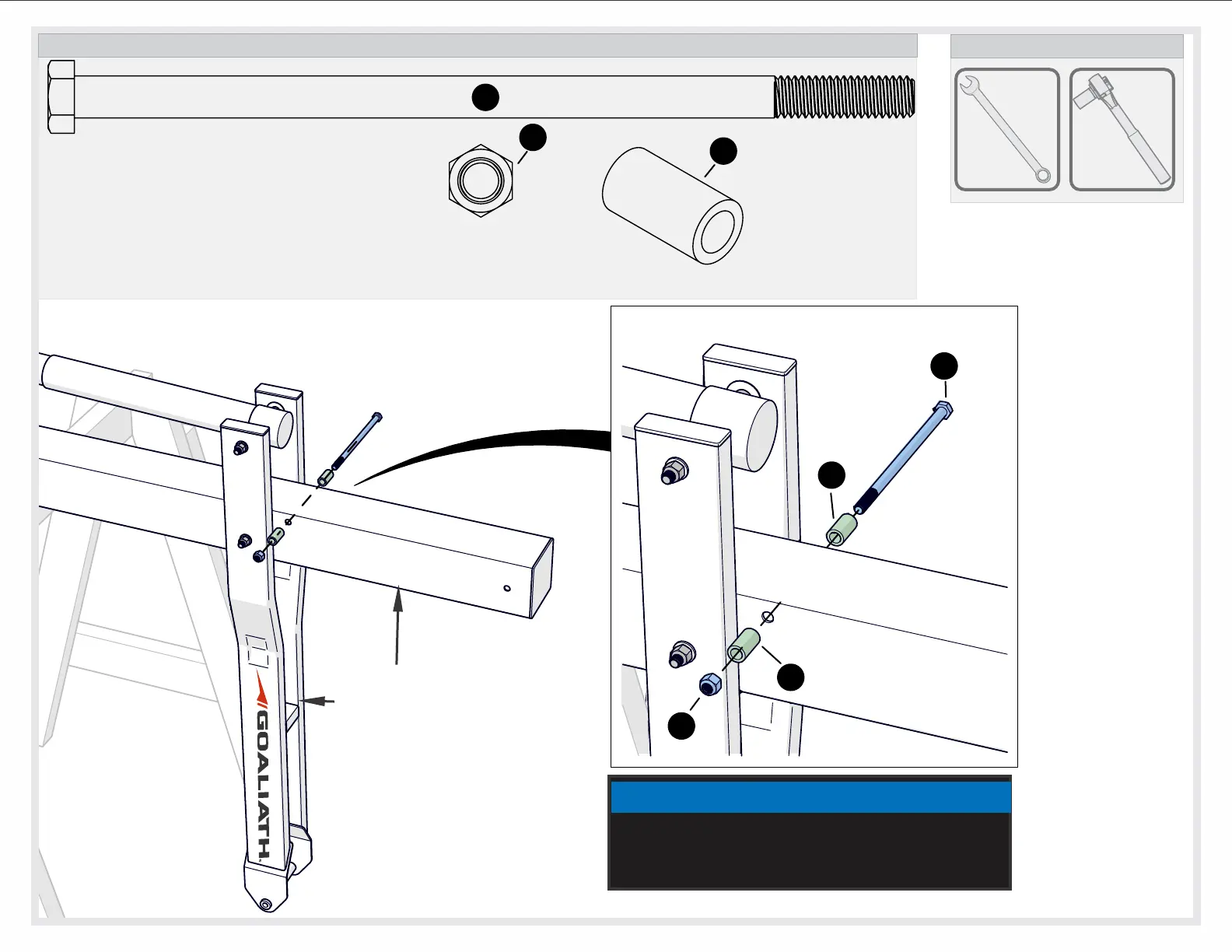

Attach stop spacers in the hole next to the
upper arm as shown. Tighten until tight.
NOTE
Turn the actuator until the
lower arms are perpendicular
to the pole as shown. This
will ease the assembly when
attaching the backboard in
later steps.
9/16”
TOOLS NEEDED
9/16”
To Next Page
