22
HARDWARE NEEDED (ACTUAL SIZE)
3/8-16 LOCKNUT
901-28
QTY. 1
42
3/8 - 16 X 7.5 " HHCS, Grade 5
1B-6483-10
QTY. 1
21
3M-6269-00
QTY. 2
40
3/8" WASHER
701-50
QTY. 2
36
9/16”
TOOLS NEEDED
9/16”
21
40
40
42
36
36
LONG LEG
SHORT
LEG
Thick Nylon
Spacers
NYLON SPACER, 0.4 ID X .78 OD X .25 THICK

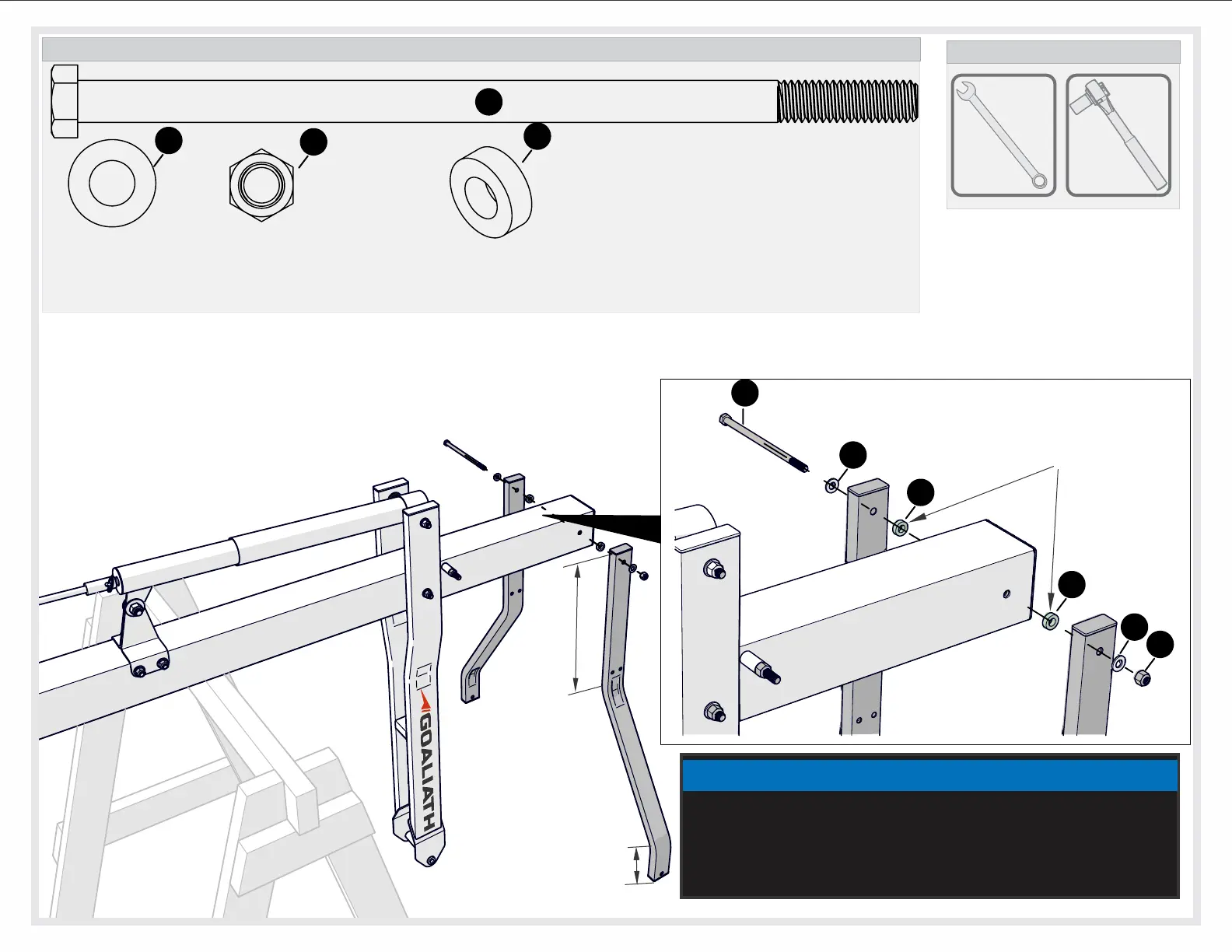

Attach upper arms as shown, the long leg of upper arm
attaches to pole, bolt (#21) can be snug tightened as it is a
pivot point. Make sure the nylon spacers (#40) have been
installed between the arm and the pole as the detail shows.
NOTE
To Next Page
