goliath IGNITE B2256EF - Board Arm Brace Attachment

HARDWARE NEEDED (ACTUAL SIZE)
23
5/16-18 X 1.75 HHCS, ZINC
1B-7190-00
QTY. 4
5/16" WASHER
2B-6024-00
QTY. 8
37
5/16-18 NUT NYLOK ZINC
2B-6009-02
QTY. 4
43
43
37
37
26
1/2”
TOOLS NEEDED
1/2”
26

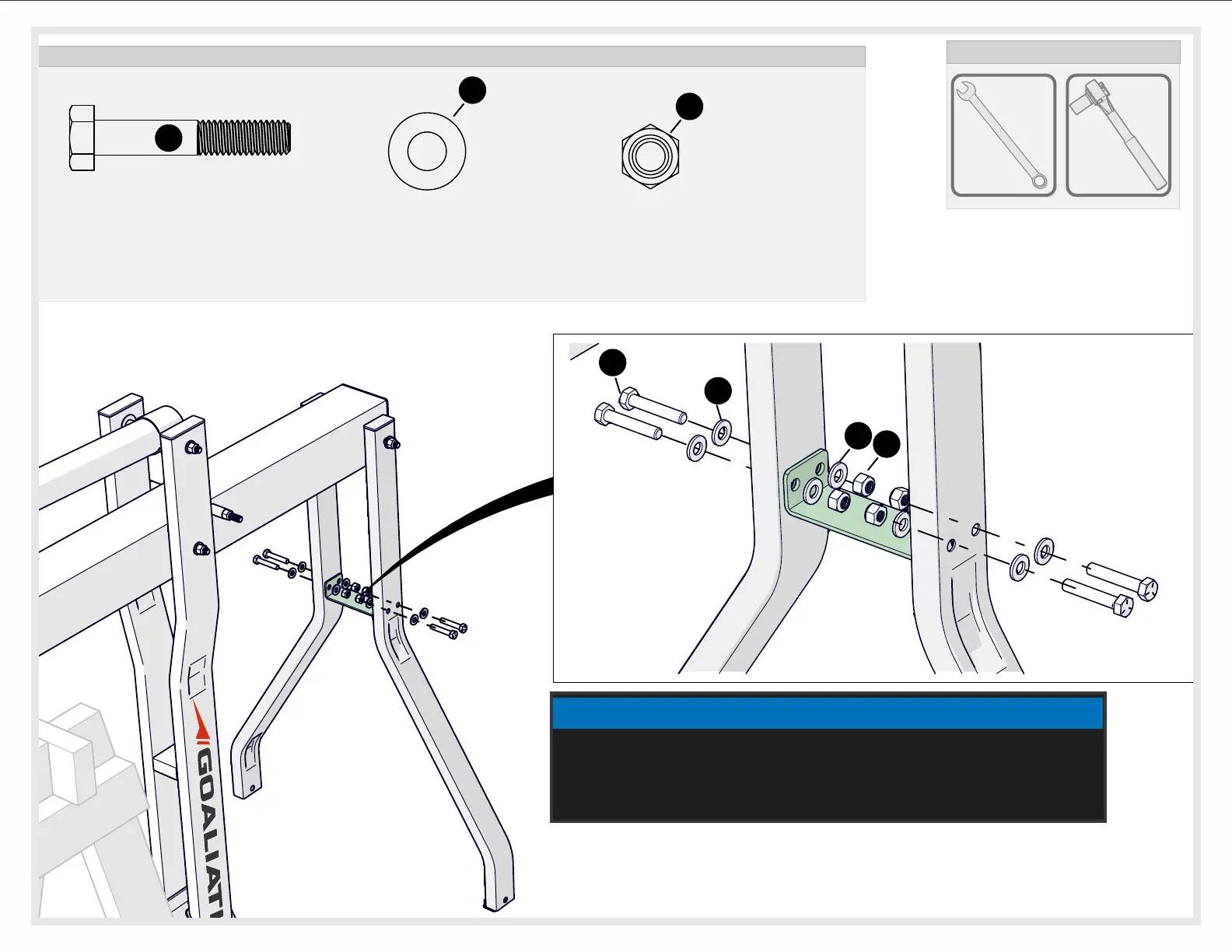

Attach Board arm brace as shown but hand tighten hardware
only. This will make it easier when attaching the Backboard.
You will tighten this after the backboard is installed.
NOTE
