ATTACHING BACKBOARD TO BOARD ARMS REQUIRES
AT LEAST FOUR CAPABLE ADULTS.
HANDLE BACKBOARD WITH CARE, IT IS A GLASS
PRODUCT. ALWAYS WEAR SAFETY GLASSES AND
GLOVES WHEN HANDLING GLASS.
27

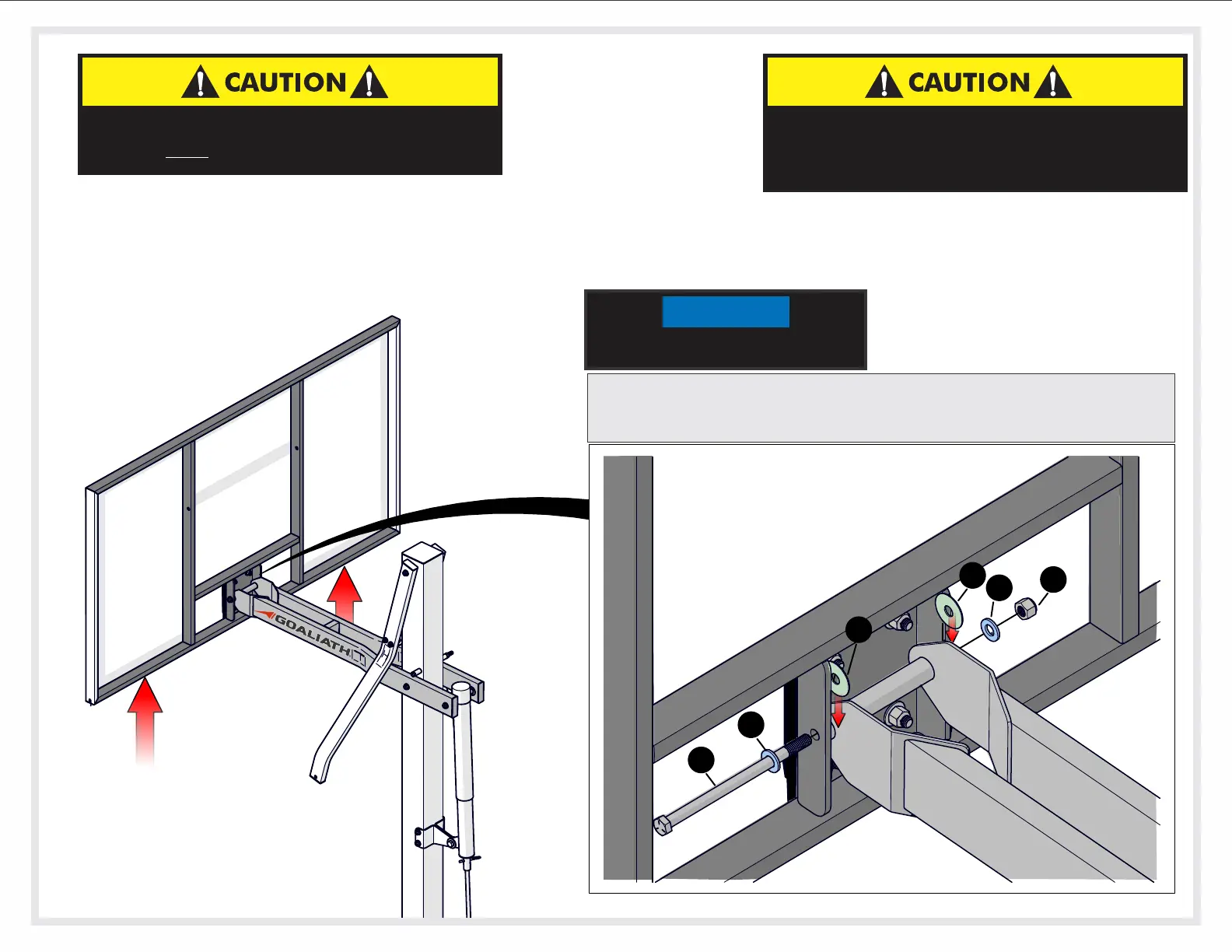

5. With at least four capable adults, raise the backboard assembly up and have the
fifth person attach lower board arm 2 to rim support as shown in Detail B.
HELPFUL HINT:
To secure item #34 (3M-6883-00) Nylon Washer in position for assembly use
several small strips of tape, drops of hot melt glue or other adhesive.
Make sure Nylon Washer is positioned correctly before securing.
34
34
23
36
42
36
DO NOT OVER TIGHTEN THESE BOLTS. THIS
IS A PIVOT POINT, SNUG IS TIGHT ENOUGH.
NOTE
To Next Page
